Small Breaking Stone Crusher Machine , Jaw Crusher Machine With ISO CE Approval

Small Breaking Stone Crusher Machine , Jaw Crusher Machine With ISO CE Approval

  • High Light

    jaw stone crusher

    ,

    rock crusher machine

  • Condition
    New
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Warranty
    12 Months
  • Capacity
    180-10000t/h
  • Material
    Lead And Zinc Mineral Raw Material
  • Motor Type
    AC Motor
  • Spare Parts
    Supply All Using Life
  • Voltage
    220V/380V/440
  • Product Name
    Small Breaking Stone Jaw Crusher Machine
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    According to different models
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Export standard container or as customers' requirements
  • Delivery Time
    30 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set / Sets per Month

Small Breaking Stone Crusher Machine , Jaw Crusher Machine With ISO CE Approval

Jaw crusher,stone crusher plant equipment introduction



Jaw crusher is a large kind of complex tilting crushing equipment, and it is mainly used for crushing medium hard ore and rock whose compression strength is no more than 250MPa, and with the quality of large crushing ratio, high yield, uniform particle size, reliable, easy to maintain and low operating cost, it is widely used in mining, metallurgy, construction, roads, railways, water conservancy, chemical industry and etc.



PE series jaw crusher is used for coarse crushing different kinds of ores and rocks, and PEX series jaw crusher is used for intermediate and fine crushing.

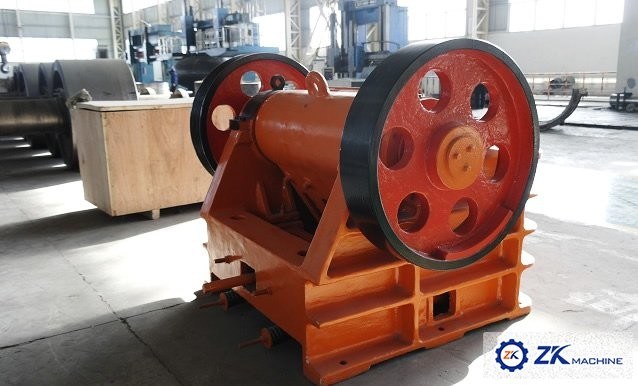

Small Breaking Stone Crusher Machine , Jaw Crusher Machine With ISO CE Approval 0

Application of Jaw Crusher,Stone Crusher:

Be applied in large block of material crushing in mining industry, metallurgical industry, construction industry, highway, railway, water, and chemical industry.



Structure

PE, PEX series jaw crusher is mainly consist of frame, eccentric shaft, pulley, side guard plate, bracket, discharging gate adjusting device, fixed jaw plate, movable jaw plate, safety device and etc. And its main structural features are as following:

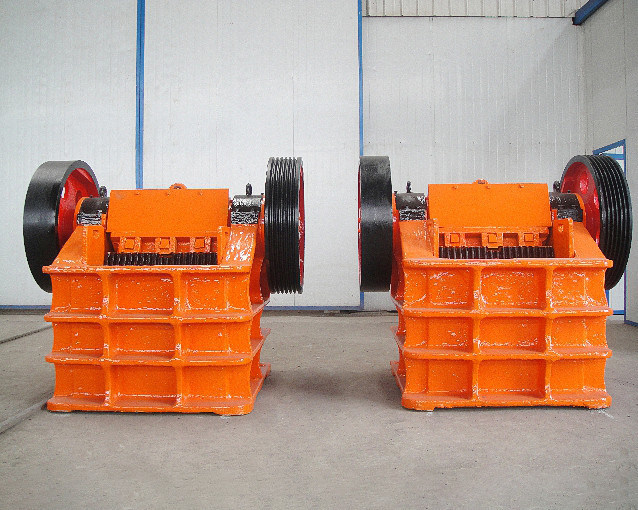

Small Breaking Stone Crusher Machine , Jaw Crusher Machine With ISO CE Approval 1



1. Frame

It mainly is consist of side panels, front box assembly, rear box, and etc;



2. Eccentric Shaft Rotating Part

It mainly is consist of movable jaw, eccentric shaft, bearings, bearing pedestal, belt pulleys and etc., and it is the major part for dynamic transmission;



3. Crushing Cavity Working Part

It mainly is consist of fixed jaw plate, movable jaw plate, side liners, guard board and etc., and it is the working parts for breaking materials;



4. Safety Device

It is consist of bracket, bracket base, spring, spring rod and etc., and it is the parts that play a security role during crusher works in an abnormal condition.



5. Discharging Gate Adjusting Device

It is mainly consist of adjusting fixed ramp, adjusting sliding ramp, top wire bolt, slide locking lever, and etc., it is used to adjust the size of the discharging gate and to control the discharging particle size.

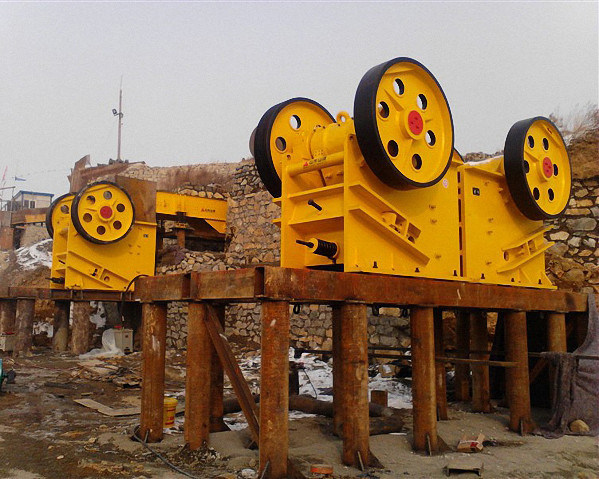

Small Breaking Stone Crusher Machine , Jaw Crusher Machine With ISO CE Approval 2



Stone Crusher OUR ADVANTAGE

1. Jaw plates is made of high strength steel, one time shape casting, and with characteristics of wear resistant, compression resistance, and long life;

2. High productivity, large crushing ratio, uniform product size, low power consumption

3. Gasketed discharging adjusting device, reliable and convenient, large adjustment range, equipment flexibility is increased.

4. Simple structure, reliable operation and low operating costs, safe lubrication system, and easy parts replacing.

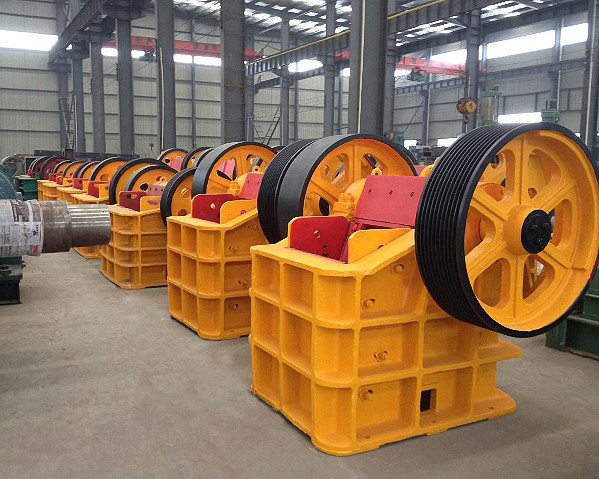

Small Breaking Stone Crusher Machine , Jaw Crusher Machine With ISO CE Approval 3



Stone Crusher Specifications

Model Inlet Size(mm) Max feeding size(mm) Adjusting Range of Discharging outlet(mm) Capacity(m³/h) Power(kW) Weight(t)

PE-250×400 250×400 210 20~60 3~13 15 2.8
PE-400×600 400×600 340 40~100 10~35 30 6.5
PE-500×750 500×750 425 50~100 25~60 55 10.6
PE-600×900 600×900 500 65~180 30~85 55~75 15.5
PE-750×1060 750×1060 630 80~180 72~150 90~110 28
PE-800×1060 800×1060 680 100~200 85~143 90~110 30
PE-870×1060 870×1060 750 170~270 145~235 90~110 30.5
PE-900×1060 900×1060 780 200~290 170~250 90~110 31
PE-900×1200 900×1200 780 95~255 100~240 110~132 49
PE-1000×1200 1000×1200 850 195~280 190~275 110~132 51
PE-1200×1500 1200×1500 1020 150~300 250~500 160 100.9
PEX-150×500 150×500 120 10~40 3~15 11 2.5
PEX-150×750 150×750 120 10~40 5~16 18.5 3.5
PEX-250×750 250×750 210 15~50 8~35 30 5.8
PEX-250×1000 250×1000 210 15~50 13~45 37 6.4
PEX-250×1200 250×1200 210 15~50 13~50 37 7.7
PEX-300×1300 300×1300 250 15~50 20~60 75 11
