Place of Origin:
China
Brand Name:
ZK
Model Number:
PPC32-3-PPC64-8
With high cleaning efficiency, PPC Series Pulse Jet Bag Filter incorporates the advantages of other bag filters as compartmental blow-back, pulse jet cleaning. It overcomes disadvantages of weak cleaning strength of blow-back as well as synchronous working of pulse jet cleaning and filtering, expaning the field of application, it is featured with strong cleaning strength, high effective, long life. It is suitable to the treatment of high concentration dust, simplifying the technical process of dust treatment and reducing investment of device.The company has nine products in this series, with a processing air volume of 6900-35700m³/h, suitable for processing dust concentration less than 200g/m³, and the dust concentration of the purified gas is less than 0.03 g/m³, meeting the environmental emission standards.
| Model | PPC96-4 | PPC96-5 | PPC96-6 | PPC96-7 | PPC96-8 | PPC96-9 | PPC96- 2×5 |
PPC96- 2×6 |
PPC96- 2×7 |
PPC96- 2×8 |
PPC96- 2×9 |
PPC96- 2×10 |
|
| Air volume (m³/h) | 26800 | 33400 | 40100 | 46800 | 53510 | 60100 | 66900 | 80700 | 94100 | 107600 | 121000 | 134500 | |
| Air speed (m/min) | 1.2～2.0(Filtering speed should be determined by different dust collecting location) | ||||||||||||
| Total filtering area (m²) | 372 | 465 | 557 | 650 | 744 | 836 | 929 | 1121 | 1308 | 1494 | 1681 | 1868 | |
| Net filtering area (m²) | 279 | 372 | 465 | 557 | 657 | 744 | 836 | 1028 | 1215 | 1401 | 1588 | 1775 | |
| Qty of bag(pc) | 384 | 480 | 576 | 672 | 768 | 864 | 960 | 1152 | 1344 | 1536 | 1728 | 1920 | |
| Pressure drop (Pa) | 1470～1770 | ||||||||||||
| Negative pressure (Pa) | 5000 | ||||||||||||
| Inlet dust concentration (g/m³) | < 1300 | ||||||||||||
| Outlet dust concentration (mg/m³) | ≤30 | ||||||||||||
| Air cleaning compressed ain | Pressure (MPa) | 0.5～07 | |||||||||||
| Consumption (m³/min) | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 3.4 | 4.2 | 4.8 | 5.4 | 6 | |
| Pulse valve | Qty(pc) | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 14 | 16 | 18 | 20 |
| Size(inch) | 2～1/2” | ||||||||||||
| Lift valve (with cylinder) | Qty(pc) | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 14 | 16 | 18 | 20 |
| Size (mm) | Dia.Of lift valve:Φ725,Dia.Of cylinder:φ100 | ||||||||||||
| Rotary discharger YJD-26 | Outlet:400×400,Rev.speed:45r/min,Power of reducer:2.2kW,Capacity:72.2m³/h 1 set for single row,2 sets for double row. | ||||||||||||
| Screw conveyor | Specification | Dia.:Φ400,Capacity:38m³/h,1 set for single row,2 sets for double row. | |||||||||||
| Reducer | Model:XWD5.5-7-1/59,power:5.5kW | ||||||||||||
| Air slide | If the inlet dust concentration is more than 700g/m³,the bag fiterwith air slide or big size screw conveyor should be selected. | ||||||||||||
| Size and material of bags | Dia.×L:Φ130×2450mm,Gross weight of polyester needle-felt:450g/m²,working temp.:120℃ | ||||||||||||
| Area of insulating layer(m²) | 110 | 120 | 130 | 140 | 150 | 160 | 175 | 210 | 245 | 280 | 315 | 350 | |
| Total weight (approx.)(kg) | 11290 | 13100 | 16070 | 18270 | 20350 | 22940 | 27220 | 32660 | 38100 | 43540 | 48990 | 54430 | |

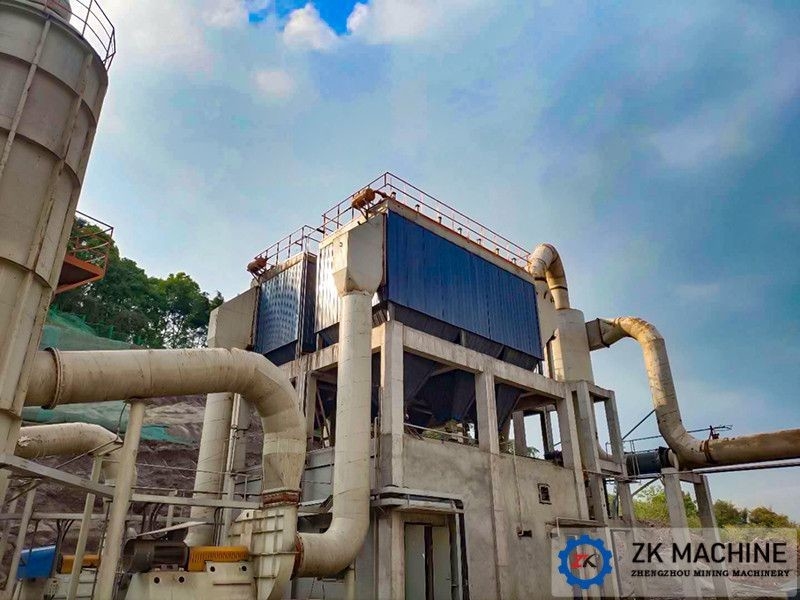

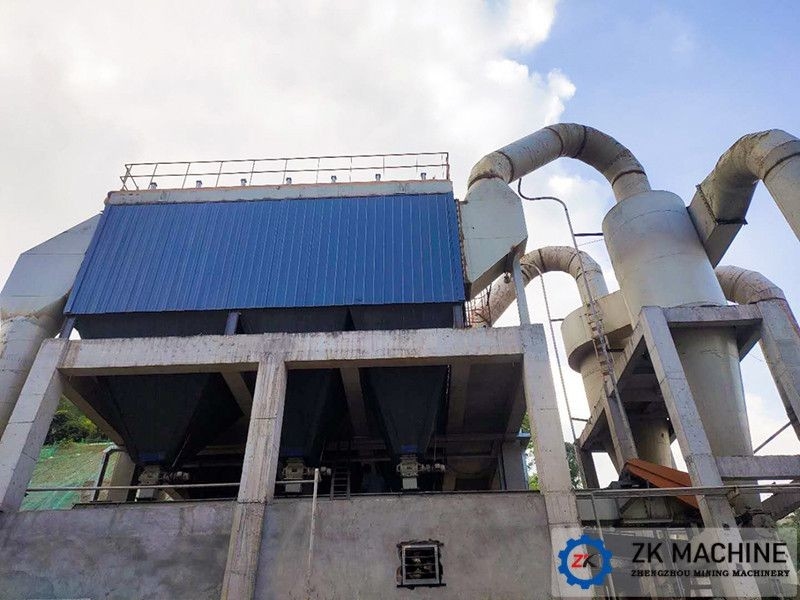

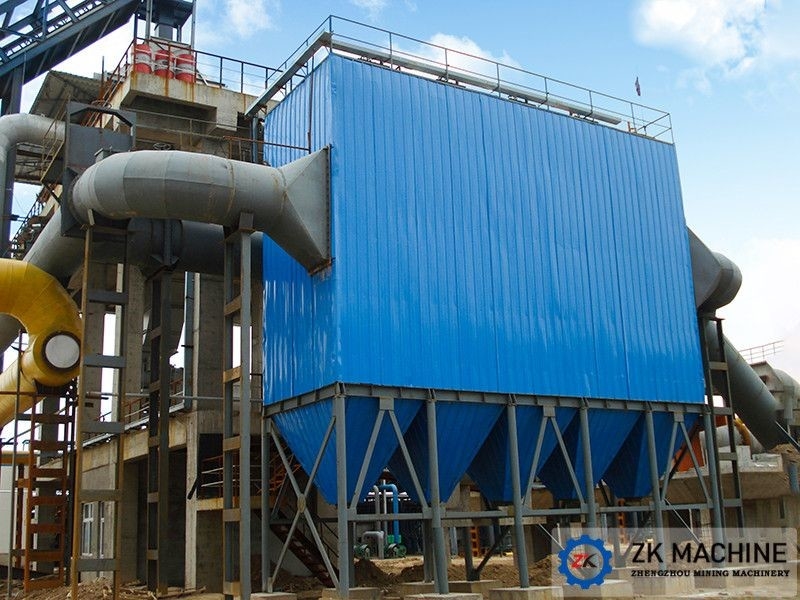

This series of bag filter is widely used in cement, metallurgy, machinery, chemical and refractory industries, especially for dust collectiom system, such as crushing, packaging, warehouse, clinker cooler and various grinding mill in cement plant. In additon, it can be used in dust collection of coal mill. However, in the dust collection of ball mill, anti-explosion equipment should be added and related struture changed.
Customize your ZK Dust Collection Equipment according to your specific needs. Our product, the Cement Plant Bag Filter, comes in models PPC32-3-PPC64-8 made in China, ensuring high-quality standards. All of our products are brand new and in excellent condition, making them perfect for industrial use.
Our Dust Collection Equipment boasts an impressive dust removal efficiency of 99.95%, ensuring that your workplace is clean and free of hazardous particles. The equipment is powered by an AC motor for maximum efficiency and reliability.
With our customization services, you can tailor your Dust Collection Equipment to your specific requirements. Our outlet dust concentration is ≤30 mg/m³, resulting in a cleaner and safer working environment.
Choose ZK for your industrial needs and experience the superior quality of our Cement Plant Bag Filter, made in China Bag Filter.
