Customized PQ Series Pellet Granulator For Slag Clay Iron Powder

Customized PQ Series Pellet Granulator For Slag Clay Iron Powder

Customized PQ Series Pellet Granulator

Slag Clay Iron Powder Pellet Granulator

Iron Powder Pellet Granulator

Place of Origin:

China

Brand Name:

ZK

Model Number:

ZKL

Contact Us
Request A Quote
Product Details
Color:
Customized
Warranty:
1 Year
Dia:
1000-4200(mm)
Business Scope:
Design, Manufacturer, Onsite Guidance
Equipment Condition:
New
Voltage:
380V
After Warranty Service:
Online Support
Powder(kW):
15-155
Payment & Shipping Terms
Product Description

Product Description:

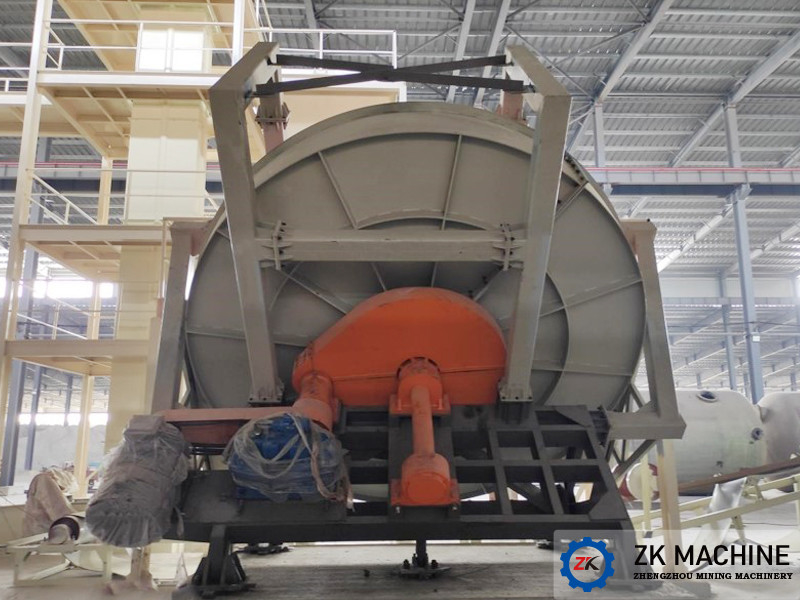

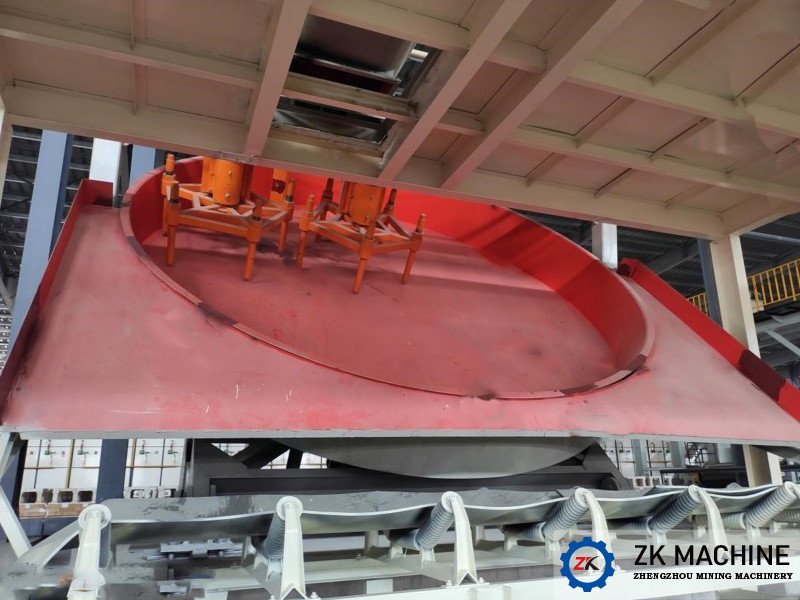

ZK disc granulator is divided into unpowered scraper disc granulator (PQW) and powered scraper disc granulator (PQ). The two kinds of disc granulator are all have the feature of simple structure, convenient operation, the moisture of pellet can be easily control and high hardness. The disc granulator adopts massive structure, the disc bottom reinforced by multiple radiation steel plate. The motor and reducer adopt flexible belt driving, so the life time is increased by the smooth start and low impact.

Application of Disc Granulator:


The disc granulator is the main equipment for pelletizing by powder material and widely used in cement industry, steel industry and fertilizer industry.

Working Principle of Disc Granulator:


The uniform particle core was made by raw material powder, then sent into the disc, after that the core go along a parabola by centrifugal force, friction force and gravity in the disc, the moisture will go out of the core surface in the rolling process, because of the cohesiveness and plasticity, the core will become bigger with raw powder in the process. The pellet has well intensity because of the material cohesiveness and the natural volatilization of surface liquid film. When the disc inclination, edge height, rotate speed and moisture all fixed, the pellets with different diameter will rolling down from disc edge by different angle cause of different gravity, then discharging from the disc edge by rotating inclined disc body.





Features:

  • Product Name: Granulation Equipment
  • Voltage: 380V
  • Color: Customized
  • Warranty: 1 Year
  • Service: Design, Manufacturing, Sales
  • Advantage: High Degree Of Automation
  • Used in: Phosphate Ore, Slag Powder, Clay Powder Pelletization Process
  • Type: Industrial Disc Granulator
  • Includes: Granulation Production Line


Technical Parameters:

Model Dia(mm) Height(mm) Slope(°) Speed(r/min) Main Drive Motor Power (kW) Scraper Motor Power (kW) Weight(t)
PQ10 1000 250 35-55 2.5-25 3 1.1×1 0.6
PQ12 1200 250 35-55 2.5-25 4 1.1×1 0.8
PQ16 1600 300 35-55 2-19 7.5 1.5×1 1.4
PQ20 2000 320 35-55 1.5-15 7.5 2.2×1 2.2
PQ22 2200 350 35-55 1.4-14 15 2.2×1 3.8
PQ25 2500 350 45-55 1.2-12 15 2.2×1 5
PQ28 2800 400 45-55 1.2-12 18.5 2.2×1 5.8
PQ32 3200 400 45-55 1.2-12 22 3×1 8.5
PQ36 3600 550 45-55 1-10 30 3×2 9.8
PQ42 4200 550 45-55 1-10 37 4×2 12.5
PQ45 4500 550 45-55 1-9 45 4×2 13.5
PQ50 5000 650 43-53 6-9 55 5.5×2 18
PQ55 5500 650 43-53 5.7-8.5 75 5.5×2 30.2
PQ60 6000 650 43-53 5.7-8.5 90 5.5×2 32.8
PQ70 7000 650 43-53 5.1-7.9 132 5.5×3 45.9
PQ75 7500 650 43-53 5.1-7.9 160 5.5×3 50

Our Factory Overview:
