Place of Origin:
China
Brand Name:
ZK
Certification:
CE ISO Certification
Model Number:
800×600, 900×1200, 1300×1500
Intermittent Ball Mill Ceramic Batch Ball Mill Grinder Small Batch Production
Caramic Ball Mill Introduction:

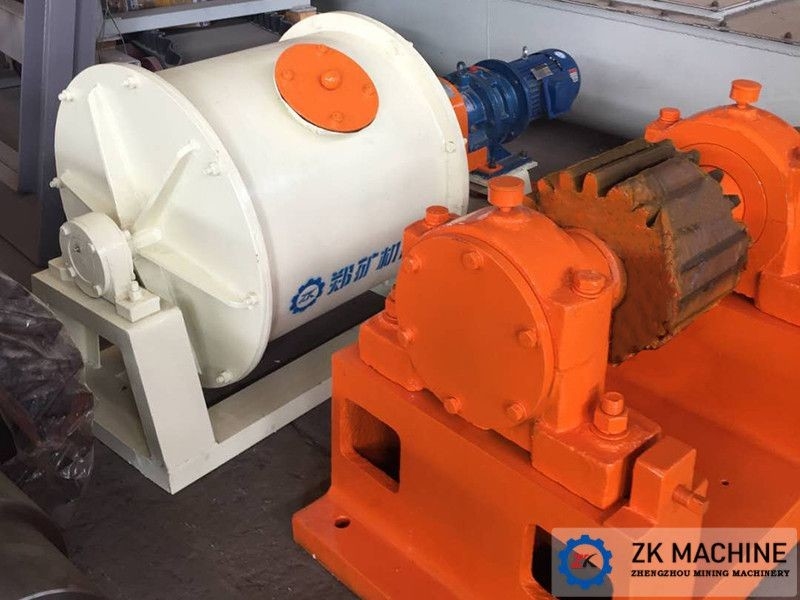

Ceramic ball mill is a ball mill with lining plate is made of ceramics. It has a small capacity and is generally suitable for small batch production in the trial production stage.
Caramic Ball Mill Application:
Mainly used for mixing and grinding of materials, uniform fineness of products, energy saving power.
Ceramic Ball Mill Features:
1. The type of liner can be changed: according to the material produced, different liner can be used to meet different needs
2. Wide range of application: In addition to grinding materials, it can also be used for medium, fine and ultra-fine crushing in large stone factories.
3. Good energy saving: The ceramic ball mill can be started from decompression during work, reducing the starting current, so it is more energy-saving
4. The particle size of the product is uniform: because there is a grating plate at the discharge port to control the particle size of the discharged material, the content of large materials in the product is small, and the material particles that meet the requirements are more.
Caramic Ball Mill Technical Data:
| Model | Loading capacity (tons/time) | Cylinder rotating speed (r/min) | Reference power (kW) |
|---|---|---|---|
| 800 × 600 | 0.075 | 42 | 3 |
| 900 × 1200 | 0.2 | 38.5 | 5.5 |
| 1300 × 1500 | 0.5 | 33 | 7.5 |
Caramic Ball Mill Project Cases:
Mexico Φ 305×350mm Lab Ball Mill Project Capacity:10-20kg/batch
Iran Zircon Sand Grinding Ball Mills Capacity:400kg/h
Φ305*350mm Lab Ball Mill Equipment for Estonia Capacity:15~20kg/batch
Laboratory 600*700 Ball Mill Project in Guangzhou Capacity:0-50kg/h
