Name: Advanced Preheater-Rotary Kiln-Vertical Cooler Energy-Saving Process Quick Lime Plant Project
Brand: ZK CORP
SKU: ZK CORP
Rating: 4.6 (103 reviews)

Home > products > Active Lime Production Line >

Advanced Preheater-Rotary Kiln-Vertical Cooler Energy-Saving Process Quick Lime Plant Project

Place of Origin:

China

Brand Name:

ZK CORP

Request A Quote

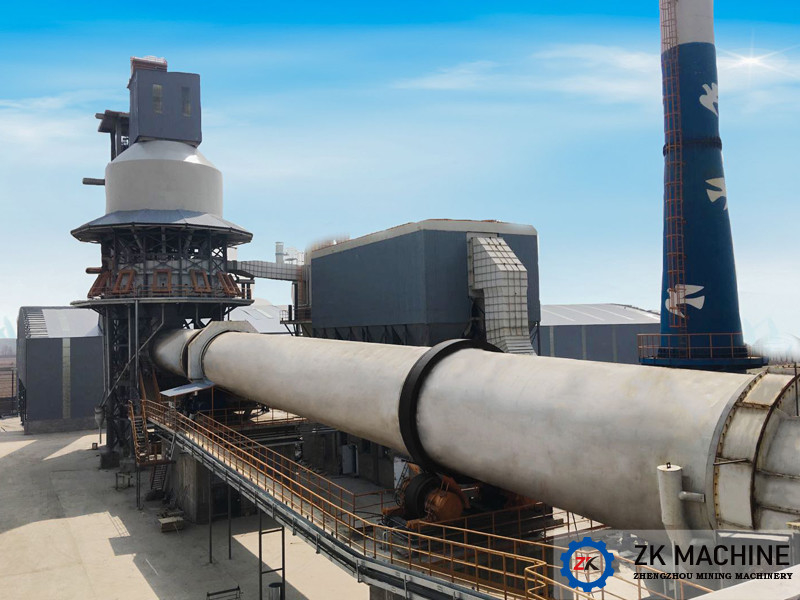

Advanced Preheater-Rotary Kiln-Vertical Cooler Energy-Saving Process Quick Lime Plant Project

Product Details

Raw Material:

Limestone

Project Scale:

50-1000TPD

Lime Activity:

≥360mL

Solution:

Customized

Control System:

PLC Automatic Control System

Equipment Condition:

New

Preheater Height:

8-20m

Energy Consumption:

High Efficiency, Low Energy Consumption

Kiln Type:

Rotary Kiln, Vertical Kiln

Process:

Rotary Kiln+preheater+cooler

Production Process:

Crushing, Preheating, Calcination, Cooling, Etc.

Technology:

Preheater, Rotary Kiln, Vertical Cooler

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

New Design 600 T/D Active Lime Production Line Equipment with Preheater

Get Best Price

Energy Saving Quick Lime Production Line with Customized Design

Get Best Price

Industrial Grade Hydrated Lime Production Line Equipment for Water Treatment

Get Best Price

Energy Saving Quick Lime Production Line with High Lime Activeness

Get Best Price

86-18037866379

ec09@zkcorp.com

86-371-55902858

Contact Now

Product Description

Advanced Preheater-Rotary Kiln-Vertical Cooler Energy-Saving Process Quick Lime Plant Project

Overview of Quick Lime Production
Active lime is produced from limestone, dolomite, chalk and other minerals with high calcium carbonate content by the calcination process under the temperature of 1000-1100 ° C. There are various processes for the active lime production, mainly including: Advanced 'Preheater-Rotary kiln-Vertical cooler' energy-saving process, Traditional 'long rotary lime kiln' process, Mixed buring vertical kiln process, Gas-ﬁred or oil-ﬁred vertical kiln process. The selection of the active lime process is effected by many factors, such as : the activity requirement, the fuel, the limestone sizes, production capacity, environmental-protection requirement.

We will select the most workable and eﬃcient and economical solution based o the clients' speciﬁc requirement and conditions.

Production Process

1. Energy Saving Rotary Lime Kiln Process

Rotary kiln is one kind of furnace which is widely used for calcined active lime production in the world. It is also widely used in many industries such as construction materials, metallurgy, chemical and environmental protection. The energy-saving rotary lime kiln has the advanced structure and stable operation. It adopts the vertical preheater with low pressure loss which can effectively improve the preheating effects. The raw materials’ decomposition rate in the vertical preheater can reach to 30% before entering into the rotary kiln. It is also suitable for different fuels including pulverized solid fuel, liquid fuel and gas fuel. The final lime products have high activity. This kind of rotary kiln already have been widely used in the steel industry and chemical industry.

2. Traditional Rotary Lime Kiln Process

The long rotary lime kiln has the characteristics of simple structure and stable operation. It increases the length of the rotary kiln cylinder to improve the preheating effect, and after preheating, the limestone is entering into the calcination zone for decomposition; The limestone feeding size can be 10 ~20 mm, 20~40 mm. It can use various fuels including pulverized solid fuel, liquid fuel and gas fuel. The final lime or dolime product has relatively higher activity. This kind of rotary kiln is suitable for middle & small production lines, and is suitable for the lime production with limestone with small sizes or lower heat strength.

3. Mixed Burning Vertical Lime Kiln Process

The qualified raw materials and solid fuels are mixed uniformly according to a certain proportion and then sent to the vertical kiln through a single bucket elevator for calcination. After calcination, the final lime products are discharged from the bottom of the vertical kiln through a discharge device to the conveyor, and the conveyor sends the final lime products to the storage silo. The hot flue gas generated by calcination will firstly go into the dust collecting system, and then the clean flue gas will be emitted through chimney to the atmosphere.

Production Process

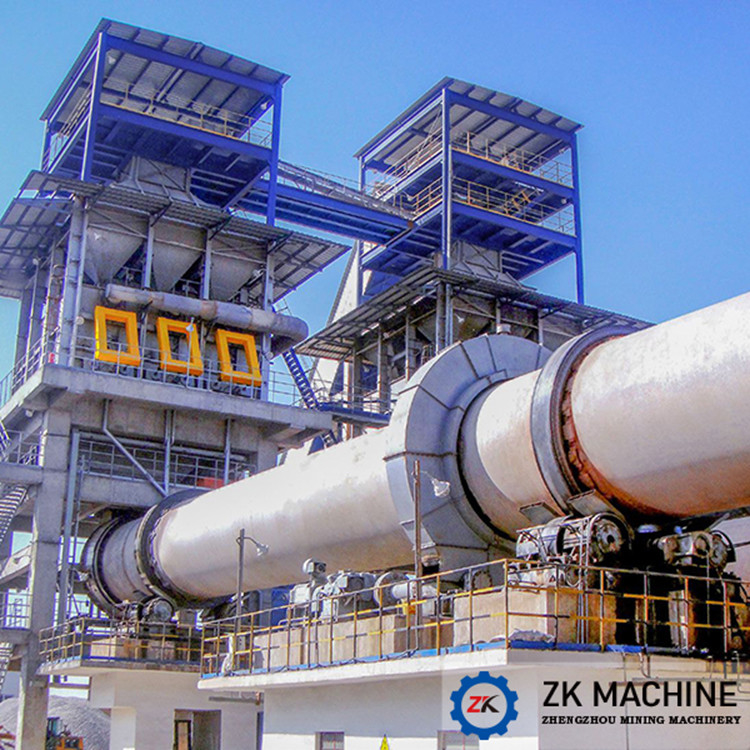

Advanced Preheater-Rotary Kiln-Vertical Cooler Energy-Saving Process Quick Lime Plant Project 2

Our Lime Plant Project Brief Description:

Russia 150t/d Lime Production Line Project
Iran 200T/D Quick Lime Calcination Plant
Mud From Sugar Plant Regeneration Project in UAE
50,000 t/a Active Lime Project in Congo, Africa
100,000 t/a Active Calcium Oxide Production Line in Shouyang, Shanxi
1.9x30m Lime Kiln for Sugar Residue Recovery Project in Bangladesh
100TPD Shaft kiln For Quicklime Plant in North Sudan
50tpd Quick Lime Plant in Iran
Ningxia Baota Union Active Lime Calcination Project
200tpd Quick Lime Plant in Iran

Our Factory Picture:

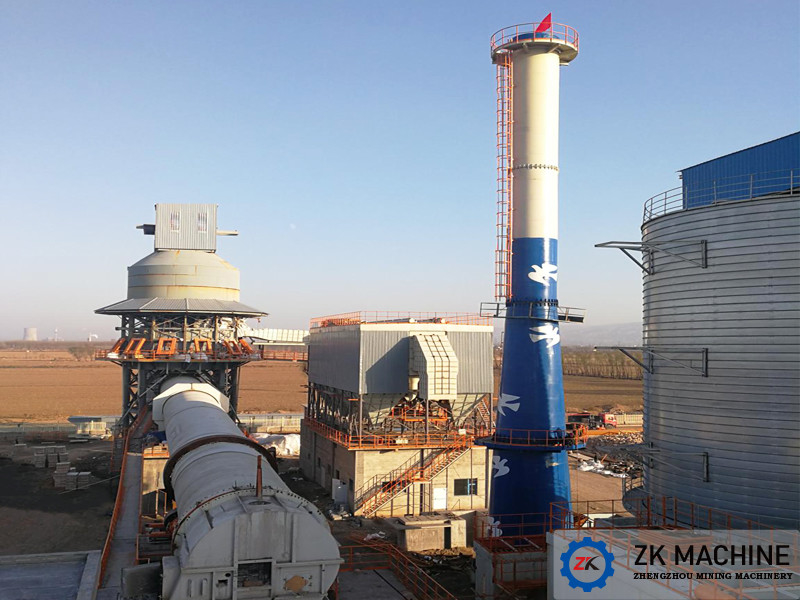

Advanced Preheater-Rotary Kiln-Vertical Cooler Energy-Saving Process Quick Lime Plant Project 3

Processing Equipment

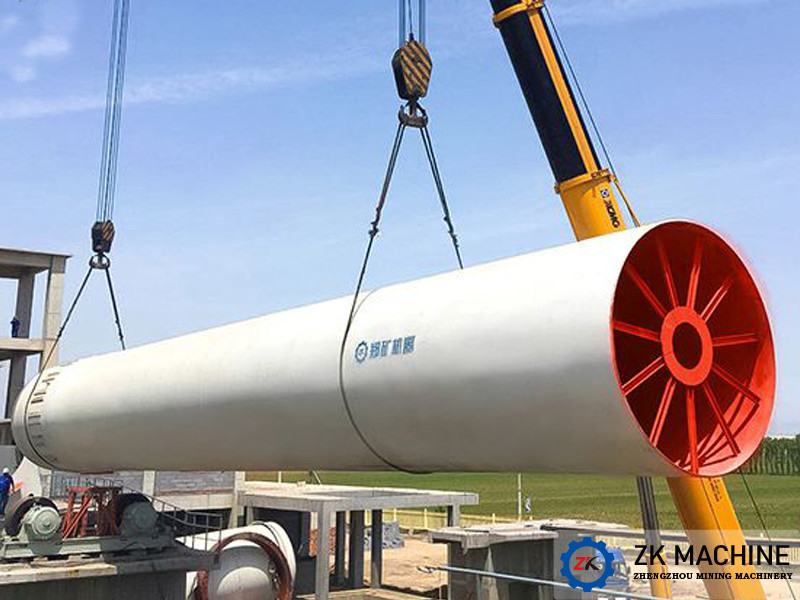

Advanced Preheater-Rotary Kiln-Vertical Cooler Energy-Saving Process Quick Lime Plant Project 4

Our Workshop

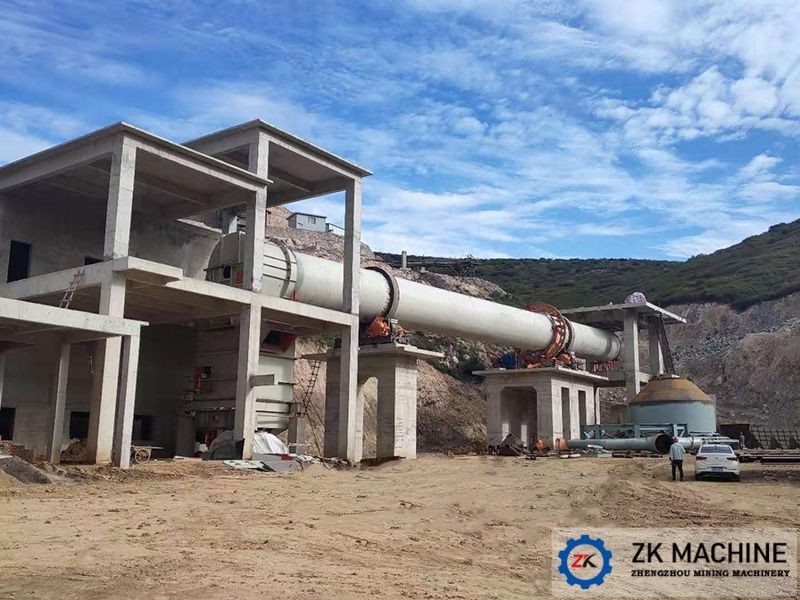

Advanced Preheater-Rotary Kiln-Vertical Cooler Energy-Saving Process Quick Lime Plant Project 5

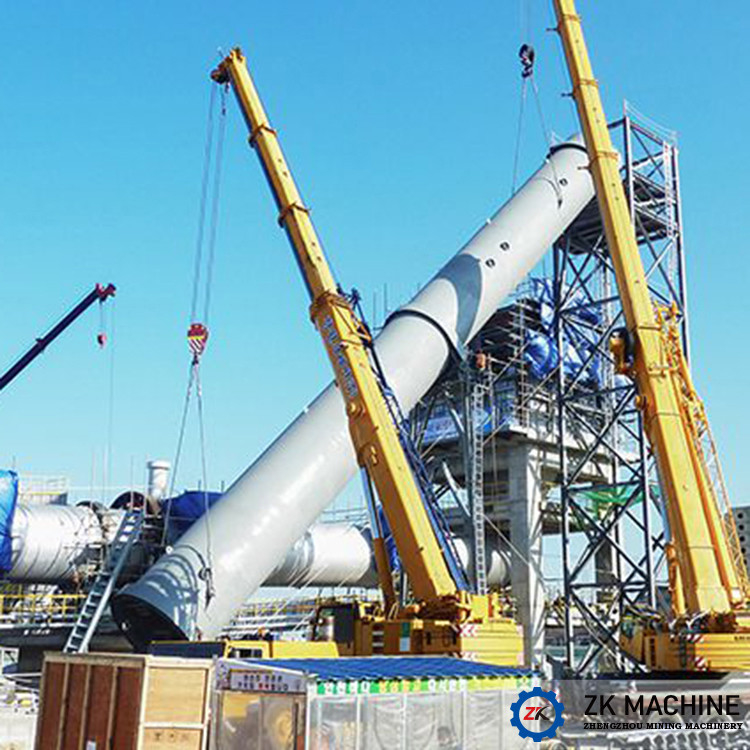

Advanced Preheater-Rotary Kiln-Vertical Cooler Energy-Saving Process Quick Lime Plant Project 6
