New Design Coal Gangue Calcination Process Calcined Kaolin Rotary Kiln Project
Introduction of Kaolin Rotary kiln:
Kaolin rotary kiln of Henan ZK Corp produced has 11 models according to the specifications and dimensions of the cyclinder, ranging from Ø1.6×32m-Ø4×80m. The diameter of the cyclinder is above 2.2m (including 2.2m) with auxiliary transmission, and the support is changed from three groups to four groups when the diameter of cyclinder is above 3.0m (including 3.0m). The kiln speed is 0.58-2.85r/min, the slope is 3.5-4.0%, and the supporting main motor power is 18.5KW-355KW, which can meet the calcination demand of 2t/h-20t/h kaolin mineral products.
Kaolin Rotary kiln Application:
Kaolin rotary kiln produced by Henan ZK Corp ranges from Ø1.6×32m-Ø4×80m.
The kiln speed is 0.58-2.85r/min, the slope is 3.5-4.0%, and the supporting main motor power is 18.5KW-355KW.
It can meet the calcination demand of 2t/h-20t/h kaolin mineral products.
Outstanding Advantages of Kaolin Rotary Kiln:
1. Kaolin rotary kiln has simple external structure and reasonable internal structure, which is easy to install, operate and maintain;
2. The cylinder inside the kiln runs very uniformly, with low heat energy consumption, low power consumption and low failure rate, which not only effectively realizes the recycling of heat energy, but also reduces production costs;
3. The sealing inside the kiln is relatively reasonable, effectively preventing the entry of foreign matter and cold air from the outside, and at the same time reducing the spillage of dust, reducing dust pollution and improving the production environment;
4. The equipment is equipped with an automatic cooling device. The calcined kaolin will automatically enter the cooling device to realize automatic cooling, which can effectively improve the recycling rate of kaolin materials and increase product output.
Specifications:
| Spec | Output(t/h) | Rev(rpm) | Pedestal Number | Reducer | Electricmotor | Powe(kW) |
| Model | ||||||
| Ф1.6x32m | 2.0 | 0.58-2.85 | 3 | ZQ75-50 | YCT250-4A | 18.5 |
| Ф1.6/1.9x36m | 2.5-3.0 | 0.53-1.59 | 3 | ZQ110-7 | YCT250-4B | 22 |
| Ф1.9x39m | 3.0-3.4 | 0.53-1.59 | 3 | ZQ125-7 | YCT315-4A | 37 |
| Ф2.2x45m | 4.0-5.0 | 0.21-1.64 | 3 | hostZS125-5 | hostYCT315-4B | 45 |
| assistZQ40-40 | assistY112M-4 | 4 | ||||
| Ф3.2x50m | 1000 | 0.79-3.94 | 3 | hostNZS955-28VBR | hostZSN4-280-21B | 160 |
| assistZL50-9-2 | assistY180L-6 | 15 | ||||
| Ф3.2x64m | 8.0-10.0 | 0.40-1.50 | 4 | hostZL130-16 | hostZSN-280-11B | 190 |
| assistZL50-10 | assistY180L-4 | 22 | ||||
| Ф3.2x118m | 17.0 | 0.29-1.46 | 6 | hostJH500C-SW-71 | hostZ4-250-31 | 110 |
| assistZL50-8-1 | assistY160L-6 | 11 | ||||
| Ф3.3x50m | 1000 | 0.36-3.57 | 3 | hostNZS995-40-VBL | hostZSN4-280-21B | 160 |
| assist NZS352-31.5 | assistY160M-4 | 11 | ||||
| Ф3.8x58m | 20.8 | 0.4-1.5 | 3 | hostZSY500-40 | hostzsn-315-072 | 250 |
| assistZL50-14 | assisty180L-4 | 22 | ||||
| Ф4.0x60m | 25 | 0.4-1.5 | 3 | hostZSY630-35.5 | hostZSN4-355-092 | 315 |
| assistZL65-16 | assistY200L-4 | 30 | ||||
| Ф4.0x80m | 29.17 | 0316-1.528 | 4 | hostJH560C-SW-71 | hostZSN4-280-11B | 160 |
| assistZL50-9-1 | assistY180L-6 | 15 | ||||
| Ф4.0/3.5/4.0x150m | 30.4 | 0.34-1.71 | 6 | hostJH560C-SW-56-1/2 | hostZSN4-280-11B | 2X125 |
| assistZL50-10-1/2 | assistY160L-6 | 2X11 | ||||
| Ф4.0x150m | 33.3 | 0.51-1.53 | 6 | hostJH560C-SW-63-1/2 | hostZSN4-280-11B | 2X125 |
| assistZL60-12-1/2 | assistY160L-6 | 2X11 | ||||
| Ф4.0x150m | 30.0-34.0 | 0.40-1.59 | 6 | hostJH800C-SW-90 | hostZSN4-355-092 | 280 |
| assistJH280-SW-40 | assistY200L-4 | 30 | ||||
| Ф4.7x72m | 4000 | 0.35-3.50 | 3 | hostZSY710-28-V | hostZ4-400-32 | 550 |
| assistZL60-7-2 | assistY200L-4 | 30 |
Our Project Cases of Kaolin Rotary Kiln

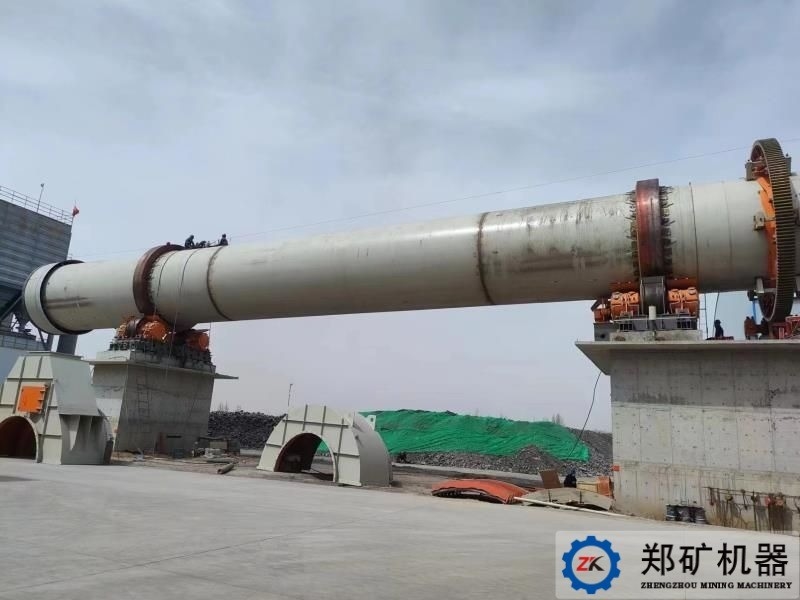

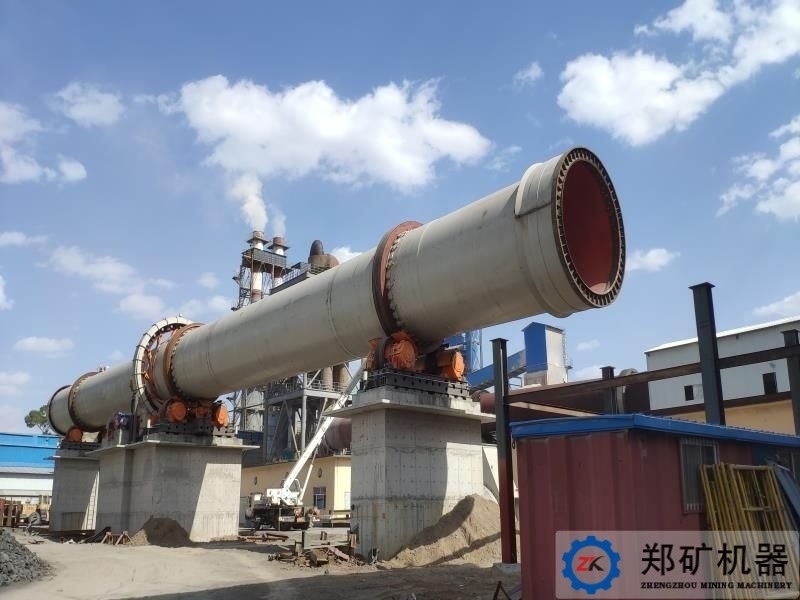

This project is a calcined kaolin project with an annual output of 150,000 tons in Inner Mongolia. The Φ 4.2×76m rotary kiln provided by Henan Zhengzhou Mining Machinery Co., Ltd. , with a production capacity of ≥21t/h, is used for calcining kaolin. The rotary kiln of this project is mainly used for kaolin calcination. It has the characteristics of good calcination effect, large production capacity, high operation rate, low energy consumption, stable and reliable operation, and easy operation and maintenance. It can realize energy saving, consumption reduction, and environmental protection production.
