Calcite Barite Ball Mill Grinding Machine Ultrafine Dry Grinding Ball Mill

Calcite Barite Ball Mill Grinding Machine Ultrafine Dry Grinding Ball Mill

Calcite Barite Ball Mill Grinding Machine

Ball Mill Grinding Machine Ultrafine

Ultrafine Dry Grinding Ball Mill

Place of Origin:

China

Brand Name:

ZK

Certification:

CE ISO Certification

Model Number:

Ф1.2x4.5-Ф4.2x13

Contact Us
Request A Quote
Product Details
Product Name:
Ball Mill Grinder
Models:
Lattice Type, Overflow Type Ball Mill Etc
Condition:
New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Size:
Customized
Capacity:
1.4-87t/h
Material:
Cement
Motor Type:
AC Motor
Spare Parts:
Supply All Using Life
Types:
Various Kinds
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Export standard container or as customers' requirements
Delivery Time
30 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 Set / Sets per Month
Product Description

Calcite, Barite, Kaolin Powder Ball Mill/ Ultrafine Grinding Equipment





Introduction:

Ball mill is mainly used for grinding in mining (metallic minerals and non-metallic minerals), cement, refractories, chemical, power plant, aluminum, building material, glass, ceramic, steel slag and fly ash, ect. It follows more crushing and less grinding principle to save energy. The feed size to ball mill shall be smaller than 25mm, the output size can be adjusted by revising steel balls ratio.



Applied Materials:

Copper, magnetite, molybdenite, zinc ore, iron ore, gold, hematite, fluorspar, lead & zinc, manganese, tungsten, marble, granite, slag, cement, limestone, clinker, coal etc

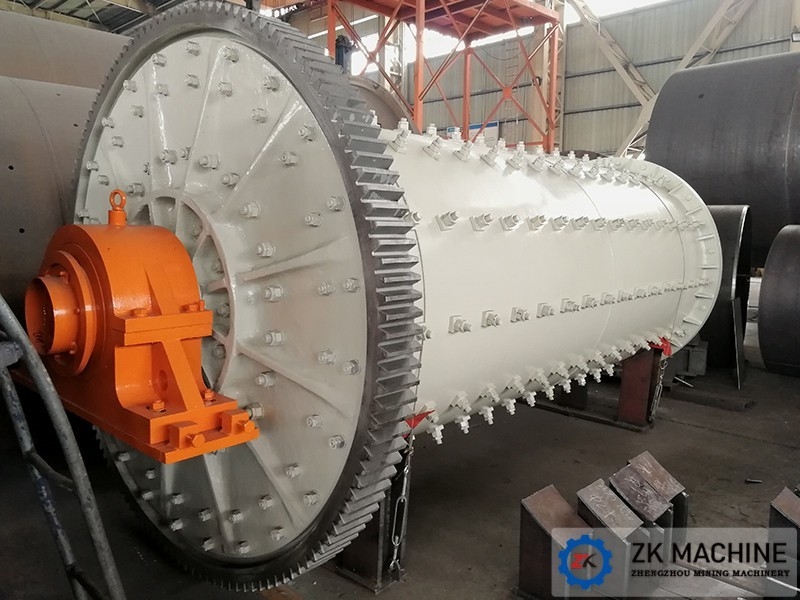

Calcite Barite Ball Mill Grinding Machine Ultrafine Dry Grinding Ball Mill 0



Different Types of Ball Mill:

Ball mill produced by ZK Corp include the different types according to different ways.
1. By Grinding Types: Wet Type Ball Mill & Dry Type Ball Mill
2. By Discharging Methods: Lattice Type Ball Mill & Overflow Type Ball Mill
3. By Installnation Methods: Horizontal Ball Mill & Vertical Roller Mill
4. By Cylinder Types: Tube Type Ball Mill & Cone Ball Mill
5. By Grinding Media: Steel Ball Mill
6. By Sizes: Small Scale Ball Mill, Medium Sizes Ball Mill, Large Type Ball Mill
7. By Grinding Material: Cement Mill, Air Swept Coal Mill, Ceramic Ball Mill, Dolomite Ball Mill, Raw Mill, Gold Ore Mill, Slag Ball Mill, Rod Mill etc



Calcite Barite Ball Mill Grinding Machine Ultrafine Dry Grinding Ball Mill 1



Main Structural Features:

1. The feeding device is composed of a feeding slider and a feeding screw cylinder. The feeding slider is equipped with a lining plate, which extends the service life of the feeding device;

2. The end cover and the hollow shaft are divided into two parts and combined together. The end cover is made of high-quality carbon steel. The hollow shaft is cast and formed to ensure its safe and reliable work;

3. The hollow shaft journal of the feed end is provided with a reserved gap, which can reduce the error caused by the expansion and contraction of the temperature difference and the installation of the cylinder body, and ensure the normal meshing of the gears;

4. The combined design of the inner lining plate of the cement mill adopts different lining plate structures for different stages in the mill, which greatly improves the grinding efficiency;

5. The main bearing adopts sliding bearing, which has good strength, plasticity, polymerization, friction reduction, wear resistance, lubricity and heat transfer, and it is simple and convenient to replace. It can meet the requirements of good lubrication of hollow shafts and is suitable for cement grinding. Low-speed, heavy-duty, dusty working environment.





Technical Data:



Model (m) Capacity (t/h)



Revolving Speed

(r/min)



Grinding Media Loading

(t)

Motor Gear Box

Weight

(t)



Model

Power

(kW)



Model



Ratio

Φ2.2×6.5 8-9 21.4 30 JRQ158-8 YR630-8 380 ZD70-9 5 46.2
Φ2.2×6.5 14 Closed circuit 21.4 30 JRQ158-8 YR630-8 380 ZD70-9 5 46.2
Φ2.2×7 12 21.4 30 JR158-8 380 ZD70-9 5 54
Φ2.2×7.5 13 21.4 32 JR158-8 380 ZD70-9 5 63
Φ2.2×8 11-12 21.4 37 JR158-8 380 ZD70-9 5 65
Φ2.2×9.5 14-16 Closed circuit 21.4 43 JR1510-8 475 ZD70-9 5 70
Φ2.2×13 16 20.3 55 YR630-8/1180 Y100L-8



630/11

JD630 ZS82.5-7

6.3

99.96



114.4
