Lower Noise Lower Cost Longer Service Life Dry-Type And Wet-Type Mill Ball Mill For Ore

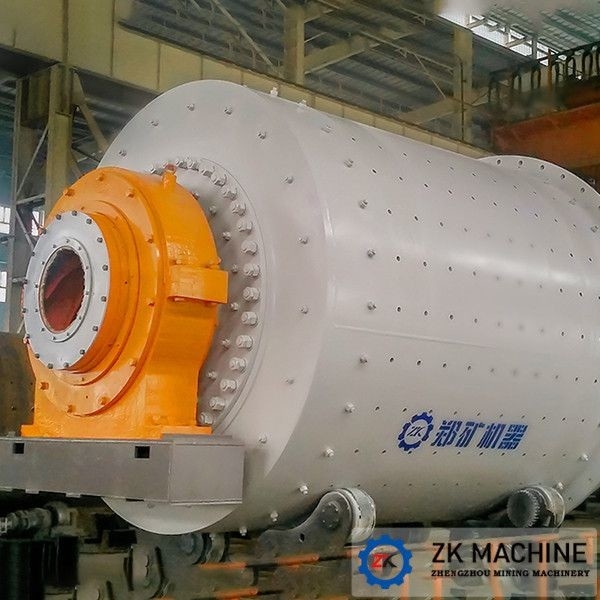

Ore Ball Mill Description
Metallurgical and beneficiation ball mills are the main equipment for beneficiation in mines, which are essential to improve the quality of the minerals.
Our company's metallurgical beneficiation ball mill has six specifications from Φ750×750 (mm) to Φ1830×6400 (mm), which can meet the grinding and beneficiation of 0.18-15 t/h minerals.
Ore Ball Mill Application
It can grind mineral materials, non-ferrous metal ore beneficiation, new building materials, and the selected mineral materials are of uniform fineness and good quality.
It is also used to separate and screening different ore minerals, separate ore tailing.
According to the discharge method, it divided to dry-type mill and wet-type mill.
Features
1. Higher grinding efficiency, lower consumption;
2. Product fineness is adjustable and uniform;
3. Low energy consumption, low wear, low operating costs;
4. Small vibration, low noise, environmental friendly;
5. Liner is made of high-quality wear resistant material with high strength, wear resistance and long working life.
Technical Parameter
| Model (mm) | Rotating Speed (r/min) | Weight of ball (t) | Inlet Size (mm) | Outlet Size (mm) | Capacity (t/h) | Motor Power (kW) | Weight (t) | Remarks |
|---|---|---|---|---|---|---|---|---|
| Φ750×750 | 40.56 | 0.5 | ≦20 | 0.074-0.3 | 0.18-0.5 | 15 | 2.774 | Energy saving mill |
| Φ900×3000 | 36 | 2.7 | ≦20 | 0.074-0.89 | 1.1-3.5 | 22 | 6.8 | Dry type |
| Φ900×3000 | 39 | 5.8 | ≦25 | 0.075-0.89 | 0.8-3.1 | 22 | 7.1 | Wet lattice |
| Φ1200×4500 | 33 | 13 | ≦25 | 0.074-0.4 | 0.7-8 | 45 | 14.2 | Wet lattice |
| Φ1500×5700 | 30 | 25 | ≦25 | 0.074-0.6 | 4-14 | 130 | 25 | Wet lattice |
| Φ1830×6400 | 24.1 | 21 | ≦25 | 0.074-0.4 | 6.5-15 | 210 | 34 | Wet overflow |
Wearing Parts
| No. | Name | Material | Qty. | Part | Remarks |
|---|---|---|---|---|---|
| 1 | Spherical tile (main bearing) | HT200/ZPbSb15Sn10 | 2 | Main bearing | Different specifications, different materials |
| 2 | Cylinder liner | ZGMn13 (General) | As required | Cylinder | Different specifications, different quantities |
| 3 | Mill door liner | ZGMn13 (General) | As required | Cylinder | Different specifications, different quantities |
| 4 | Mill door (manhole cover) | ZGMn13 (General) | As required | Cylinder | Different specifications, different quantities |
| 5 | Mill door liner | ZGMn13 (General) | As required | Cylinder | Different specifications, different quantities |
| 6 | Gear | 45#Forge | 1 | Transmission device | Different requirements, different materials |
Project Cases
1. Ore Ball Mill Project in Ecuador
2. Ore Ball Mill Project in Guyana
etc.
