Energy Saving Gypsum Ball Mill Grinder For Phosphogypsum Powder

Energy Saving Gypsum Ball Mill Grinder For Phosphogypsum Powder

  • High Light

    Energy Saving Gypsum Ball Mill

    ,

    Ball Mill Grinder 87 TPH

    ,

    Ball Mill Grinder Phosphogypsum Powder

  • Name
    Gypsum Ball Mill
  • Models
    Φ1.2*4.5~Φ4.2*13
  • Capacity
    1.4-87 TPH
  • Weight
    13-254T
  • Power
    55~3530kW
  • Process
    Dry/Wet
  • Place of Origin
    CHINA
  • Brand Name
    ZK
  • Certification
    ISO,CE
  • Model Number
    Ball Mill
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    MEET THE SHIPMENT REQUIREMENT
  • Delivery Time
    30DAYS
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 PER MONTH

Energy Saving Gypsum Ball Mill Grinder For Phosphogypsum Powder

High Efficiency Gypsum Ball Mill Energy Saving For Preparation Of Phosphogypsum Powder



Gypsum Ball Mill Description

The phosphogypsum ball mill is improved on the basis of the general-purpose ball mill. After phosphogypsum is dehydrated and calcined, it often needs to be ground into building gypsum powder before it can be used as a building material to make blocks and boards. The phosphogypsum ball mill is a special mill developed by our company based on the performance of phosphogypsum and combined with a series of advantages such as energy-saving ball mills. This machine has the characteristics of energy saving, high efficiency and low pollution in the production of phosphogypsum grinding.

According to the phosphogypsum material particle size and grindability data, it focuses on the grinding characteristics and weakens the crushing performance. In the process of phosphogypsum grinding, a proper proportion of lime and other catalysts can be added to realize the modification of phosphogypsum.



Application

Used in the preparation of phosphogypsum powder by grinding.



Features

1. The phosphogypsum ball mill is highly adaptable: according to the industrial use of building phosphogypsum powder, it can grind products with different fineness suitable for various purposes such as gypsum blocks, gypsum mortar, etc., with high adaptability and stable output;

2. Energy consumption of phosphogypsum ball mill equipment: Compared with other materials, phosphogypsum has high output and low power consumption due to its small particle size and good grindability;

3. The maturity and reliability of phosphogypsum ball mill equipment. The grinding technology of the ball mill is mature and universal, and the grinding characteristics in the production process are optimized, and the operation is stable and reliable, and avoids various shutdown and downtime risks caused by immature technology after it is put into production;

4. During the grinding process of the phosphogypsum ball mill, other production processes can be added, such as a proper amount of lime or other additives to achieve the performance of phosphogypsum and optimize the strength.



Gypsum Ball Mill Specifications



Specification (m) Capacity (t/h) Rotating speed (r/min) Grinding body (t) Motor Reducer Weight (t)
Model Power (kW) Model Speed ratio
Φ1.2x4.5 1.4 30.3 5 YR250M-6 55 ZD30-8 4.481 13.1
Φ1.5x5.7 3.5 26.34 11 JR127-8 130 ZD40-7 4 25
Φ1.83x6.4 6 23.9 18 JR137-8 210 ZD60-8 4.5 35.3
Φ1.83x7 6.5 24.5 20 JR138-8 245 ZD60-8 4.5 37.2
Φ2x9 9.5-10 23.88 31 JR158-8 380 ZD70-8 4.5 58.4
Φ2.2x6.5 11 21.4 30 JRQ158-8/YR630-8 380 ZD70-9 5 46.2
Φ2.2x6.5 14 Closed circuit 21.4 30 JRQ158-8/YR630-8 380 ZD70-9 5 46.2
Φ2.2x7 12 21.4 30 JR158-8 380 ZD70-9 5 54
Φ2.2x7.5 13 21.4 32 JR158-8 380 ZD70-9 5 63
Φ2.2x8 14 21.4 37 JR158-8 380 ZD70-9 5 65
Φ2.2x9.5 14-16 Closed circuit 21.4 43 JR1510-8 475 ZD70-9 5 70
Φ2.2x13 16 20.3 55 YR630-8/1180/Y100L-8 630/11 JD630/ZS82.5-7 6.3/99.96 114.4
Φ2.4x7 14-16 Closed circuit 20.4 36 JR1510-8 475 JDX450 5 67.9
Φ2.4x8 16-17 Closed circuit 20.3 41 JR1512-8/Y180L-8 570/11 JD630/ZS82.5-7 6.333/99.96 87.2
Φ2.4x9 17-19 Closed circuit 20.3 46 YR630-8/1180/Y100L-8 630/11 JD630/ZS82.5-7 6.333/99.96 93.5
Φ2.4x10 18-19 Open circuit 20.3 50 YR630-8/1180/Y100L-8 630/11 JD630/ZS82.5-7 6.333/99.96 99.4
Φ2.4x11 19-21 Open circuit 20.3 60 YR630-8/1180/Y100L-8 630/11 JD630/ZS82.5-7 6.333/99.96 99.4
Φ2.4x12 25-27 Closed circuit 20.3 61 YR800-8/1180/Y100L-8 800/11 JD630/ZS82.5-7 6.333/99.96 112.7
Φ2.4x13 25-27 High fine open circuit 20.3 66 YR800-8/1180/Y100L-8 800/11 JD630/ZS82.5-7 6.333/99.96 131.1
Φ2.4x13 21-23 Open circuit 20.3 66 YR1000-8/1180/Y160M-4 1000/11 JD630/ZS82.5-7 6.333/99.96 130.4
Φ2.6x10 25-27 Closed circuit 20.3 60 YR800-8/1250 800 JD800 5.5 150.5
Φ2.6x13 27-29 19.1 80 YR1000-8/1180/Y160M-4 1000/11   5.5/280 169
Φ3x9 33-34 Closed circuit 19.6 79 YR1000-8/1180/Y160M-4 1000/11 NAL108/8/ZS110-19 8/280 156.5
Φ3x11 35-40 Closed circuit 18.3 97 YR1250-8/1430/YR160M-4 1250/11 YNL1210 6.3 178
Φ3x11 47 Closed circuit 17.7 97 YR118/74-8 1250 ZI314 42.39 169
Φ3x12 38-40 Closed circuit 18.1 90 YR1250-8/1430 1250/11 JS1100-00 41.27 196.26
Φ3.2x11 40 Closed circuit 18 103 YR1400-8/1430/Y160M-4 1400/11 YNL1210/ZS110-19 12.35/28 186.1 Without motor
Φ3.5x11.5 65-70 Closed circuit 16.5 129 TYD143/49-8 2000 ZI370 36.239 138.3 Without motor
Φ3.5x11.5 50 Closed circuit 17.2 126 YR1800-8/1430/Y200L2-2 1800/37   43.02/318 252.27
Φ3.8x13 Double slipper 70-75 Closed circuit 16.6 170 YRKK800-8 2500 JS130/MFY250 44.9 203 Without motor
Φ3.8x13 60-62 16.3 170 YR2500-10/1730 2500 MFYX250   286
Φ4x13 65 Closed circuit 15.95 202 YRKK900-8 2800 JS130-8 46.7 264
Φ4.2x13 85 Closed circuit 16.3 224 YRKK900-8 3150 MFY320 47.8 250 Without motor
Φ4.2x13 85-87 16.3 224 YR1000-8 3530 JQS3550 15.6 254 Without motor

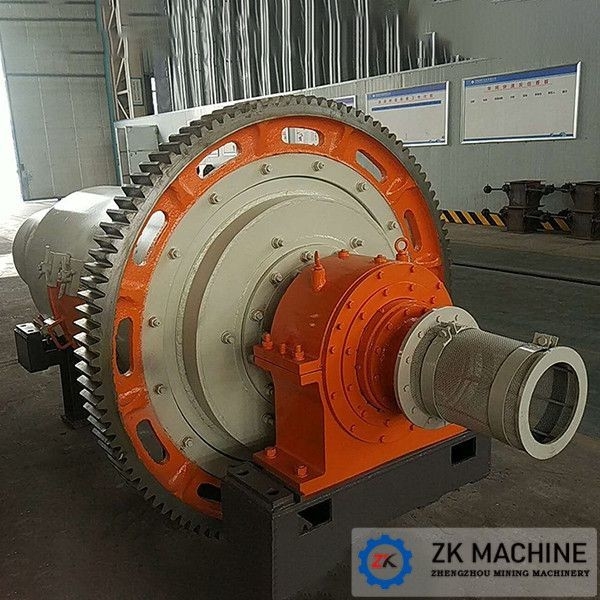

Energy Saving Gypsum Ball Mill Grinder For Phosphogypsum Powder 0

Energy Saving Gypsum Ball Mill Grinder For Phosphogypsum Powder 1

Energy Saving Gypsum Ball Mill Grinder For Phosphogypsum Powder 2

Energy Saving Gypsum Ball Mill Grinder For Phosphogypsum Powder 3
