Place of Origin:
CHINA
Brand Name:
ZK
Certification:
ISO,CE
Model Number:
Ball Mills

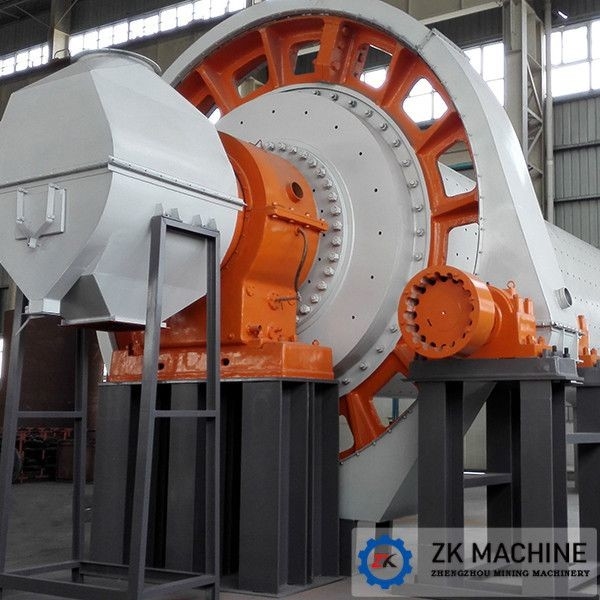

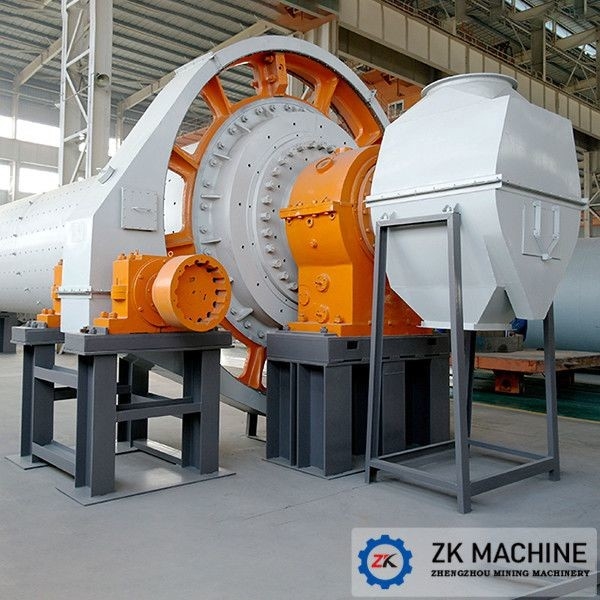

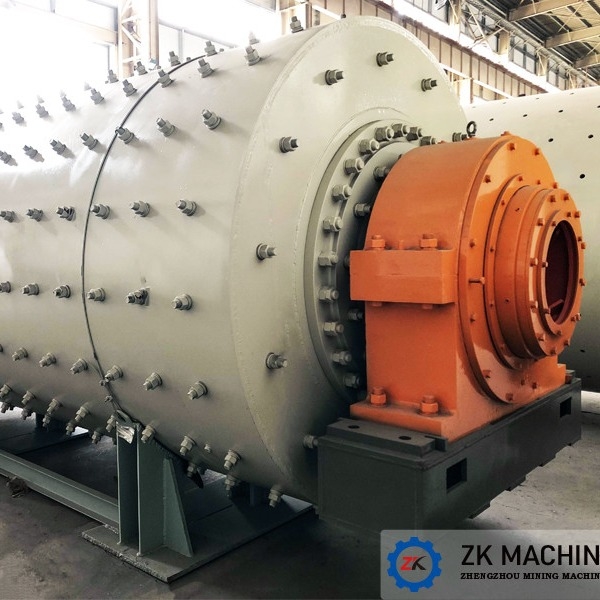

Lower Energy Consumption Ball Mill Machine Used for Cement Metallurgy Industry
Ball Mill Description
Ball mill is mainly used for grinding in cement, refractories, chemical, power plant, aluminum, building material, glass, ceramic, steel slag and fly ash, ect. It follows more crushing and less grinding principle to save energy. The feed size to ball mill shall be smaller than 25mm, the output size can be adjusted by revising steel balls ratio.
Application
Ball mills are used for grinding materials such as bauxite, dolomite, limestone, feldspar, gypsum, steel slag, quartz, manganese, kaolin, spodumene, mica, calcite, fluorite, magnesite, aluminum powder, quartz sand, aluminum powder paste, feldspar, clinker, slag, etc.
Outstanding Advantages
ZK Corp could customized the ball mill according to customer's demands.
1. Liner of ball mill is made of high-quality wear resistant material with high strength, wear resistance and long working life.
2. Product fineness is adjustable, uniform and high qualified.
3. Good sealing performance. It can be adapted to different working conditions.
4. High grinding efficiency, low energy consumption.
Ball Mill Specifications
| Model | Cylinder Size (m) | Rotating Speed (r/min) | Weight of balls (t) | Feed Size (mm) | Outlet Size (mm) | Capacity (t/h) | Power (kW) | Weight (t) |
|---|---|---|---|---|---|---|---|---|
| MQZ1224 | 1.2x2.4 | 31 | 4.8 | 0-20 | 0.074-0.6 | 0.4-6.8 | 37 | 13.43 |
| MQZ1245 | 1.2x4.5 | 31 | 5.2 | 0-20 | 0.074-0.6 | 1.6-12 | 45 | 17.4 |
| MQZ1530 | 1.5x3.0 | 27.5 | 8.1 | 0-25 | 0.074-0.4 | 2.9-16.5 | 65 | 18.6 |
| MQZ1557 | 1.5x5.7 | 29.2 | 15 | 0-25 | 0.074-0.4 | 4-25 | 95 | 24.54 |
| MQZ1645 | 1.6x4.5 | 27.5 | 14 | 0-25 | 0.074-0.4 | 4-24 | 95 | 26 |
| MQZ1836 | 1.8x3.6 | 23.9 | 11 | 0-25 | 0.074-0.4 | 8-40 | 132 | 33 |
| MQZ1864 | 1.8x6.4 | 23.9 | 18.5 | 0-25 | 0.074-0.4 | 8-60 | 155 | 35.6 |
| MQZ2130 | 2.1x3.0 | 23.8 | 19.8 | 0-25 | 0.074-0.4 | 6.5-36 | 155 | 45 |
| MQZ2136 | 2.1x3.6 | 23.8 | 27 | 0-25 | 0.074-0.4 | 8-61 | 155 | 46.8 |
| MQZ2265 | 2.2x6.5 | 21.6 | 28 | 0-25 | 0.074-0.4 | 8-35 | 210 | 62 |
| MQZ2430 | 2.4x3.0 | 22 | 22.5 | 0-25 | 0.074-0.4 | 7-92 | 210 | 67 |
| MQZ2436 | 2.4x3.6 | 22 | 28 | 0-25 | 0.074-0.4 | 7-95 | 210 | 73 |
| MQZ2465 | 2.4x6.5 | 22 | 36 | 0-25 | 0.074-0.4 | 7-110 | 260 | 76 |
| MQZ2736 | 2.7x3.6 | 21.9 | 39 | 0-25 | 0.074-0.4 | 13-140 | 310 | 77 |
| MQZ2745 | 2.7x4.5 | 21.9 | 43 | 0-25 | 0.074-0.4 | 13-150 | 320 | 91 |
| MQZ2836 | 2.8x3.6 | 20 | 42 | 0-25 | 0.074-0.4 | 15-140 | 310 | 94.2 |
| MQZ3060 | 3.0x6.0 | 19 | 70 | 0-25 | 0.074-0.4 | 100-145 | 630 | 155 |
| MQZ3245 | 3.2x4.5 | 18.6 | 65 | 0-25 | 0.074-0.4 | 100-145 | 630 | 126 |
| MQZ3260 | 3.2x6.0 | 18.6 | 86 | 0-25 | 0.074-0.4 | 120-150 | 800 | 176 |
| MQZ3645 | 3.6x4.5 | 17.8 | 90 | 0-25 | 0.074-0.4 | 120-220 | 1000 | 159.7 |
| MQZ3660 | 3.6x6.0 | 17.8 | 120 | 0-25 | 0.074-0.4 | 50-230 | 1250 |
189 |
Project Cases
1. Ø 2.0x3.4m Ceramic Batch Mill Project in Malaysia
2.Φ2.4 × 4.75m Air-swept Coal Mill Delivered to Uzbekistan
3. 45TPH Feldspar Grinding Plant in India
