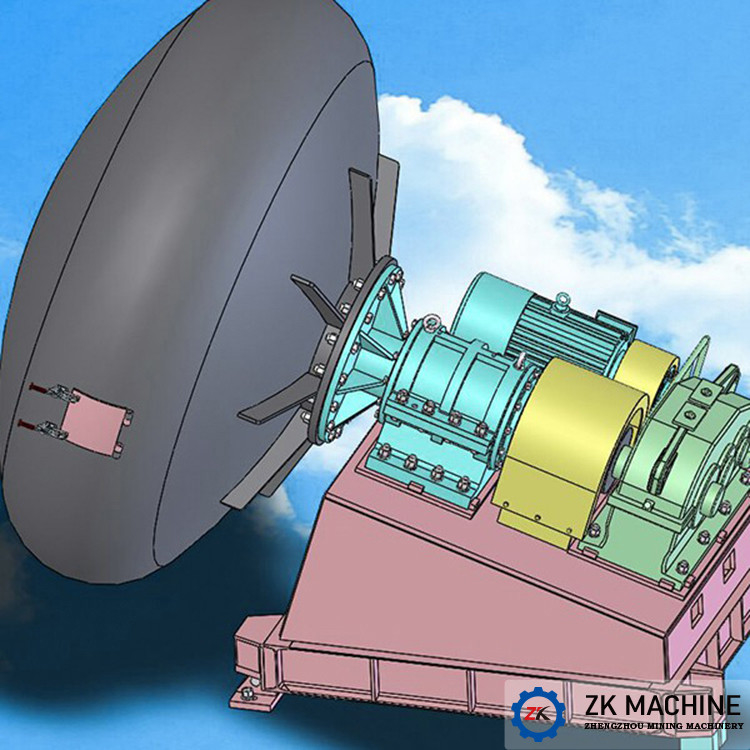

4.2m Pan Granulator Equipment 20t/h Long Service Life Simple Maintenance

4.2m Pan Granulator Equipment 20t/h Long Service Life Simple Maintenance

  • High Light

    20t/H Pan Granulator

    ,

    4.2m Pan Granulator

    ,

    Pan Granulator Equipment

  • Product Name
    Pan Granulator
  • Diameter
    1000 - 4200 (mm)
  • Height
    250 - 800 (mm)
  • Capacity
    1 - 20 (t/h)
  • Application
    Cement, Steel,fertilizer Industry
  • Shipping Port
    Shanghai, Qingdao, Tianjin
  • Installation
    Under Our Engineer′s Guide
  • Business Scope
    Design, Manufacturer, Onsite Guidance
  • Warranty
    12 Months
  • Spare Parts
    Supply All Using Life
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    ISO,CE
  • Model Number
    Pan Granulator
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    MEET THE SHIPPMENT REQUIRMENTS
  • Delivery Time
    30 DAYS
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    20 PER MONTH

4.2m Pan Granulator Equipment 20t/h Long Service Life Simple Maintenance

Product description



Pan fertilizer granulator is a kind of granulation equipment, which converts powdered materials into uniform, round pellets, such as bauxite, shale, clay, sludge, fly ash, slag etc. It has the advantages of uniform grain size, high output, compact structure, convenient control and smooth operation, which can be widely used in ceramic sand, petrochemical, construction, fire-resistant insulation and other fields.

Aiming at the urgent demands of technological upgrading in domestic ceramic sand industry, Henan Zhengzhou Mining Machinery Co.,Ltd. has successfully developed a similar kind of advanced granulator by the way of collaborative research and innovation. It is capable of fully meeting the requirements for clean and efficient production of a variety of ceramic sands.

The company's pot granulator has low energy consumption, easy to control the size of the ball size, and good strength. The diameter of the pan is from 2.2m to 4.2m, and there are 8 models in total, the speed is 14-24 (r/min), and the supporting motor power is 15KW-132KW, which can meet the production demand of 1t-18t per hour.

4.2m Pan Granulator Equipment 20t/h Long Service Life Simple Maintenance 0




Working principle
The working principle of the granulator is that the transmission device drives the cylinder to rotate through the bridge device, and the axis of the cylinder is at a specific angle with the horizontal plane; when the powder is added to the cylinder through the feeding port, it starts to spray water into the cylinder to moisten it. When the powder is tumbling, it gradually forms a ball core, and the wet ball core gradually grows into granules under the continuous rolling, friction and collision. When the particle size reaches the requirement, it is unloaded through the discharge door.




4.2m Pan Granulator Equipment 20t/h Long Service Life Simple Maintenance 1

Parameters:

Model(mm) Volume(m³) Capacity(t/h) Revolving Speed(r/min) Power(kW)
Ø2200 2 1-2 15 15
Ø2700 4 2-3 15 30
Ø3000 7 5-6 16 45
Ø3200 10 6-8 16 55
Ø3500 13 8-10 16 75
Ø3600 14 10-12 16 75
Ø4000 18 11-14 14 110
Ø4200 22 14-18 14 132

4.2m Pan Granulator Equipment 20t/h Long Service Life Simple Maintenance 2
