Small  Disk Pan Granulator Equipment Large Capacity Professional Reliable

Small Disk Pan Granulator Equipment Large Capacity Professional Reliable

  • High Light

    Large Capacity Disk Granulator Machine

    ,

    380V Pan Granulator

    ,

    Small Pan Granulator Equipmen

  • Product Name
    Large Capacity Disk Granulator Machine For Organic Fertilizer
  • Application
    Cement, Steel,fertilizer Industry
  • Dia
    1000-4200(mm)
  • Height
    250-800(mm)
  • Shipping Port
    Shanghai,Qingdao,Tianjin
  • Condition
    New
  • Warranty
    1 Year
  • Motor Type
    AC Motor
  • Voltage
    220V/380V/440
  • Spare Parts
    Supply All Using Life
  • Certification
    ISO 9001:2008
  • Place of Origin
    CHINA
  • Brand Name
    ZK CORP
  • Certification
    ISO,CE
  • Model Number
    PQ10w-PQ42w
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    standard container or wooden packing with other spare parts
  • Delivery Time
    30DAYS
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    100 Set/Sets per Month

Small Disk Pan Granulator Equipment Large Capacity Professional Reliable

Product description

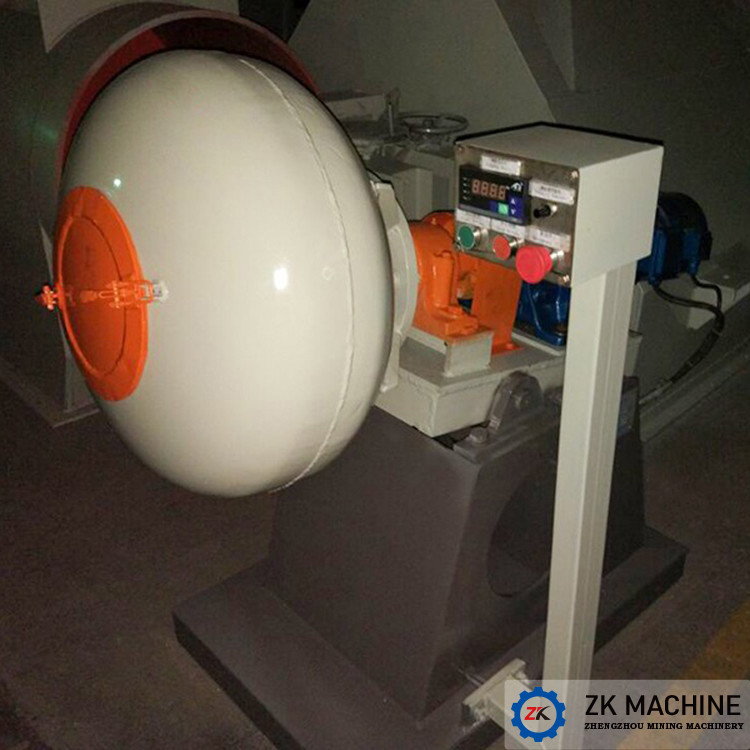

The experimental granulator of our company has two series ZKL(T), the pan-type PQ(T) and the pan-type granulator. The inclination angle of the disc type experimental granulator is 40-60°, the rotation speed is 0-42 (r/min), and the power of the supporting motor is 0.55KW; Corresponding to the 500mm, 600mm diameter of the ball into the disk, there are two types of motor powers, 2.2KW and 3KW.
In order to meet the needs of granulation production enterprises, research institutes and colleges and universities to conduct experimental research on large-scale production granulation process and new product development, our company has developed corresponding granulation according to the different characteristics of each granulator. testing machine to meet user needs.



Working principle
The raw meal powder is made into ball cores with uniform particle size, and then sent to the ball-forming disc. The water in the ball is continuously extruded out of the surface. Due to the cohesiveness and plasticity of the material, the core of the ball sticks with the raw meal powder and grows up gradually during the movement. Due to the cohesiveness of the material and the natural volatilization of the surface liquid film, the material ball has a certain strength. When the parameters such as the inclination angle, the height of the disc edge, the rotational speed and the moisture content of the ball-forming disc are constant, the material balls with different particle sizes leave the disc edge and roll down according to different detachment angles due to different gravity, and then roll down with the rotation of the inclined disc body. Drain out of the pan from the edge of the pan.



Small  Disk Pan Granulator Equipment Large Capacity Professional Reliable 0





Unpowered Scraper Disc Granulator Technical Parameters:



Unpowered scraper disc granulator technical parameters

Type Disc Pelletizer Power(kW)
Dia (mm) Height(mm) Slope (°) Speed(r/min)
PQ10W 1000 250 35-55 25 4.5
PQ16W 1600 300 35-55 19 4.5
PQ22W 2200 500 35-55 14 15
PQ25W 2500 500 35-55 14.25 15
PQ28W 2800 640 35-55 11.81 18.5
PQ32W 3200 640 40-50 9.06 22
PQ36W 3600 700 40-50 8 22
PQ42W 4200 800 40-50 7 30

Powered scraper disc granulator technical parameters

Type Disc Pelletizer Main Power(kW) Weight(t)
Dia (mm) Height(mm) Slope (°) Speed(r/min)
PQ10 1000 250 35-55 25 4.5 1.8
PQ16 1600 300 35-55 19 4.5 2.7
PQ22 2200 500 35-55 14 15 3.9
PQ25 2500 500 35-55 14.25 15 5.2
PQ28 2800 640 35-55 11.81 18.5 5.7
PQ32 3200 640 40-50 9.06 22 7.3
PQ36 3600 700 40-50 8 22 8.6
PQ42 4200 800 40-50 7 30

11.2
