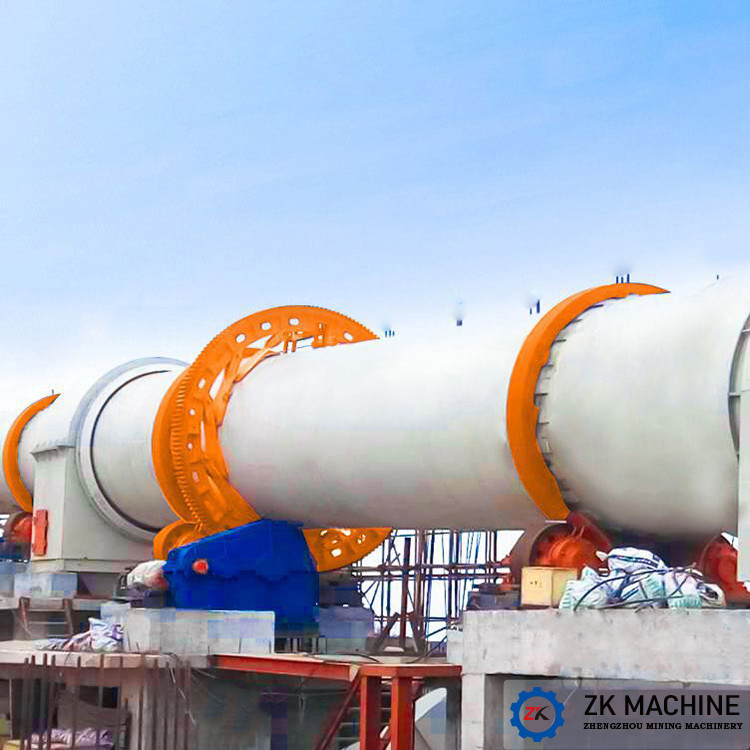

Rotary Kiln Sludge Resource Treatment Equipment Power Energy Saving

Rotary Kiln Sludge Resource Treatment Equipment Power Energy Saving

  • High Light

    Rotary Kiln sludge processing equipment

    ,

    Power Energy Saving slurry dewatering equipment

  • Capacity
    5,000-300,000(m3/a)
  • Main Equipment
    LECA Rotary Kiln, Granulator, Rotary Screen Etc
  • Raw Materials
    Clay, Sludge, Shale, Fly Ash
  • Application
    Light Wall Panel Etc
  • Kiln Body Slope
    3-4%
  • Kiln Body Length
    Custom Made
  • Handling Materials
    Municipal Sludge, Industrial Sludge, Coal Gangue, Fly Ash, Shale, Clay
  • Place of Origin
    CHINA
  • Brand Name
    ZK
  • Certification
    ISO,CE
  • Model Number
    Oil Sludge Calcination Kiln
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    MEET THE SHIPPMENT REQUIRMENTS
  • Delivery Time
    30DAYS
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    30 PER MONTH

Rotary Kiln Sludge Resource Treatment Equipment Power Energy Saving

Ceramic Rotary KilnLight Bone Material Production Equipment

Service scope: from raw material feeding, calcination, cooling to environmental protection dust removal system, equipment supply, equipment installation and commissioning and other technical services.


Production Process:
The process of producing ceramsite in this production line is: feeding system → calcining system → gas treatment system.
The sludge in the silo is conveyed by the feeding system to the shaftless screw conveyor, and then enters the rotary kiln through the shaftless screw conveyor. Since the cylinder rotates slowly at an inclination angle of 3.5% slope, the material in the cylinder moves from the high end (feeding device) to the low end (unloading device) along the axis of the cylinder while the cylinder rotates. The natural gas burner is installed on the kiln head cover of the rotary kiln (discharge end). The high temperature gas generated by flame combustion is fully exchanged with the materials from the kiln tail, and flows from the kiln head (low end) to the kiln tail (high end). Heat is transferred to the material by convection and conduction, and the wet material is dried and calcined during the movement. The generated waste gas enters the waste gas treatment system through the exhaust pipe at the kiln tail cover. The calcined high-temperature material enters the single-cylinder cooler, and is transported to the next process by the belt conveyor after cooling.


FAQ:
Q. Why choose you?
We have our own factory and we are a professional crusher manufacturer. We also have our own engineers who have State Council allowances.
Q: Are you a trading company or a manufacturer?
A: We are a factory.
Q: How long is your delivery time?
A: Generally 30 days, also according to the quantity.
Q: What are your payment terms?
A: Payment <= $1000, 100% prepayment. Payment >= USD 1000, 30% T/T prepaid, balance before shipment.
If you have any other questions, please feel free to contact us.

Welcome to visit our company and workshop, we sincerely look forward to cooperating with you.
We will provide you with the most suitable products at reasonable prices.

&n

No. Spec(m) Capacity Slope(%) Rev. Speed(r/min) Reducer Model Motor
Per hour(m3/h) Per Year (m3/a) Type Power(KW)
1 Preheat Kiln Φ1.25×18 2.95~3.94 18000~24000 4 1.0~5.0 ZQ500 YCT225-4A 11
Calcined Kiln Φ1.6×14 1.0~5.0 ZQ650 YCT225-4B 15
2 Preheat Kiln Φ1.55×20 4.36~5.81 26700~35000 4 1.0~5.0 ZQ650 YCT250-4A 18.5
Calcined Kiln Φ1.9×16 1.0~5.0 ZQ750 YCT250-4B 22
3 Preheat Kiln Φ1.8×22 5.9~7.87 36100~48000 4 1.0~5.0 ZQ750 YCT250-4B 22
Calcined Kiln Φ2.2×18 1.0~5.0 ZQ750 YCT250-4B 22
4 Preheat Kiln Φ2.0×24 7.42~9.88 45400~60000 4 1.0~5.0 ZSY224 YCT280-4B 30
Calcined Kiln Φ2.5×20 1.0~5.0 ZSY224 YCT315-4A 37
5 Preheat Kiln Φ3.0×20- Φ2.5×12 9.5~17.51 80400~107000 4 1.0~5.0 ZS1450 YCT355-4B 75
Calcined Kiln Φ3.0×22 1.0~5.0 ZS1250 YCT355-4A 55
6 Preheat Kiln Φ3.2×20- Φ2.8×14 13.9~16.2 100000~115000 4 1.0~5.0 ZS1450 YCT355-4A 55
Calcined Kiln Φ3.0×22 1.0~5.0 ZS1250 YCT355-4A 55
