Ceramsite Rotary Kiln Industrial Solid Waste Production Equipment Energy Saving

Ceramsite Rotary Kiln Industrial Solid Waste Production Equipment Energy Saving

  • High Light

    Ceramsite Rotary Kiln solid waste production

    ,

    Industrial solid waste production Equipment

    ,

    Energy Saving Calcination Equipment

  • Capacity
    5,000-300,000(m3/a)
  • Main Equipment
    LECA Rotary Kiln, Granulator, Rotary Screen Etc
  • Raw Materials
    Clay, Sludge, Shale, Fly Ash
  • Application
    Light Wall Panel Etc
  • Length
    Customization
  • Diameter
    Customization
  • Place of Origin
    CHINA
  • Brand Name
    ZK
  • Certification
    ISO,CE
  • Model Number
    Oil Sludge Calcination Kiln
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    MEET THE SHIPPMENT REQUIRMENTS
  • Delivery Time
    30DAYS
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    30 PER MONTH

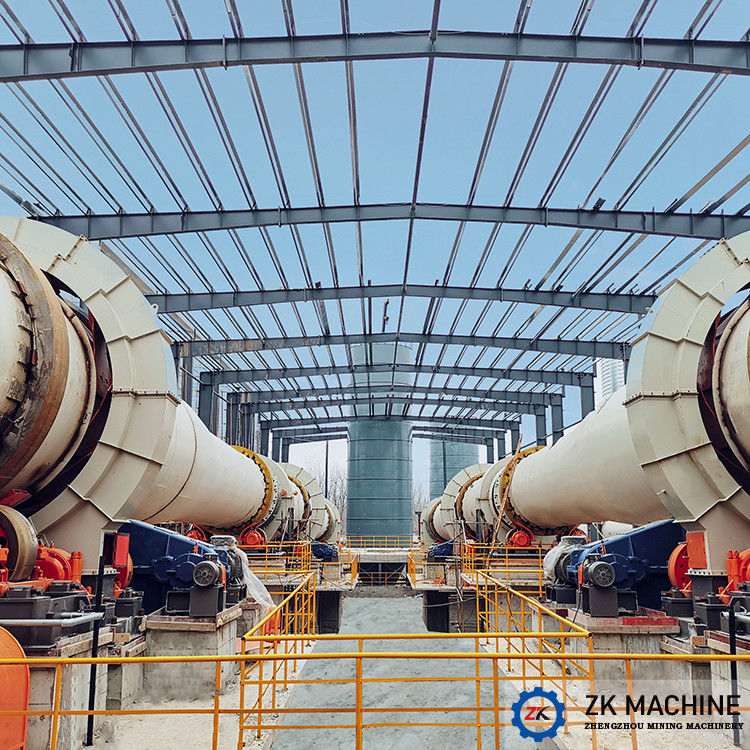

Ceramsite Rotary Kiln Industrial Solid Waste Production Equipment Energy Saving

Introduction of coal gangue, fly ash, clay, sludge resource treatment equipment

Project location: all over the world

Processing materials: river sludge, industrial sludge, sand washing sludge, oil sludge, etc.

Production scale: annual output of 50,000-600,000 cubic ceramsite

Service Scope: From raw material feeding, calcination, cooling to environmental protection dust removal system, equipment manufacturing supply, equipment installation and commissioning and other technical services.


Equipment production process:

The process of producing ceramsite in this production line is: automatic feeding system → integrated calcination system → gas environmental protection treatment system.

The material is automatically transported to the screw conveyor by the feeding system, and then enters the rotary kiln through the screw conveyor. Since the cylinder rotates slowly at an inclination angle of 3.5%, the material in the cylinder moves from the feeding device to the unloading device along the axis of the cylinder while the cylinder rotates. The natural gas burner is installed on the rotary kiln head, and the high temperature gas generated by the flame combustion is fully exchanged with the material from the kiln tail, and flows from the kiln head to the kiln tail. Heat is transferred to the material by convection and conduction, and the wet material is dried and calcined during the movement. The exhaust gas from calcination enters the treatment system through the exhaust pipe at the kiln tail cover. The calcined material enters the single-cylinder cooler, and is transported to the silo by the belt conveyor after cooling.



&n

No. Spec(m) Capacity Slope(%) Rev. Speed(r/min) Reducer Model Motor
Per hour(m3/h) Per Year (m3/a) Type Power(KW)
1 Preheat Kiln Φ1.25×18 2.95~3.94 18000~24000 4 1.0~5.0 ZQ500 YCT225-4A 11
Calcined Kiln Φ1.6×14 1.0~5.0 ZQ650 YCT225-4B 15
2 Preheat Kiln Φ1.55×20 4.36~5.81 26700~35000 4 1.0~5.0 ZQ650 YCT250-4A 18.5
Calcined Kiln Φ1.9×16 1.0~5.0 ZQ750 YCT250-4B 22
3 Preheat Kiln Φ1.8×22 5.9~7.87 36100~48000 4 1.0~5.0 ZQ750 YCT250-4B 22
Calcined Kiln Φ2.2×18 1.0~5.0 ZQ750 YCT250-4B 22
4 Preheat Kiln Φ2.0×24 7.42~9.88 45400~60000 4 1.0~5.0 ZSY224 YCT280-4B 30
Calcined Kiln Φ2.5×20 1.0~5.0 ZSY224 YCT315-4A 37
5 Preheat Kiln Φ3.0×20- Φ2.5×12 9.5~17.51 80400~107000 4 1.0~5.0 ZS1450 YCT355-4B 75
Calcined Kiln Φ3.0×22 1.0~5.0 ZS1250 YCT355-4A 55
6 Preheat Kiln Φ3.2×20- Φ2.8×14 13.9~16.2 100000~115000 4 1.0~5.0 ZS1450 YCT355-4A 55
Calcined Kiln Φ3.0×22 1.0~5.0 ZS1250 YCT355-4A 55
