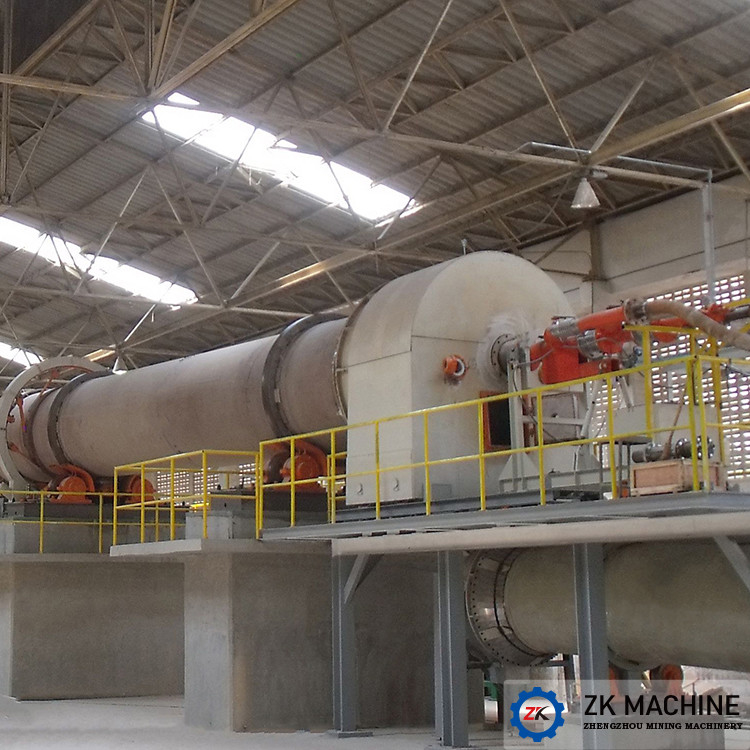

Ceramsite Calcination Rotary Kiln Equipment Low Consumption and Durability

Ceramsite Calcination Rotary Kiln Equipment Low Consumption and Durability

Ceramsite Calcination rotary kiln equipment

Low Consumption rotary kiln equipment

Oil Sludge rotary kiln equipment

Place of Origin:

CHINA

Brand Name:

ZK

Certification:

ISO,CE

Model Number:

Oil Sludge Calcination Kiln

Contact Us
Request A Quote
Product Details
Capacity::
5,000-300,000(m3/a)
Main Equipment::
LECA Rotary Kiln, Granulator, Rotary Screen Etc
Raw Materials::
Clay, Sludge, Shale, Fly Ash
Application::
Light Wall Panel Etc
Certification::
ISO CE
Place Of Origin:
Henan, China
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
MEET THE SHIPPMENT REQUIRMENTS
Delivery Time
30DAYS
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
30 PER MONTH
Product Description

Rotary kiln product application:
According to different materials, it can be divided into cement kiln, metallurgical chemical kiln and lime kiln. Cement kilns are used to produce cement clinker, which can be divided into dry method and wet method. Metallurgical chemical kilns are widely used for magnetic roasting of lean iron ore in steel mills and oxidative roasting of chromium and nickel; supporting high alumina ore in refractory plants; roasting clinker and alumina in aluminum plants, and roasting chrome ore and chromium powder in chemical plants. Lime kilns are used for roasting active lime and light roasting dolomite in steel and ferroalloy plants.
Ceramic Rotary KilnLight Aggregate Production Equipment

Scope of services: from raw material feeding, calcination, cooling to environmental protection dust removal system, equipment supply, equipment installation and commissioning and other technical services.


Production Process:
The process flow of the production line for producing ceramsite is: feeding system → calcining system → gas treatment system.
The sludge in the silo is transported by the feeding system to the shaftless screw conveyor, and then enters the rotary kiln through the shaftless screw conveyor. Since the cylinder rotates slowly at an inclination angle of 3.5%, the material in the cylinder moves from the high end (feeding device) to the low end (unloading device) along the axis of the cylinder while the cylinder rotates. The natural gas burner is installed on the kiln head cover of the rotary kiln (discharge end). The high temperature gas generated by flame combustion is fully exchanged with the materials from the kiln tail, and flows from the kiln head (low end) to the kiln tail (high end). Heat is transferred to the material by convection and conduction, and the wet material is dried and calcined during the movement. The generated waste gas enters the waste gas treatment system through the exhaust pipe at the kiln tail cover. The calcined high-temperature material enters the single-cylinder cooler, and is transported to the next process by the belt conveyor after cooling.


FAQ:
Q. Why choose you?
We have our own factory and we are a professional crusher manufacturer. We also have our own engineers who have State Council allowances.
Q: Are you a trading company or a manufacturer?
A: We are a factory.
Q: How long is your delivery time?
A: Generally 30 days, also according to the quantity.
If you have any needs, please feel free to contact us.

Our company

ZK is engaged in technology research and development, engineering consulting, equipment debugging, engineering contracting and related technical services for cement, building materials, mining, environmental protection, metallurgy, and chemical equipment manufacturing. The company was established in 1990, welcome to visit our company and workshop, we sincerely look forward to cooperating with you.
We will provide you with the most suitable products at reasonable prices.

No. Spec(m) Capacity Slope(%) Rev. Speed(r/min) Reducer Model Motor
Per hour(m3/h) Per Year (m3/a) Type Power(KW)
1 Preheat Kiln Φ1.25×18 2.95~3.94 18000~24000 4 1.0~5.0 ZQ500 YCT225-4A 11
Calcined Kiln Φ1.6×14 1.0~5.0 ZQ650 YCT225-4B 15
2 Preheat Kiln Φ1.55×20 4.36~5.81 26700~35000 4 1.0~5.0 ZQ650 YCT250-4A 18.5
Calcined Kiln Φ1.9×16 1.0~5.0 ZQ750 YCT250-4B 22
3 Preheat Kiln Φ1.8×22 5.9~7.87 36100~48000 4 1.0~5.0 ZQ750 YCT250-4B 22
Calcined Kiln Φ2.2×18 1.0~5.0 ZQ750 YCT250-4B 22
4 Preheat Kiln Φ2.0×24 7.42~9.88 45400~60000 4 1.0~5.0 ZSY224 YCT280-4B 30
Calcined Kiln Φ2.5×20 1.0~5.0 ZSY224 YCT315-4A 37
5 Preheat Kiln Φ3.0×20- Φ2.5×12 9.5~17.51 80400~107000 4 1.0~5.0 ZS1450 YCT355-4B 75
Calcined Kiln Φ3.0×22 1.0~5.0 ZS1250 YCT355-4A 55
