High Activity Energy Saving Lime Rotary Kiln Environmental Protection

High Activity Energy Saving Lime Rotary Kiln Environmental Protection

  • High Light

    Environmental Protection Lime Rotary Kiln

    ,

    50-1000TPD Lime Rotary Kiln

    ,

    high activity lime rotary kiln

  • Capcity
    50-1000TPD
  • Main Equipment
    Rotary Kiln, Preheater, Ball Mill, Bag Filter Etc
  • Application
    Active Lime / Quicklime / Hydrated Lime Production Plant
  • After Sale Service
    Engineers Available To Service Machinery Overseas
  • Installation
    Under Engineer Guidance
  • Equipment Condition
    New
  • Voltage
    Local Voltage
  • Price
    Competitive & Negotiable
  • Technology
    Preheater, Rotary Kiln, Vertical Cooler
  • Certification
    Certification
  • Place of Origin
    China
  • Brand Name
    ZK CORP
  • Certification
    ISO, CE
  • Model Number
    lime production plant
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Export standard container or as customers' requirements
  • Delivery Time
    30 Days
  • Payment Terms
    L/C, D/A, T/T
  • Supply Ability
    10 per monh

High Activity Energy Saving Lime Rotary Kiln Environmental Protection

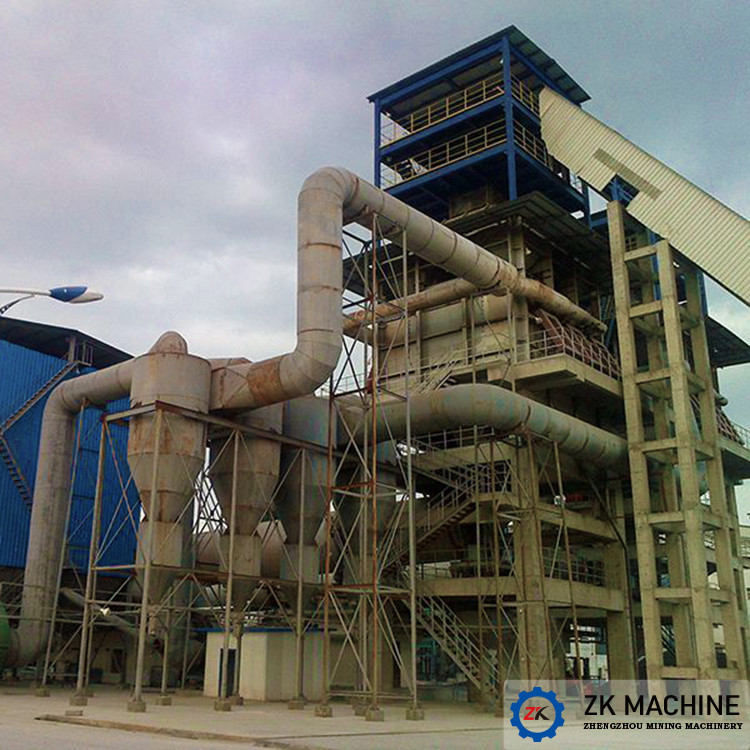

Introduction of active lime rotary kiln production line:
Active lime production equipment----Lime production line is a complete set of lime production equipment from feeding equipment, screening equipment, conveying equipment, calcining equipment, dust removal and unloading equipment. Rotary kiln calcined limestone with preheater and vertical cooler meets the production requirements of high efficiency, energy saving, environmental protection and high activity. Successful industrial application of vertical preheating of environmentally friendly and energy-saving activated limestone. Due to the significant reduction in fuel consumption and tail gas emissions, coupled with the use of pulse bag dust collectors to purify tail gas, not only the production cost and energy consumption are greatly reduced, but also the emissions during the calcination process are up to standard, and the environmental conditions are basically maintained.


Process flow of lime production line:

Step 1: The raw materials are crushed to a particle size between 10-40mm. The raw materials are discharged from the hopper to the vibrating feeder, and the raw materials <20mm are screened by the vibrating screen and then sent to the preheater.



Step 2: Rotary kiln calcining lime. The limestone in the preheater is preheated by hot air, and then discharged into the rotary kiln through the chute connecting the preheater and the kiln, and stays in the kiln for 1.5-2 hours for calcination. During this process, calcined at temperatures around 1300°C, the limestone decomposes and releases CO2 to complete the formation of quicklime.


Step 3: After the lime is cooled by the cooling equipment, it is discharged from the vibrating feeder at the bottom to the chain conveyor, and is lifted into lime in the storage hopper, which can be used for scheduling or transported to the hydration workshop.



Step 4: Use two dust filter systems. One is at the mouth of the kiln. After the dust is filtered by the bag filter, the clean gas is discharged into the air. The other is the dust in the lime storage hopper and the feeding part of the bucket elevator. The dust is discharged into the air after being filtered by a cloth bag.

Main advantages of quicklime plant/lime production line
1. With good quality and high output, it is suitable for large-scale activities and large-scale production of lime production lines.
2. The production is stable, and all production adopts negative pressure airflow, which is safer.
3. Simple structure, convenient control, convenient operation and maintenance.
4. Fine-grade limestone can be calcined, making full use of mine resources and reducing the loss of raw materials.
5. Low heat consumption per unit product. It is installed in the superheater of the shaft kiln and adopts limestone with exhaust gas temperature, which greatly reduces the fuel consumption.
6. It can make full use of industrial waste gas as the fuel for burning lime to reduce costs.
7. The kiln head adopts a vertical cooler integrated kiln head cover design. The construction area is small, the sealing performance is good, and the unsystematic discharge of hot exhaust gas is effectively avoided.


ZK is engaged in technology research and development, engineering consulting, equipment debugging, engineering contracting and related technical services in the fields of cement, building materials, mining, environmental protection, metallurgy, chemical equipment manufacturing and other fields. Welcome to visit our company and production workshop, we sincerely look forward to cooperating with you.
We will provide you with the most suitable product at the most reasonable price. If you have any needs, please feel free to contact us, we will reply you as soon as possible.



Specifications:

Capacity 200t/d 225t/d 250t/d 300t/d 400t/d 500t/d 600t/d 800t/d
Preheater Shape Hexagon Hexagon Octagon Octagon Octagon Decagon Dodecagon Dodecagon

Qty. Of

Top Silo

6 6 8 8 8 10 12 12
Qty. Of Hydraulic Pusher 6 6 8 8 8 10 12 12
Preheating Capacity (t) 600 600 800 800 800 1000 1600 1600
Rotary Kiln Size Φ2.8×42m Φ3.0×50m Φ3.2×50m Φ3.3×55m Φ3.6×55m Φ3.8×58m Φ4×60m Φ4.3×56m
Slope 3.50% 3.50% 3.50% 3.50% 3.50% 3.50% 3.50% 3.50%

Rotating Speed

(r/min)

0.3-1.8 0.3-1.8 0.3-1.8 0.3-1.8 0.3-1.8 0.3-1.8 0.3-1.8 0.3-1.8

Calcination Temperature

(℃)

1350 1350 1350 1350 1350 1350 1350 1350
Cooler Type Vertical Vertical Vertical Vertical Vertical Vertical Vertical Vertical
Qty Of Temperature Control Area 3 3 3 3 3 3 3 3

Qty. Of

Wind Tower

4+1 4+1 4+1 4+1 4+1 4+1 4+1 4+1
Size(m) 3.6×3.6 3.6×3.6 3.6×3.6 3.6×3.6 4.1×4.1 4.1×4.1 4.1×4.1 4.7×4.7

Output Temperature

(℃)

≤120 ≤120 ≤120 ≤120 ≤120 ≤120 ≤120 ≤120
Product Thermal Loss(kcal/kg) 5500 5400 5400 5400 5400 5400 5400 5000
Available Fuel Coke oven gas, mixed gas, natural gas, coal powder, low heating value coal gas
