Environmentally Friendly Lime Rotary Kiln 50-1000TPD Capcity

Environmentally Friendly Lime Rotary Kiln 50-1000TPD Capcity

Product Details:

Place of Origin: China
Brand Name: ZK CORP
Certification: ISO, CE
Model Number: lime production plant

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export standard container or as customers' requirements
Delivery Time: 30 Days
Payment Terms: L/C, D/A, T/T
Supply Ability: 10 per monh
Get Best Price Contact Now

Detail Information

Capcity: 50-1000TPD Main Equipment: Rotary Kiln, Preheater, Ball Mill, Bag Filter Etc
Application: Active Lime / Quicklime / Hydrated Lime Production Plant After Sale Service: Engineers Available To Service Machinery Overseas
Installation: Under Supervision Of Our Engineer Equipment Condition: New
Voltage: Local Voltage Production Capacity: 99.9%
Warranty: 12 Months Dimension(L*W*H): Customerized
High Light:

1000TPD Lime Rotary Kiln


Customerized 99.9% Lime Rotary Kiln

Product Description

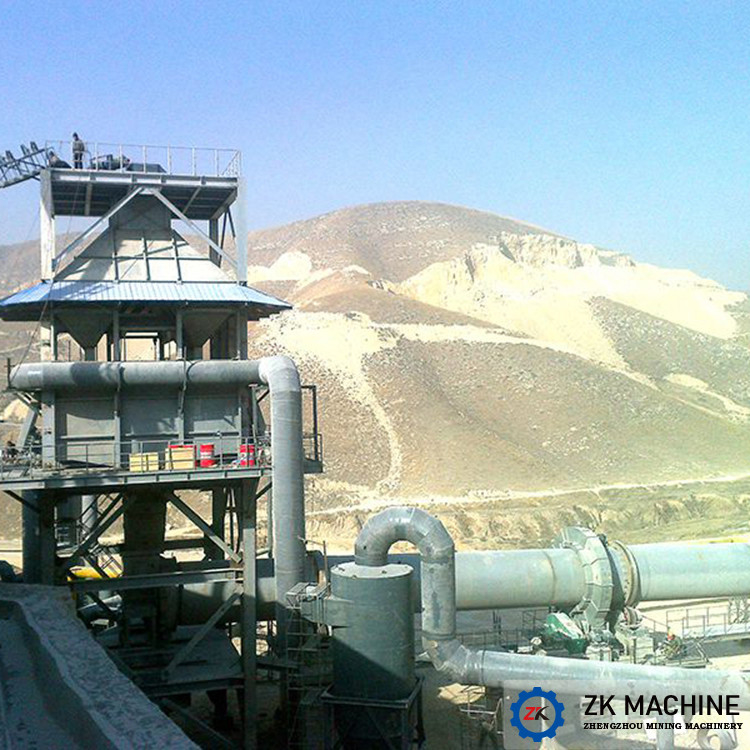

Introduction of active lime rotary kiln production line:
Active lime production equipment----Lime production line is a complete set of lime production equipment from feeding equipment, screening equipment, conveying equipment, calcining equipment, dust removal and discharging equipment. Rotary kiln calcined limestone with preheater and vertical cooler meets the production requirements of high efficiency, energy saving, environmental protection and high activity. Successful industrial application of vertical preheating of environmentally friendly and energy-saving activated limestone. Due to the significant reduction in fuel consumption and exhaust emissions, coupled with the use of pulse bag filter to purify exhaust gas, not only the production cost and energy consumption are greatly reduced, but the emissions during the calcination process are up to the standard, and the environmental conditions are basically maintained.


Main advantages of quicklime plant/lime production line
1. With good quality and high output, it is suitable for large-scale activities and large-scale production of lime production lines.
2. The production is stable, and all production adopts negative pressure airflow, which is safer.
3. Simple structure, convenient control, convenient operation and maintenance.
4. Fine-grade limestone can be calcined, making full use of mine resources and reducing the loss of raw materials.
5. Low heat consumption per unit product. Installed in the shaft kiln superheater, limestone with exhaust air temperature is used, which greatly reduces fuel consumption.
6. It can make full use of industrial waste gas as fuel for burning lime and reduce costs.
7. The kiln head adopts a vertical cooler integrated kiln head cover design. The construction area is small, the sealing performance is good, and the unsystematic discharge of hot exhaust gas is effectively avoided.


ZK is engaged in technology research and development, engineering consulting, equipment debugging, engineering contracting and related technical services in the fields of cement, building materials, mining, environmental protection, metallurgy, chemical equipment manufacturing and other fields. Rotary kiln can be divided into cement kiln, metallurgical chemical kiln and lime kiln according to different materials. Cement kilns are used to produce cement clinker, which can be divided into dry method and wet method. Metallurgical chemical kilns are widely used for magnetic roasting of lean iron ore in steel mills and oxidative roasting of chromium and nickel; supporting high alumina ore in refractory plants; roasting clinker and alumina in aluminum plants, and roasting chrome ore and chromium powder in chemical plants. Lime kilns are used for roasting active lime and light roasting dolomite in steel and ferroalloy plants. Welcome to visit our company and production workshop, we sincerely look forward to cooperating with you.
We will provide you with the most suitable product at the most reasonable price. If you have any needs, please feel free to contact us, we will reply you as soon as possible.


Capacity 200t/d 225t/d 250t/d 300t/d 400t/d 500t/d 600t/d 800t/d
Preheater Shape Hexagon Hexagon Octagon Octagon Octagon Decagon Dodecagon Dodecagon

Qty. Of

Top Silo

6 6 8 8 8 10 12 12
Qty. Of Hydraulic Pusher 6 6 8 8 8 10 12 12
Preheating Capacity (t) 600 600 800 800 800 1000 1600 1600
Rotary Kiln Size Φ2.8×42m Φ3.0×50m Φ3.2×50m Φ3.3×55m Φ3.6×55m Φ3.8×58m Φ4×60m Φ4.3×56m
Slope 3.50% 3.50% 3.50% 3.50% 3.50% 3.50% 3.50% 3.50%

Rotating Speed


0.3-1.8 0.3-1.8 0.3-1.8 0.3-1.8 0.3-1.8 0.3-1.8 0.3-1.8 0.3-1.8

Calcination Temperature


1350 1350 1350 1350 1350 1350 1350 1350
Cooler Type Vertical Vertical Vertical Vertical Vertical Vertical Vertical Vertical
Qty Of Temperature Control Area 3 3 3 3 3 3 3 3

Qty. Of

Wind Tower

4+1 4+1 4+1 4+1 4+1 4+1 4+1 4+1
Size(m) 3.6×3.6 3.6×3.6 3.6×3.6 3.6×3.6 4.1×4.1 4.1×4.1 4.1×4.1 4.7×4.7

Output Temperature


≤120 ≤120 ≤120 ≤120 ≤120 ≤120 ≤120 ≤120
Product Thermal Loss(kcal/kg) 5500 5400 5400 5400 5400 5400 5400 5000
Available Fuel Coke oven gas, mixed gas, natural gas, coal powder, low heating value coal gas
