Rounding Raw Material advanced technology machine Ball Screening Burr Material Equipment

Rounding Raw Material advanced technology machine Ball Screening Burr Material Equipment

  • High Light

    Rounding Raw Material Advanced Technology Machine

    ,

    AC Motor Advanced Technology Machine

    ,

    Ball Screening Burr Material Equipment

  • Product Name
    Advanced Technology Shaping Machine
  • Production Capacity
    5-45 (t/h)
  • Roller Diameter
    φ800-φ3000mm
  • Material
    Extruded Ball From A Pair Of Roll Pelletizer
  • Scope Of Application
    Sludge Ceramsite, Clay Ceramsite, And Shale Sludge Ceramsite.
  • Condition
    New
  • Motor Type
    AC Motor
  • Voltage
    220V/380V/440V
  • Solution
    Customized
  • Spare Parts
    Supply All Using Life
  • Place of Origin
    CHINA
  • Brand Name
    ZK
  • Certification
    ISO,CE
  • Model Number
    Rotary drum granulator
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    MEET THE SHIPPMENT REQUIRMENTS
  • Delivery Time
    30DAYS
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    30 Set / Sets per Month

Rounding Raw Material advanced technology machine Ball Screening Burr Material Equipment

Plastic machine equipment introduction:

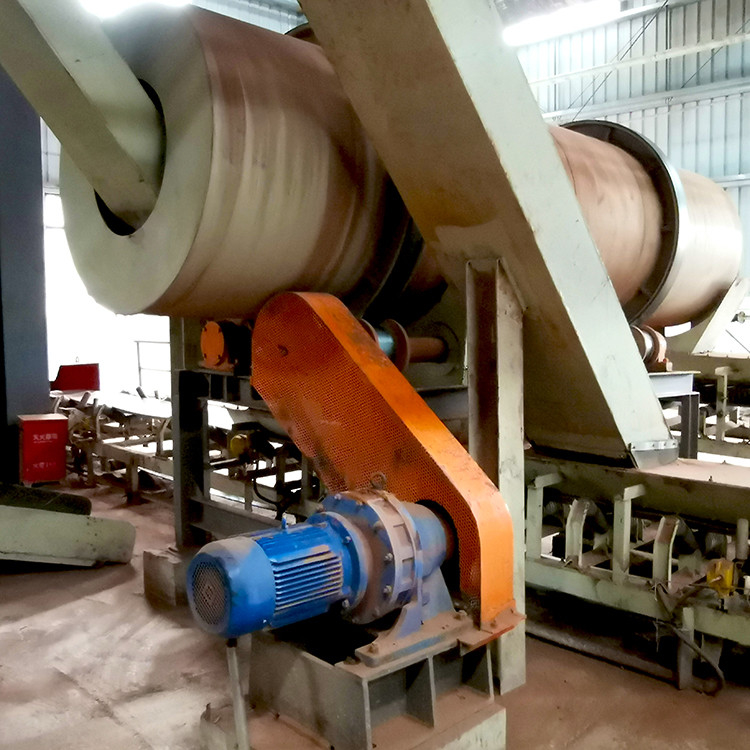

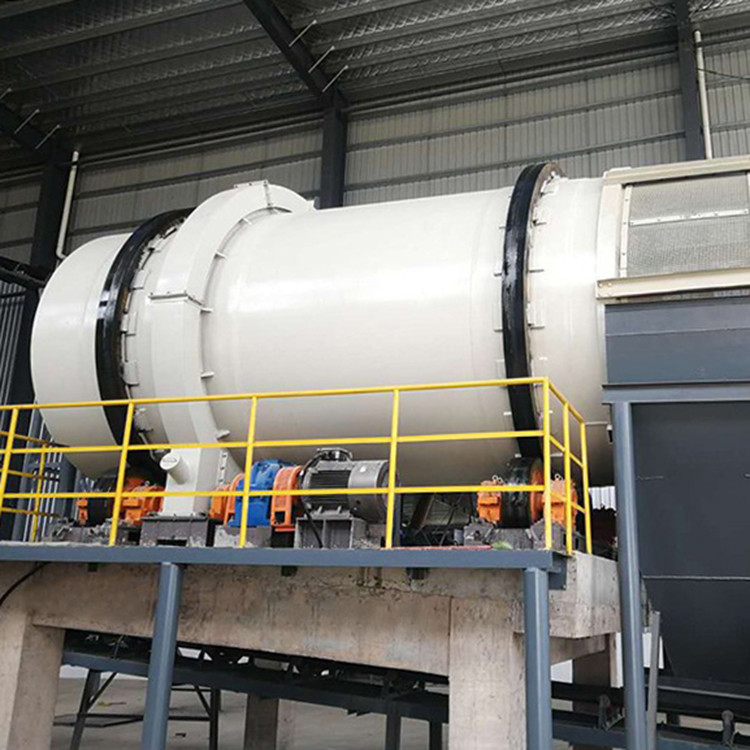

Shaping machine-------Secondary granulator is a secondary granulation equipment for rounding, screening, deburring and chipping of the raw material balls produced by the roller granulator. The equipment structure is mainly composed of a transmission device, a support device and a roller. The shaping machine has the characteristics of stable operation, low noise, high efficiency, reliable performance and convenient maintenance.



Work instruction:

The drum is installed at a characteristic angle, and a high-speed stirring rotor is installed at its eccentric position. When the drum rotates clockwise at low speed, the material is continuously fed into the motion track of the stirring blade rotating counterclockwise at high speed. With the help of the rotation of the drum and the action of the scraper, a characteristic three-dimensional space flow field conducive to mixing is formed, so that the material can be fully turned and mixed in a very short time. High efficiency and optimum uniformity can be achieved.



ZK offer a one-year warranty to make sure your machine runs consistently. We always maintain a certain level of spare parts inventory, which means replacement parts can be shipped to you immediately.







Specifications:

Model Cylinder

(kW)

Power



(mm)

Overall Dimensions

(m³)

Volume

(r/min)

Rotating Speed

Slope (°)
Ø1×6 Ø1×6 5 3.5 5.5 6000×1358×2535
Ø1×15 Ø1×15 5 3.5 7.5 15000×1358×2535
Ø1.2×15 Ø1.2×15 5 3.5 15 15000×1558×2735
Ø1.2×20 Ø1.2×20 5 3.5 15 20000×1558×2735
Ø1.5×10 Ø1.5×10 5 3.5 15 10000×1858×3035
Ø1.5×14 Ø1.5×14 5 3.5 15 14000×1858×3035
Ø1.5×18 Ø1.5×18 5 3.5 18.5 18000×1858×3035
Ø1.8×16 Ø1.8×16 3-5 3.5 22 16000×1858×3035
Ø1.8×20 Ø1.8×20 3-5 3.5 22 20000×2158×3335
Ø2.0×16 Ø2.0×16 3-5 3 22 16000×3340×3420
Ø2.0×20 Ø2.0×20 3-5 3 30 20000×3340×3420
