Place of Origin:
CHINA
Brand Name:
ZK
Certification:
ISO,CE
Model Number:
Rotary drum granulator
Video
Video
Plastic machine equipment introduction:

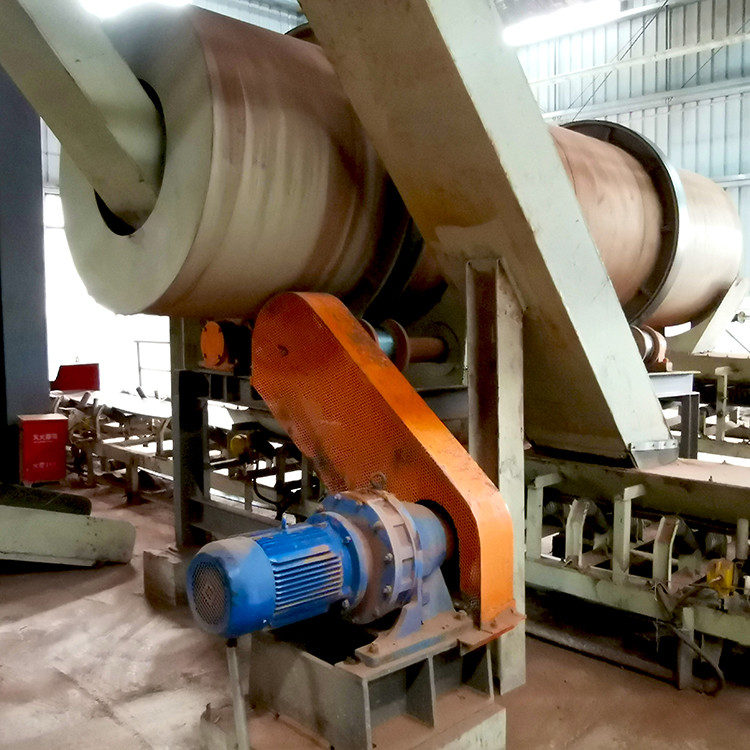

Shaping machine-------Secondary granulator is a secondary granulation equipment that rounds the raw material balls produced by the roller granulator, sieves, removes burrs and leftovers. It is mainly composed of transmission device, support device and roller.
Outstanding advantages:
1. The whole process of mixing is carried out in a fully enclosed drum, and the inside of the drum is in a state of slight negative pressure, no dust pollution, clean and environmentally friendly;
2. The inclined structure design adopts an optimized inclination angle, so that the mixture can generate a specific up and down inclined flow field.
3. The inclined structure design can achieve satisfactory mixing effect regardless of the amount of materials;
4. The drum adopts low-speed design, with wear-resistant lining plate on the inner wall, less equipment wear and long service life;
5. The rotor stirring blade is treated with special surface and has high wear resistance. At the same time, the replacement of rotor blades is simple and convenient.
We have advanced production technology and management. The production technology of our professional engineers and after-sales team can provide convenient services for our customers.
Specifications:
| Model | Cylinder |
(kW) Power |
(mm) Overall Dimensions |
||
|
(m³) Volume |
(r/min) Rotating Speed |
Slope (°) | |||
| Ø1×6 | Ø1×6 | 5 | 3.5 | 5.5 | 6000×1358×2535 |
| Ø1×15 | Ø1×15 | 5 | 3.5 | 7.5 | 15000×1358×2535 |
| Ø1.2×15 | Ø1.2×15 | 5 | 3.5 | 15 | 15000×1558×2735 |
| Ø1.2×20 | Ø1.2×20 | 5 | 3.5 | 15 | 20000×1558×2735 |
| Ø1.5×10 | Ø1.5×10 | 5 | 3.5 | 15 | 10000×1858×3035 |
| Ø1.5×14 | Ø1.5×14 | 5 | 3.5 | 15 | 14000×1858×3035 |
| Ø1.5×18 | Ø1.5×18 | 5 | 3.5 | 18.5 | 18000×1858×3035 |
| Ø1.8×16 | Ø1.8×16 | 3-5 | 3.5 | 22 | 16000×1858×3035 |
| Ø1.8×20 | Ø1.8×20 | 3-5 | 3.5 | 22 | 20000×2158×3335 |
| Ø2.0×16 | Ø2.0×16 | 3-5 | 3 | 22 | 16000×3340×3420 |
|
Ø2.0×20 |
Ø2.0×20 | 3-5 | 3 | 30 | 20000×3340×3420 |
