Solid Waste And Hazardous Waste Rotary Kiln Environmental Protection Incineration Waste Treatment

Solid Waste And Hazardous Waste Rotary Kiln Environmental Protection Incineration Waste Treatment

  • High Light

    Environmental Protection Waste Rotary Kiln

    ,

    Local voltage Solid Waste Rotary Kiln

    ,

    Industrial incineration waste treatment

  • Product Name
    Industrial Waste Incineration Complete
  • After Sale Service
    Engineers Available To Service Machinery Overseas
  • Model
    1.6x32m-4.7x72m
  • Material
    Sludge Waste, Municipal Waste
  • Voltage
    Local Voltage
  • Motor Type
    AC Motor
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    1.6x32m-4.7x72m

Solid Waste And Hazardous Waste Rotary Kiln Environmental Protection Incineration Waste Treatment

Rotary Kiln Incinerator Introduction:
Rotary incinerator is a widely used incineration equipment in the field of international industrial waste treatment, its market share in the field of industrial waste incineration is really high, As a specific area for burning hazardous wastes , the rotary incinerator has wide adaptability to complex industrial waste and medical waste, and it’s stable and convenient to operate, of course, the equipment maintenance is simple, and so on. Therefore, it is the most widely used in the field of international hazardous waste incineration. It is a reliable and effective means to realize the harmless, reduction and recycling of wastes.

Rotary Kiln Incinerator Application:
It is widely used in the field of industrial waste, medical waste, municipal solid waste, and so on.


Rotary Kiln Incinerator Advantages:

1. Combining patented technology: The traditional two combustion chamber is evolved into a two combustion furnace. The burnout rate of ash is improved. The combustion efficiency of rRotary Kiln Incinerator is improved. At the same time, it has the functions of slag discharging at normal temperature, crushing slag and sealing, locking air, etc.

2. Low cost: High temperature material contact refractory material. Replacing lining is convenient;
3. Ensure that harmful gases do not leak: Good sealing measures and furnace negative pressure.
4. Adaptability to incineration: Solid waste ,liquid, colloid, and gas can be incinerated simultaneously.


Specifications:



Hazardous waste rotary kiln for waste incinerationφ2.6m*13.2 technical parameter.
Inner diameter of shell 2600mmShell length 13200mm
Downstream arrangement, that is, the direction of material flow is consistent with the direction of smoke flow, the angle of the kiln body is 1.5 degrees.
Variable frequency speed control of rotary kiln0.1-2.2r/min
Drive modeSingle side gear drive
Main Motor30kw
Kiln temperature:850-1200 degreeSurface temperature of kiln shell: 180 degree
Expansion modeLinear free expansion at both ends
Total equipment weightapprox. 54.5t
★Customized waste incineration rotary kiln can be provided according to the customers' different industries

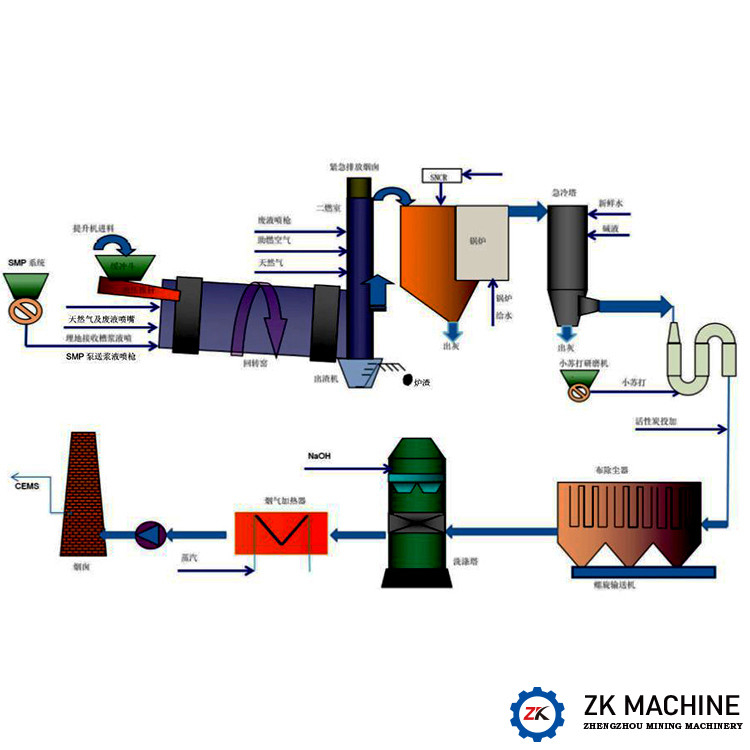

Rotary Kiln Incinerator Working Principle:
Rotary Kiln Incinerator can deal with solid and liquid waste simultaneously, solid waste is sent into rotary kiln by special conveying equipment, liquid waste is sprayed into the feed end of the Rotary Kiln Incinerator body by means of an efficient atomizing device, the waste in the rotary kiln should experience the process of water evaporation, volatilization analysis, ignition and combustion process, The ash portion is discharged from the bottom of the second combustion chamber, the generated flue gas enters the second combustion chamber, blended with two combustion air in the second compartment, complete combustion of flue gas, achieve exhaust safety standards discharge.
