PLC Control Incineration Waste Treatment Rotary Kiln System Equipment

PLC Control Incineration Waste Treatment Rotary Kiln System Equipment

  • High Light

    PLC Control incineration waste treatment

    ,

    CE hospital medical waste incinerator

    ,

    Rotary Kiln wastewater incinerator

  • Product Name
    Industrial Waste Incineration Complete
  • After Sale Service
    Engineers Available To Service Machinery Overseas
  • Model
    1.6x32m-4.7x72m
  • Material
    Sludge Waste, Municipal Waste
  • Voltage
    Local Voltage
  • Motor Type
    AC Motor
  • Power
    According To The Solution
  • Weight
    According To The Solution
  • Control
    PLC
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    1.6x32m-4.7x72m

PLC Control Incineration Waste Treatment Rotary Kiln System Equipment

Product description
Hazardous waste solid waste rotary kiln mainly treats waste with one or more hazardous properties such as toxic, explosive, flammable and corrosive. The disposal of hazardous waste is highly valued at home and abroad. Currently, there are two main ways to dispose of hazardous waste: incineration and landfill. Among them, the hazardous waste solid waste rotary kiln incineration technology is currently widely used hazardous waste treatment technology, and is becoming an important way for the harmless treatment of hazardous waste.



【Applicable materials】

Industrial comprehensive hazardous waste, medical waste, petroleum, chemical, pesticide and other industries of various solid waste, waste liquid, waste gas. Municipal domestic waste, etc.

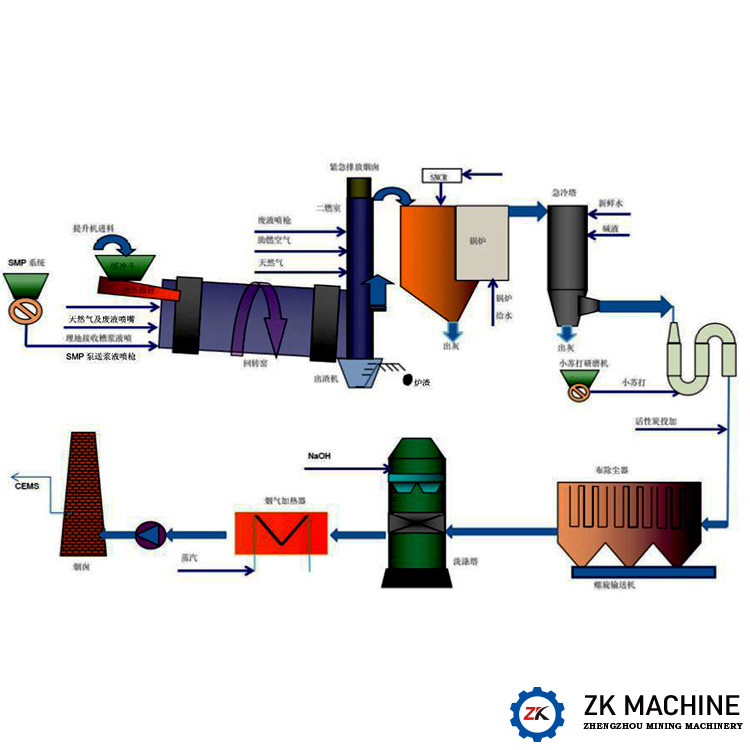

Process flow

Pretreatment feeding system - rotary kiln + secondary combustion chamber combustion system - waste heat recovery system - waste gas purification system - flue gas emission incineration system: including hopper, rotary kiln, secondary combustion chamber and combustion, fan, etc. Auxiliary equipment. Waste heat recovery system: including waste heat boiler and boiler auxiliary system equipment. Flue gas purification system: Cool the flue gas in the incinerator, remove harmful substances, and discharge it after meeting the emission requirements. Including quench tower, dust collector, scrubber, flue gas heater, activated carbon supply system, ash removal system, etc. Flue gas emission system: including induced draft fan, chimney, etc.


We will load different size packages according to different machine sizes, the normal package is wooden case. If exported to European countries, the wooden frame is fumigated. If the container is too tight, we will use PE film according to customer's special requirements.



Specifications:



Hazardous waste rotary kiln for waste incinerationφ2.6m*13.2 technical parameter.
Inner diameter of shell 2600mm Shell length 13200mm
Downstream arrangement, that is, the direction of material flow is consistent with the direction of smoke flow, the angle of the kiln body is 1.5 degrees.
Variable frequency speed control of rotary kiln 0.1-2.2r/min
Drive mode Single side gear drive
Main Motor 30kw
Kiln temperature:850-1200 degree Surface temperature of kiln shell: 180 degree
Expansion mode Linear free expansion at both ends
Total equipment weight approx. 54.5t
★Customized waste incineration rotary kiln can be provided according to the customers' different industries
