30kw Industrial Incineration Equipment calcination rotary kiln Single Side Gear Drive

30kw Industrial Incineration Equipment calcination rotary kiln Single Side Gear Drive

  • High Light

    30kw motor rotary kiln electric furnace

    ,

    municipal waste calcination rotary kiln

    ,

    AC Motor calcination rotary kiln

  • Product Name
    Industrial Waste Incineration Complete
  • After Sale Service
    Engineers Available To Service Machinery Overseas
  • Model
    1.6x32m-4.7x72m
  • Material
    Sludge Waste, Municipal Waste
  • Voltage
    Local Voltage
  • Motor Type
    AC Motor
  • Main Equipment
    Crusher,Conveyor,Preheater,Rotary Kiln,Cooler,Dust Collector
  • Key Selling Points
    Long Service Life
  • Showroom Location
    None
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    1.6x32m-4.7x72m

30kw Industrial Incineration Equipment calcination rotary kiln Single Side Gear Drive

Product description of solid waste and hazardous waste rotary kiln
Hazardous waste solid waste rotary kiln mainly treats waste with one or more hazardous properties such as toxic, explosive, flammable and corrosive. Among them, the hazardous waste solid waste rotary kiln incineration technology is currently widely used hazardous waste treatment technology, and is becoming an important way for the harmless treatment of hazardous waste.

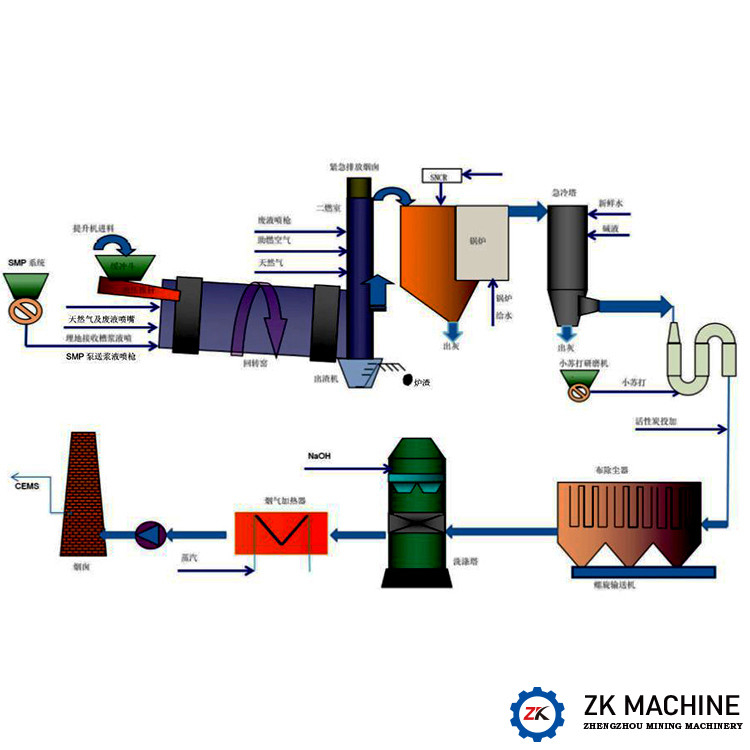

10~100t/d Solid Hazardous Waste Incineration Complete System
Characteristics of Solid Hazardous Waste Incineration System

1. It can treat three kinds of wastes of waste water/waste gas/waste liquid at the same time;
2. The waste liquid is fed by micron atomization, which is completely burned and saves fuel consumption;
3. Waste heat recovery generates benefits;
4. DCS control, high degree of automation.



Henan Zhengzhou ZK Machinery Co., Ltd. was founded in 1956 and is located in Xingyang City, Zhengzhou City, Henan Province, specializing in the production of metallurgical machinery. It covers an area of ​​more than 60,000 square meters, with various construction areas of 35,000 square meters. The factory has cast iron, cast steel, forging, heavy machine tool processing, riveting, heat treatment and other workshops, complete equipment, advanced testing methods, and strong technical force, which has laid a good foundation for reliable production.

The company's main products are: ball mill, rotary kiln, vertical preheater, cooler, crusher, metallurgical oven, magnetic separator, flotation machine, classifier, feeder, bucket elevator, preheater, dust collector related equipment such as elevators, elevators, and dryers. Metallurgy, cement, lime, mineral processing, refractory materials, chemical industry. The products of Henan Zhengzhou ZK Machinery Co., Ltd. have been sold to all provinces of the country, and exported to Russia, South Korea, Vietnam, Malaysia, Nepal, Bangladesh, Mexico, Armenia, Africa, South America and other countries and regions.



Specifications:



Hazardous waste rotary kiln for waste incinerationφ2.6m*13.2 technical parameter.
Inner diameter of shell 2600mm Shell length 13200mm
Downstream arrangement, that is, the direction of material flow is consistent with the direction of smoke flow, the angle of the kiln body is 1.5 degrees.
Variable frequency speed control of rotary kiln 0.1-2.2r/min
Drive mode Single side gear drive
Main Motor 30kw
Kiln temperature:850-1200 degree Surface temperature of kiln shell: 180 degree
Expansion mode Linear free expansion at both ends
Total equipment weight approx. 54.5t
★Customized waste incineration rotary kiln can be provided according to the customers' different industries
