Mining Metallurgy 850tph Electromagnetic Vibratory Feeder

Mining Metallurgy 850tph Electromagnetic Vibratory Feeder

850tph Electromagnetic Vibratory Feeder

15t/h Electromagnetic Vibratory Feeder

850tph small vibratory feeder

Place of Origin:

China

Certification:

ISO,CE

Model Number:

GZ Series

Contact Us
Request A Quote
Product Details
Brand Name:
ZK Corp
Product Name:
GZ Series Electromagnetic Vibrating Feeder
Model:
GZ1-GZ9
Capacity:
15-850t/h)
Installation:
Under Supervision Of Our Engineer
After Sale Service:
Engineers Available To Service Machinery Overseas
Type:
Mine Sieving Mesh
Motor Type:
AC Motor
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
MEET THE SHIPMENT REQUIRMENTS
Delivery Time
30DAYS
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10 PER MONTH
Product Description

Light Weight Mining/ Metallurgy GZ Series Electromagnetic Vibrating Feeder



GZ Series Electromagnetic Vibrating Feeder Description:
Vibrating feeder is used to feed block or granule materials from material storage to a charging device evenly and continuously. Used to achieve an even feeding for crushers in sandstone production lines, and to make a rough screening of materials, this equipment is widely used in combined operation with crushing and screening machines in a range of industries



GZ Series Electromagnetic Vibrating Feeder Features:
1) Stable vibrating
2) Reliable operation, long usage life
3) Adjustable excitation force and
4) Stable and convenient control of flow
5) Vibrating motor as excitation source
a) Low noise
b) Low power consumption
6) Good adjusting performance and without material splash
7) Simple structure
8) Convenient to install and maintain
9) Light weight, small size
10) Enclosed type can prevent dust pollution (optional)



GZ Series Electromagnetic Vibrating Feeder Technical Data:



Model Capacity(t/h) Max Feed Size(mm) Motor Power(kw)
Level -10°
GZ1 5 7 50 0.06
GZ2 10 14 50 0.15
GZ3 25 35 75 0.2
GZ4 50 70 100 0.45
GZ5 100 140 150 0.65
GZ6 150 210 200 1.5
GZ7 250 350 250 3
GZ8 400 560 300 4
GZ9 600 840 350 5.5

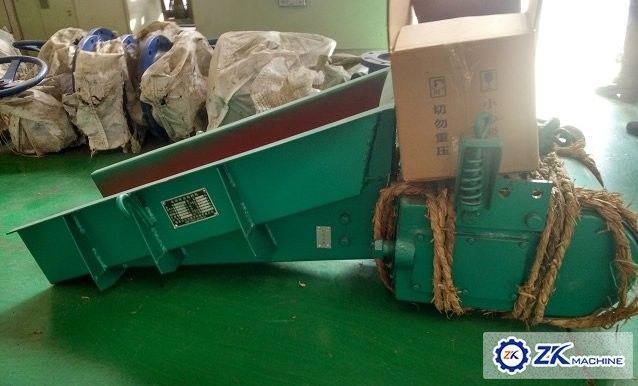

Mining Metallurgy 850tph Electromagnetic Vibratory Feeder 0

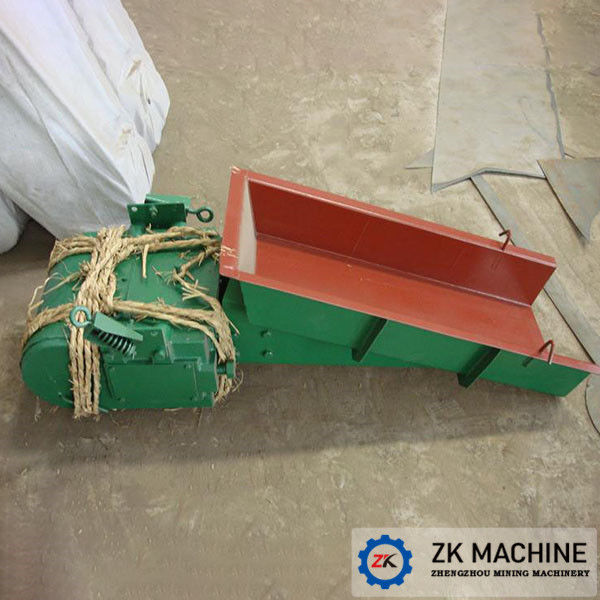

Mining Metallurgy 850tph Electromagnetic Vibratory Feeder 1


GZ Series Electromagnetic Vibrating Feeder Our Advantages:
It can evenly, continuously and quantificationally send the material with shape of block and grain form storage bin to the feeder. For instance, the feeding of belt conveyor, bucket elevator, sieving machines, crusher and grinder, and the automatic burdening and packaging, etc. It can be used in the process of automatic control to realize the automation of production.
1. Adopt Silicon controlled rectifier half-wave rectifier control method, when operating, automatic control can be realized by adjust the development angle of silicon controlled.
2. When operating, material will been throw up continuous, then jumping forward with parabolic trajectory, so that have less abrasion to screen cell.
3. Widely application, alloy screen cell feeder can used for conveying wear and corrosive materials, sealing structure feeder can used for high pollution and easy to dust material.
4. Feeder with features like small overall size, light weight, simple structure, no need lubrication and easy to maintenance.



GZ Series Electromagnetic Vibrating Feeder Working Principle:
GZ series Electromagnetic Vibration Feeder is mainly composed with material tank, electromagnetic vibration exciter, damper spring and control box, the features are showing as below:
1. Material Tank
Tank has been welding by wear-resistance steel plate, with high strength and rigidity, mainly used for conveying.
2. Electromagnetic Vibration Exciter
Exciter mainly composed with electromagnet (Iron core and coil), armature and the main vibration spring between each. Exciter is the vibration source, which can adjust the strength of vibration force by control device.
3. Damper Spring
Damper spring is steel make spiral spring, with high reliability and stability.
4. Control Box
Mainly used for adjusting the discretion of the rectifier voltage to realize the control for vibration force.
