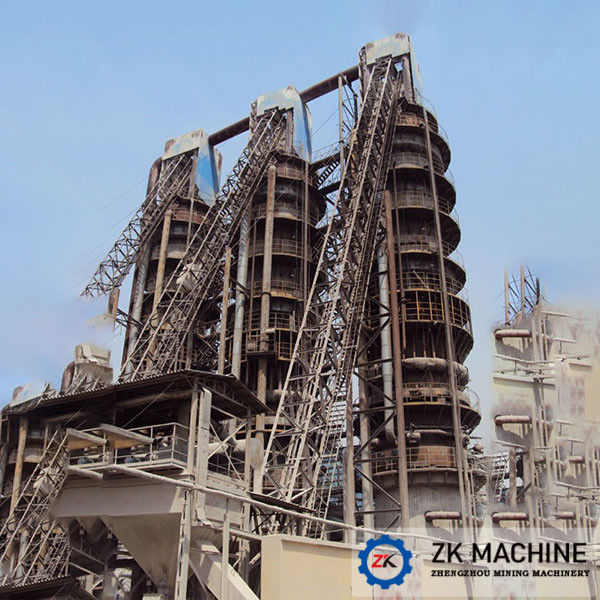

100-500 Tons Per Day Vertical Shaft Lime Kiln / Mini Lime Kiln For Lime Plant
Introduction of Lime Vertical Shaft Kiln :
Lime Vertical Shaft Kiln is mainly used for metallurgy, building materials, ores and other mineral materials, heating and calcining. Such as ceramic sand, bauxite, limestone, cement, fly ash magnesium aluminum hydroxide, aluminum products, alumina refractory materials such as mineral particles and the heating and calcined powder.
Lime Vertical Shaft Kiln Advantages:
1.The shell of Lime Vertical Shaft Kiln use four layer refractory in vertical masonry, good effect of thermal insulation, the temperature of shell will be controlled higher 60℃ than environment, save energy remarkably.
2.Long service life of refractory, the material not directly crash the work surface of refractory, but its fraction with work surface by gravity setting. Thus it greatly reduces the wear rate of refractory, the refractory will be used in 6-10 years in normally.
3. Vertical Shaft Kiln Less cover area, because the vertical kiln in vertical layout, feeding use the single bucket elevator in high angle layout, each functional area is decorated compact, greatly reduces the cover area.
Packaging & Shipping
Packaging Detail : The main machinery is in nude packing,and spare parts in Wooden or steel box standard export packing, suitable for long distance delivery.
Delivery Detail:within 30days after your payment
Lime Vertical Shaft Kiln Technical Parameters:
| Technical Parameters Of Vertical Klin (Mixed Fuel) | |||||||
| Capacity(t/d) | Effective Volume | Effective Height | Effective Section | Limestone Size | Heat Consumption | CaO | Activity |
| (m3) | (m) | Dia.(m) | (mm) | (kJ/kg) | (%) | (mL) | |
| 100 | 98 | 20 | Ø2.5 | 30~60/40~80 | <4600 | >90 | >300 |
| 120 | 141 | 20 | Ø3.0 | 30~60/40~80 | <4600 | >90 | >300 |
| 150 | 202 | 21 | Ø3.5 | 30~60/40~80 | <4500 | >90 | >300 |
| 200 | 301 | 24 | Ø4.0 | 30~60/40~80 | <4500 | >90 | >300 |
| 300 | 397 | 25 | Ø4.5 | 30~60/40~80 | <4400 | >90 | >300 |
| 400 | 491 | 25 | Ø5.0 | 30~60/40~80 | <4200 | >90 | >300 |
| 500 | 735 | 26 | Ø6.0 | 30~60/40~80 | <4200 | >90 | >300 |
| Remarks: All above data are for reference only. | |||||||
| Technical Parameters Of Vertical Lime Kiln (Fuel: Gas) | |||||||
| Capacity(t/d) | Effective Volume | Effective Height | Effective Section | Limestone Size | Heat Consumption | CaO | Activity |
| (m3) | (m) | Dia. or L×W(m) | (mm) | (kJ/kg) | (%) | (mL) | |
| 50 | 70 | 20 | Ø2.0 | 30~60/40~80 | <4600 | >90 | >300 |
| 70 | 80 | 20 | Ø2.5 | 30~60/40~80 | <4600 | >90 | >300 |
| 80 | 100 | 20 | Ø2.5 | 30~60/40~80 | <4500 | >90 | >300 |
| 100 | 120 | 20 | Ø2.7 | 30~60/40~80 | <4500 | >90 | >300 |
| 120 | 140 | 20 | Ø3.0 | 30~60/40~80 | <4400 | >90 | >300 |
| 130 | 150 | 21 | Ø3.0 | 30~60/40~80 | <4200 | >90 | >300 |
| 150 | 200 | 20 | 2.5×4.5 | 30~60/40~80 | <4200 | >90 | >300 |
| Remarks: Above data are for reference only, and suitable for Vertical Kiln which use low heat fuel. Utilization coefficient of Vertical Kiln which use high heat fuel is higher. | |||||||
Lime Vertical Shaft Kiln Main Advantage:
The Lime Vertical Shaft Kiln manufactured by ZK group gains the advantages such as, environmental protection, energy saving, high machanization and automaticity.
1. Modern Technology: Lime Vertical Shaft Kiln adopts the modern technology, making full use of energy, especially pollution gas ( such as conventer gas, blast furnace gas, calcium carbide furnace tail gas) as the energy, turning waste into wealth.
2. Environmentally Friendly: Lime Vertical Shaft Kiln protect the environment, and produce the high quality lime with lowest cost. To use this new technology enterprise, economic benefits have increased significantly.
3. Minimum decrepitation of solid products and minumum erosion of refrectory linings due to slight movement of particles relative to each other
4. Less Cover Area: because the vertical kiln in vertical layout, feeding use the single bucket elevator in high angle layout, each functional area is decorated compact, greatly reduces the cover area.
5. Energy Saving: The shell of Lime Vertical Shaft Kiln use four layer refractory in vertical masonry, good effect of thermal insulation, the temperature of shell will be controlled higher 60℃ than environment, save energy remarkably.
6. Long service life of refractory. The material is not directly crash the work surface of refractory, but its fraction with work surface by gravity setting. Thus it greatly reduces the wear rate of refractory, the refractory will be used in 6-10 years in normally.
