Cement Air Duct Cleaning 67300m3/H Dust Collection Equipment

Cement Air Duct Cleaning 67300m3/H Dust Collection Equipment

67300m3/H Dust Collection Equipment

Cement Dust Collection Equipment

67300m3/H Bag Filter Dust Collector

Place of Origin:


Brand Name:



CE ISO Certification

Model Number:

According to different models

Contact Us
Request A Quote
Product Details
Product Name:
Cement Industrial Bag Filter Dust Collector
Filtration Area:
935-4361 (㎡)
Cleaning Method:
Air Duct Cleaning
Cement Industrial
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Spare Parts:
Supply All Using Life
High Degree Of Automation
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Packaging Details
Export standard container or as customers' requirements
Delivery Time
30 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 Set / Sets per Month
Product Description

Cement Industrial Bag Filter Dust Collector / Air Duct Cleaning Dust Collection Equipment


Bag Filter Dust Collector Introduction:
Pusle Jet Bag Filter Dust Collector is a kind of high efficient purification equipment which adopts advanced ash removal technology, and it main characteristics are large gas handling capacity, good purification effect, reliable operation, simple structure, small amount of maintenance and so on. Bag Filter Dust Collector is especially suitable for the collection of the non-fibrous dust that is small and dry.


Bag Filter Dust Collector Working Principle:
Bag filter is composed of supporting structure, dust bucket, middle box, upper box, filter bag, frame, injection and clean device, PLC control system. Middle box has many compartment, when working, the air content dust will injected to each dust hopper, The big size dust will drop in the bottom of the bucket due to lower air speed and impact by bucket. The fine size dust will float to each bags, and separate at outside of the bags, then drop to the bottom hopper, the cleaned air will release air through the exhaust pipe.


Causes of Damage to the Dust Collector Filter Bags:
As the main component of the dust collector, the filter bags of the dust collector can not only capture the fine dust, purify the flue gas, but also help the waste gas recycling. The damage and replacement of the filter bag during use is also compared.

The Main Reasons For The Damage Of The Filter Bags Are As Follows Aspect:
1. The temperature of dusty gas is too high
If the surface thickness of the initial layer is not enough, the flue gas entering the sparks or the dust heating will easily cause holes in the filter bags.
2. Uneven distribution of dust and smoke by the dust collector
If the air current impact on the filter bag of the dust collector exceeds other parts, it will cause the part to wear faster and greatly reduce the placement of the filter bags.
3. The filter bags spacing is too small
The filter bags of the dust collector is too small in the design time, or the bag cage is deformed and bent during use, etc., which will cause the filter bags to swell due to friction during dust removal.



Bag Filter Dust Collector Specifications:

Model PPC128-6 PPC128-9 PPC128-10 PPC128-2×6 PPC128-2×7 PPC128-2×8
Volume(m³/h) 67300 100900 112100 134600 157000 179400
Air speed(m/min) 1.2-2.0(Speed varies at different dust points)
Filtration area(㎡) 935 1402 1558 1869 2181 2492
Net filtration area(㎡) 779 1246 1402 1713 2025 2336
No. of bag(pc) 768 1152 1280 1536 1792 2084
Resistance(Pa) 1470-1770
Minus pressure(Pa) 7000
Dust content at inlet(g/m³) <1300
Dust emission(g/m³) ≤0.1
Compressed air Pressure(Pa) (5-7)×105
  Air consumption 3.6 5.4 6 7 8.3 9.5
Pulse valve Qty(pc) 12 18 20 24 28 32
Size 2-1/2″
Elevation valve Qty(pc) 6 9 10 12 14 16
  Size(mm) Valve Φ725,air tank Φ100
Discharge device YJD-26 Outlet 300×300mm Capacity 24m³/h Double flap valve 305×915
Screw conveyor Model Dia. Φ300,capacity 21m³/h N/A
Gearbox XWD2.2-5-1/43,power 2.2Kw N/A
Air slide Air slide 250mm,flow rate 2.0m³/㎡, Pressure 6860pa,If the dust content exceeds 700g/m³ at inlet, bag filter with big screw conveyor should be considered.
Bag size and material Dia.×lengthΦ130×3050,Gross weight of polyethylene felt 450g/㎡,temperature 120℃
Insulation area(㎡) 125 196 205 223 247 262
Total weight(approx.)(Kg) 24120 31680 34680 43920 52680 60000
Note 1: Net filtration area means the area of one chamber during dust removing.
2: The compressed air consumption is based on supply of compressed air pipe from an air compression station. The consumption should be considered to be 1.3 times more if the supply is provided by an independent air compressor.

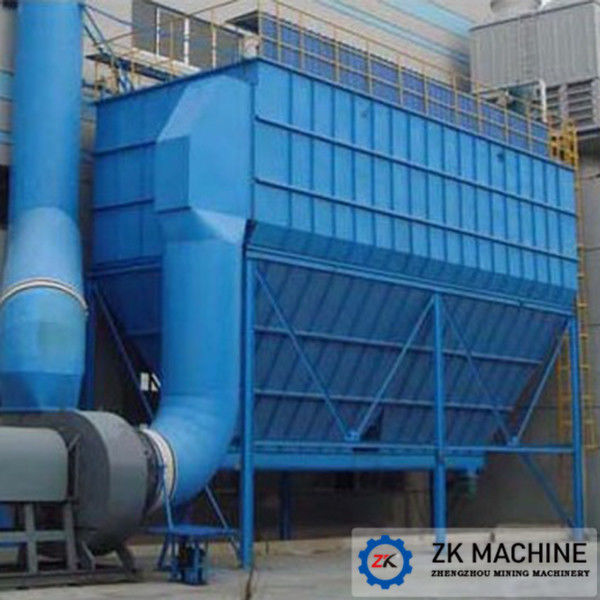

Cement Air Duct Cleaning 67300m3/H Dust Collection Equipment 0

Cement Air Duct Cleaning 67300m3/H Dust Collection Equipment 1


4. The gap between the filter bags and the bag cage is too large or too small
The filter bags is too close to the bag cage, and the expansion of the filter bag is limited during dust removal, which will cause the dust removal to be unclean, the equipment operation resistance is large, it will speed up the dust removal frequency or increase the blowing force, thus affecting the service life of the filter bags.
5. The filter wind speed is too high
If the wind speed is too high, it will cause the dust to abrade the filter bags more strongly, and the material of the filter bag will be damaged, which will affect the filtering effect and service life.
6. Excessive accumulation of ash inside the ash hopper
Excessive accumulation of ash in the ash hopper will cause excessive dust content in the flue gas in the smoke chamber and accelerate the wear of the filter bag.
7. Material of filter bags
According to the operating conditions of the dust collector, select the suitable filter bag for its working conditions.
8. The bag cage welding is not standardized
The bag cage is a steel wire welded structure, and all welds and joints must not have sharp corners or burrs, which will damage the filter bags. When the dust collector is used, the bag cage is kept in a vertical state and cannot be bent or deformed during use.
