ultrafine powder Feed 25mm 100t/H Ball Mill Grinder

ultrafine powder Feed 25mm 100t/H Ball Mill Grinder

  • High Light

    100t/H Ball Mill Grinder

    ,

    Feed 25mm Ball Mill Grinder

    ,

    100t/H overflow ball mill

  • Name
    Horizontal/Vertical Raw Mill Raw Ball Mill Grinder
  • Application
    Cement, Calcium Carbonate, Bauxite Etc.
  • Type
    Horizontal/Vertical Raw Mill
  • Capacity
    1.5-100(t/h)
  • Feed Size
    5-25(mm)
  • Output Size
    0.05-0.45(mm)
  • Shipping Port
    Shanghai, Qingdao, Tianjin
  • Voltage
    Local Voltage
  • Installation
    Under Supervision Of Our Engineer
  • Warranty
    12 Months
  • Place of Origin
    china
  • Brand Name
    ZK
  • Certification
    iso,ce
  • Model Number
    Horizontal/Vertical Raw Mill
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    MEET THE SHIPPMENT REQUIRMENTS
  • Delivery Time
    40 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    15 PER MONTH

ultrafine powder Feed 25mm 100t/H Ball Mill Grinder

ZK Series Long Service Life Raw Ball Mill Grinder Reliable Performance




Raw Ball Mill Grinder Introduction:

As an industrial raw material, powder is widely used in cement industry, building materials industry, metallurgy industry, chemical industry, electric power industry, paint industry, rubber industry, plastic industry, cosmetics industry, etc. The particle size of conventional industrial powder is 1 ~ 10μm, and 0.1 ~ 1μm for fine powder, 1 ~ 100nm for ultrafine powder or nano powder. The particle size by ball mill or vertical mill equipment both can reach 1 ~ 10μm, each of which has advantages and disadvantages.



Applied Materials:



Copper, magnetite, molybdenite, zinc ore, iron ore, gold, hematite, fluorspar, lead & zinc, manganese, tungsten, marble, granite, slag, cement, limestone, clinker, coal etc

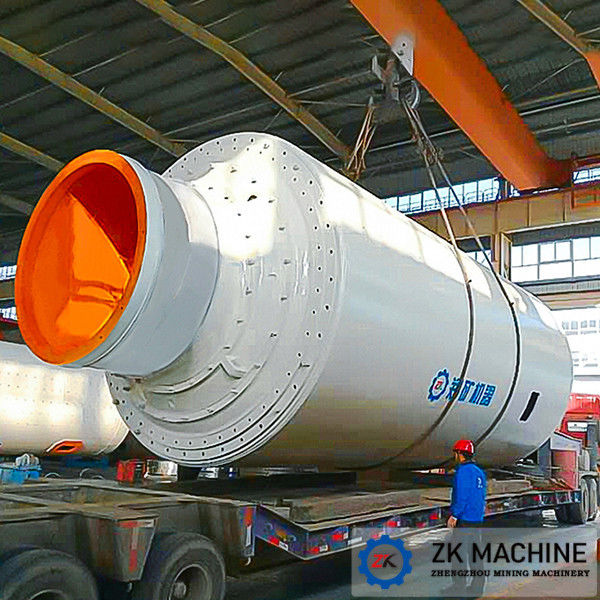

ultrafine powder Feed 25mm 100t/H Ball Mill Grinder 0



The most widely used in the classification of mills, and the most classic is the ball mill. Ball grinding mill (ball grinding mill) is the key equipment for crushing materials and then crushing. It is mainly used in cement, silicate products, new building materials, refractory materials, fertilizers, ferrous and non-ferrous metal beneficiation and glass ceramics production industries. The ball mill can be divided into two types: lattice type and overflow type according to different ore discharging methods. It can be divided into dry and wet grinding methods. It is suitable for grinding various ores and other materials, and is widely used in mineral processing, building materials and chemical industry. And other industries.



ultrafine powder Feed 25mm 100t/H Ball Mill Grinder 1



Working Principle:
Vertical Raw Mill

Vertical raw mill uses pressure and shear generated between the rollers and the rotating table to crush and grind raw materials. Feed material is directed onto the grinding table by the feed chute. The rotation of the grinding table accelerates the material towards the grinding track and passes it under the rollers. Coarser material and bigger lumps drops through the nozzle ring – and is eventually recirculated into the feed material inlet. Moisture evaporates almost immediately as the gas stream carries the finer portion of material to the separator. The separator allows material that has reached the required fineness to leave the grinding mill and sends oversized material back for further grinding.

Horizontal Raw Mill
The raw mill is a horizontal rotating device transmitted by the gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of grinding media in the chamber. The centrifugal force caused by rotation of shell brings the grinding media to a certain height and impact and grind the materials. The fine materials are discharged through the outlet, thus the grinding process is finished.



ultrafine powder Feed 25mm 100t/H Ball Mill Grinder 2



Specifications:



Ball Mill for Raw Meal Grinding:



specification

capacity

(t/h)



speed

(r/min)



Grinding media

(t)

motor reducer weight(t)
model

power

(kW)

model speed ratio
Φ1.2×4.5 1.7 30.3 5 YR250M-6 55 ZD30-8 4.481 13.1
Φ1.5×5.7 4.5 26.34 11 JR127-8 130 ZD40-7 4 25
Φ1.83×7 11 24.5 20 JR138-8 245 ZD60-8 4.5 37.2
Φ2.2×7.5 16-22 21.4 32 JR158-8 380 ZD70-9 5 53.6
Φ2.4×13 35-38 19.4 69 YR800-8 800 JDX800/MBY800 6.33 78
Φ2.6×13 50-55 19.5 83 YR1000-8/1180 1000 JDX800/MBY800 4.5
Φ2.8×10 40-48 19.7 70 YR800-8/1180 800 D110A 37.5
Φ3.0×12 55-58 18 100 YR1250-8/1430 1250 JS110-A 41.1
Φ3.2×10 55 17.6 98 YR1000-8/1180 1000 JS110 41.5
Φ3.5×10 73 16.8 118 YR1250-8 1250 JS110-A   153.7(without motor)

Vertical Mill for Raw Meal Grinding:

Model Grinding plate(mm) output(t/h) output(×10kt/a) Main motor power(kW)
diameter Pitch blast furnace slag cement Raw meal blast furnace slag cement Raw meal
ZKRM08.2 1200 800 1.5~2 3~4 6~8 1.5 3 5.5 55
ZKRM11.2 1500 1100 3~4 5~6 10~12 3 4.5 9 110
ZKRM13.2 1700 1300 8~9 11~13 20~22 6 9.5 17 185
ZKRM15.2 1900 1500 9~10 14~16 26~34 8 12 24 250
ZKRM17.2 2100 1700 12~14 20~23 40~50 10 17 36 355
ZKRM19.2 2300 1900 15~17 24~26 50~60 13 20 43.5 450
ZKRM20.2 2400 2000 18~20 27~30 60~75 15 22.5 55 560
ZKRM22.3 2600 2200 23~25 40~50 85~110 20 35.5 77 710
