Cement Filtration 935m3 67300m3/H Pulse Jet Bag Filter

Cement Filtration 935m3 67300m3/H Pulse Jet Bag Filter

  • High Light

    67300m3/H Pulse Jet Bag Filter

    ,

    935m3 Pulse Jet Bag Filter

    ,

    67300m3/H pulse dust collector

  • Product Name
    PPC Series Pulse Jet Bag Filter
  • Model
    PPC32-3, PPC64-8
  • Filtration Area
    935-4361 (㎡)
  • Net Filtration Area
    4205 (㎡)
  • Cleaning Method
    On-line Ash Cleaning
  • Application
    Cement, Metallurgy, Electric Power, Chemical And Other Industries
  • Condition
    New
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Spare Parts
    Supply All Using Life
  • Shipping Port
    Shanghai, Qingdao, Tianjin
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    According to different models
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Export standard container or as customers' requirements
  • Delivery Time
    30 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set / Sets per Month

Cement Filtration 935m3 67300m3/H Pulse Jet Bag Filter

Cement Industrial PPC Series Pulse Jet Bag Filter High Performance Pulse





Introduction:

PPC Series Pulse Jet Bag Filter incorporates the advantages of other bag filters as compartmental blow-back, pulse jet cleaning. It is suitable to the treatment of high concentration dust, simplifying the technical process of dust treatment and reducing investment of device.

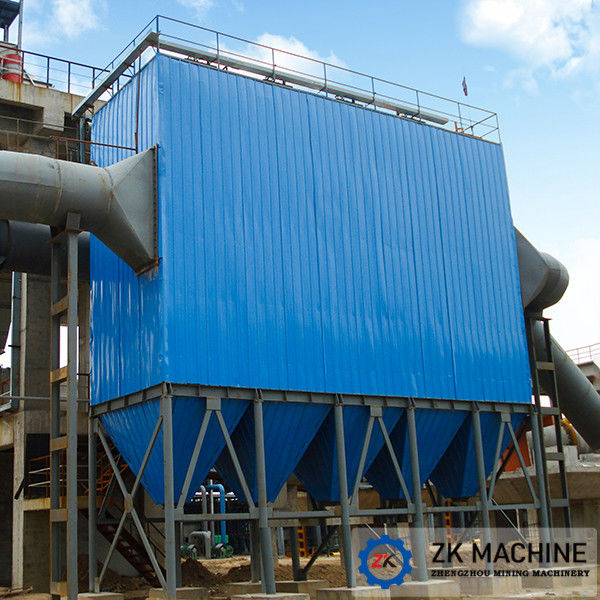

Cement Filtration 935m3 67300m3/H Pulse Jet Bag Filter 0



Application of Bag Filter:

Electric power, metallurgy, chemical and building materials industry



Structure:

Bag filter is consist of holder, ash bucket, the middle cabinet, the upper part cabinet, bag, frame, jet cleaning device and PLC control procedures and other components. The middle cabinet has sub-chamber structure. Dusty gas goes through collecting tube achieving to each ash bucket.

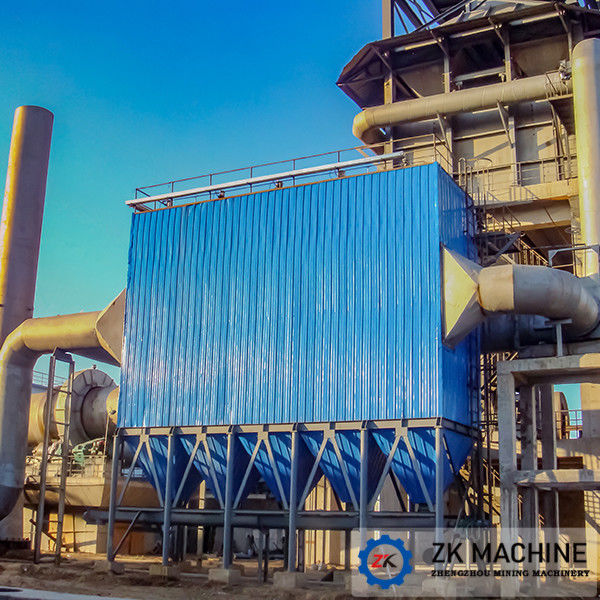

Cement Filtration 935m3 67300m3/H Pulse Jet Bag Filter 1



Our Advantages:

It's widely used in cement, building material, metallurgy, chemical and refractory industries, especially for the dust collection system, such as the crushing, packing, clinker cooling and various grinding mill in cement plant. It is also suitable for dust collection of coal grinding after some modification.
1. New and advanced dust removing concept. No air pipe. Pulse valve is assembled at the side the chamber shell or top. No need to disassemble and assemble the air pipe when replacing the bags.
2. High performance pulse is applied to replace many smaller pulse to reduce the maintenance as much as possible. Multi-chamber and off-line dust removing. Long life of filter bag. Air tank will reduce the pressure decrease caused by equipment.
3. Available for high density dust containing air collection, for example, O-Sepa separator, the dust content of which will reach 1000g/Nm3.
4. It overcomes disadvantages of weak cleaning strength of blow-back as well as synchronous working of pulse jet cleaning and filtering, expanding the filed of application.

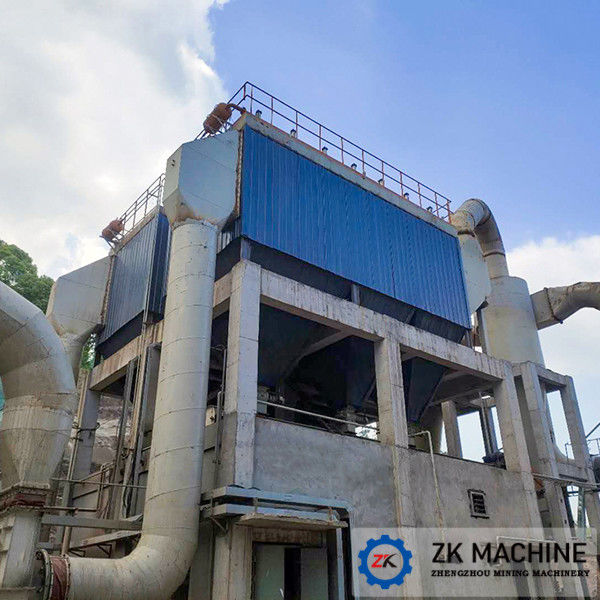

Cement Filtration 935m3 67300m3/H Pulse Jet Bag Filter 2



Specifications:

Model PPC128-6 PPC128-9 PPC128-10 PPC128-2×6 PPC128-2×7 PPC128-2×8
Volume(m³/h) 67300 100900 112100 134600 157000 179400
Air speed(m/min) 1.2-2.0(Speed varies at different dust points)
Filtration area(㎡) 935 1402 1558 1869 2181 2492
Net filtration area(㎡) 779 1246 1402 1713 2025 2336
No. of bag(pc) 768 1152 1280 1536 1792 2084
Resistance(Pa) 1470-1770
Minus pressure(Pa) 7000
Dust content at inlet(g/m³) <1300
Dust emission(g/m³) ≤0.1
Compressed air Pressure(Pa) (5-7)×105

  Air consumption 3.6 5.4 6 7 8.3 9.5
  (m³/min)
Pulse valve Qty(pc) 12 18 20 24 28 32
Size 2-1/2″
Elevation valve Qty(pc) 6 9 10 12 14 16
  Size(mm) Valve Φ725,air tank Φ100
Discharge device YJD-26 Outlet 300×300mm Capacity 24m³/h Double flap valve 305×915
Screw conveyor Model Dia. Φ300,capacity 21m³/h N/A
Gearbox XWD2.2-5-1/43,power 2.2Kw N/A
Air slide Air slide 250mm,flow rate 2.0m³/㎡, Pressure 6860pa,If the dust content exceeds 700g/m³ at inlet, bag filter with big screw conveyor should be considered.
Bag size and material Dia.×lengthΦ130×3050,Gross weight of polyethylene felt 450g/㎡,temperature 120℃
Insulation area(㎡) 125 196 205 223 247 262
Total weight(approx.)(Kg) 24120 31680 34680 43920 52680 60000
Note 1: Net filtration area means the area of one chamber during dust removing.
2: The compressed air consumption is based on supply of compressed air pipe from an air compression station. The consumption should be considered to be 1.3 times more if the supply is provided by an independent air compressor.
