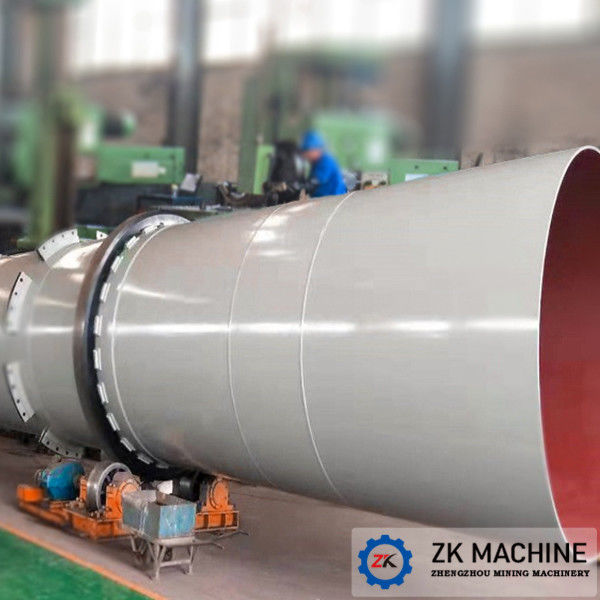

Energy Saving Industrial Rotary Dryer , Three Pass River Rotary Sand Dryer

Energy Saving Industrial Rotary Dryer , Three Pass River Rotary Sand Dryer

  • High Light

    rotary drying equipment

    ,

    rotating drum dryer

  • Model
    Φ1.0×10 - Φ3.6×36 (m)
  • Capacity
    1 - 40 (t/h)
  • Fuel
    Coal Etc
  • Power
    11 - 400 (kW)
  • Application
    Cement, Metallurgy, Electric Power, Chemical And Other Industries
  • Brand Name
    ZK Corp
  • Applied Material
    Cement, Fly Ash, Slag, Coal, Sludge
  • Service
    Design, Manufacturing, Sales
  • Place of Origin
    CHINA
  • Brand Name
    ZK CORP
  • Certification
    ISO,CE
  • Model Number
    drum rotary dryer
  • Minimum Order Quantity
    1 SET
  • Price
    3000USD
  • Packaging Details
    MEET THE SHIPPMENT REQUIRMENTS
  • Delivery Time
    30DAYS
  • Payment Terms
    L/C, D/P, D/A, T/T, Western Union, MoneyGram
  • Supply Ability
    10 PER MONTH

Energy Saving Industrial Rotary Dryer , Three Pass River Rotary Sand Dryer

Energy Saving Industrial Rotary Dryer , Three Pass River Rotary Sand Dryer

Introduction of Rotary Dryer:

Three pass river sand drum rotary dryer adopts the latest European energy saving technology,clamp type structure. Internal cylinder,middle cylinder and outer cylinder form a since the insulation structure. Special thermal design idea,the emlimination of wind tunnel heat loss,increase the heat exchange area and unit volume evaporation intensity,good energy saving effect.



Application of Rotary Dryer:



The rotary dryer is used for drying sand,yellow sand,slag,clay and other raw materials, widely used in building materials,chemical industry,foundry industry, etc, can adapt to a variety of fuels such as coal, oil and gas.



Energy Saving Industrial Rotary Dryer , Three Pass River Rotary Sand Dryer 0



Specifications:



specification cylinder Capacity(t/h) motor Power(kw) reducer
D(mm) L(mm) Slope(°) Speed(rpm) model
1212 1200 12000 1.8 5 2-5 Y160LM-6 11 ZQ500
1515 1500 15000 1.8 4.28 4-5 Y160L-6 18.5 ZQ650
1818 1800 18000 1.8 5 6-8 Y200LI-6 22 ZA650
2020 2000 20000 2.0 3.28 7-10 Y200L2-6 30 ZQ650
2222 2200 22000 1.8 2.8 9-14 Y250M-6 45 ZQ650
2424 2400 24000 2.5 2.82 14-16 Y280S-6 55 ZQ750
2626 2600 26000 2.5 2.58 16-18 Y280M-6 75 ZQ850
2828 2800 28000 2.5 2.55 20-22 Y315S-6 90 ZL115
3030 3000 30000 2.5 2.69 22-24 Y315L1-6 132 ZL130
3232 3200 32000 2.5 2.6 24-26 Y315M-4 200 ZSY450
3434 3400 34000 2.5 2.51 26-28 Y315L2-4 315 ZL130
3634 3600 36000 2.5 2.51 30-40 Y315L2-4 315 ZL130
4040 4000 40000 2.5 2.09 40-45 YKK4003-4 400 ZSY630
4242 4200 42000 2.5 2.09 45-46 YKK4005-4 400 ZSY630

Energy Saving Industrial Rotary Dryer , Three Pass River Rotary Sand Dryer 1

Working Principle of Rotary Dryer:

The heat source of drum rotary dryer comes from the combustion train, and adopts down-flow heating methods. When the materials enter into the body from feeding device, it will be pushed back by the spire raising board. As the dryer is in an inclined position, the materials will be down to the lower end under the influence of gravity and rotation, but the raising board will be threw to the upper end for scattering.



This process make the material well-distributed in the body, then ensure the heat exchanged by heat wind. After repeated cycle with this process, the moisture content can be dried.



Features of Rotary Dryer:



1. Shell adopts assembled structure, and its precision has been improved a lot, which will be convenient for transport.
2. According to different fuel properties, suuitable raising plate will be used. This can make material receive more heat exchange.
3. Sealing is simple but efficient, which can improve capacity and improve whole machine performance.
4. Its matching combustion furnance is energy-saving type, which takes small area and is easy to adjuest.



Energy Saving Industrial Rotary Dryer , Three Pass River Rotary Sand Dryer 2
