1.4-87 T/H Ball Mill Grinder Stable Performance

1.4-87 T/H Ball Mill Grinder Stable Performance

ball mill machine

ball mill mining

Place of Origin:

China

Brand Name:

ZK

Certification:

CE ISO Certification

Model Number:

Ф1.2x4.5-Ф4.2x13

Contact Us
Request A Quote
Product Details
Product Name:
Cement Mill
Condition:
New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Warranty:
12 Months
Capacity:
1.4-87t/h
Material:
Limestone
Motor Type:
AC Motor
Spare Parts:
Supply All Using Life
Voltage:
220V/380V/440
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Export standard container or as customers' requirements
Delivery Time
30 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 Set / Sets per Month
Product Description

Biggest Cement Mill Supplier / Cement Mill Production Performance

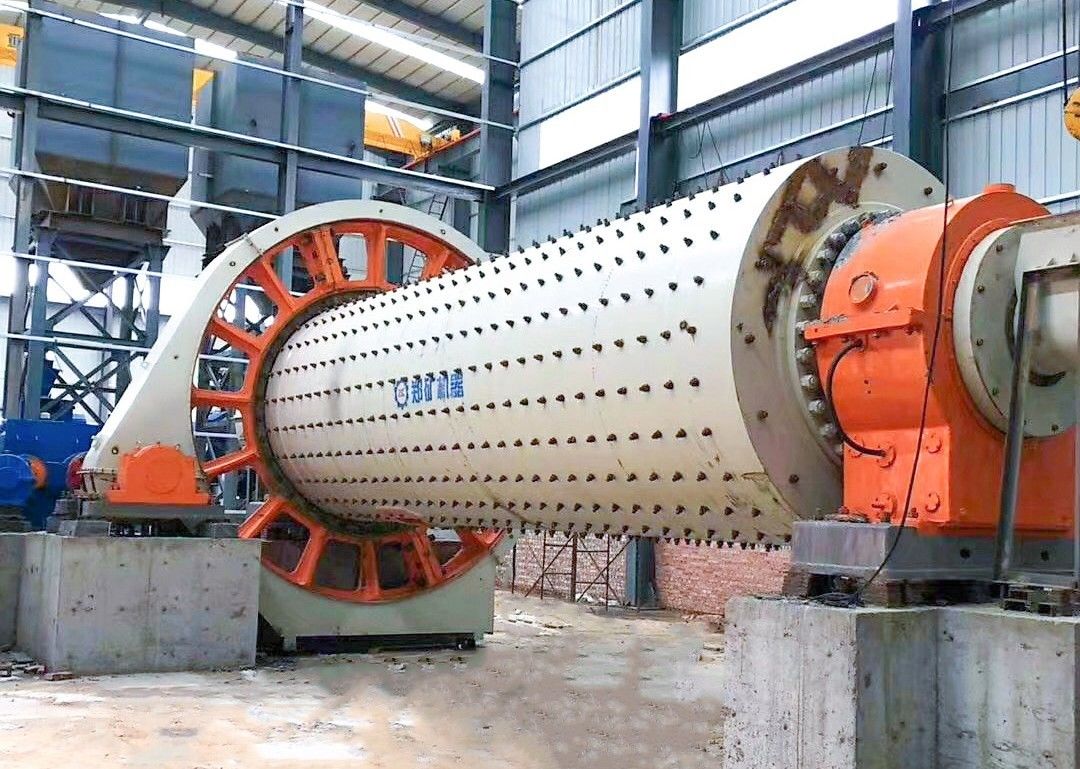

Cement ball mill in mining machinery is an efficient tool for fine powder grinding. Ball mill is often used for grinding silica sand. The cement ball mill in mining machinery is used to grind many kinds of mine and other materials, or to select the mine. cement ball mill in mining machinery is widely used in building material, chemicalindustry, etc. There are two ways of grinding: the dry way and the wet way. It can be divided into tabular type and flowing type according to different expelling mine. ZK CORP is a famous cement ball mill in mining machinery manufacturer.



1.4-87 T/H Ball Mill Grinder Stable Performance 0



Application of Cement Ball Mill:

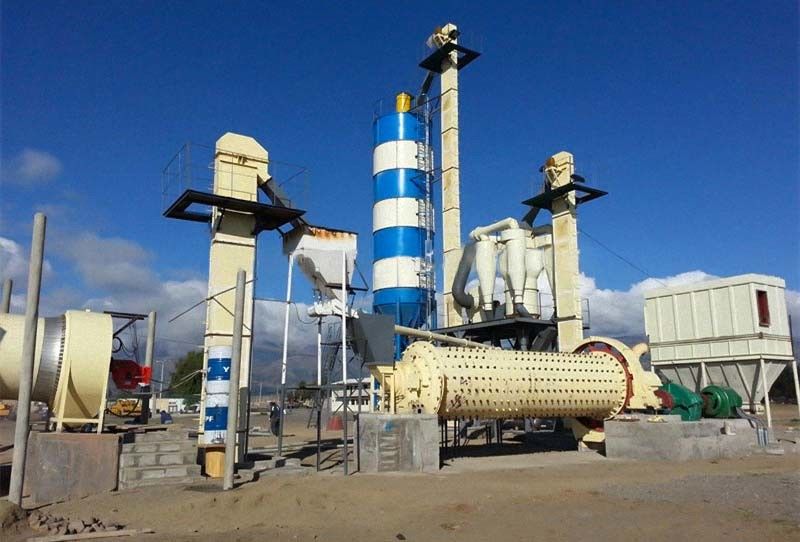

Cement ball mill is mainly used in grinding of cement finished product and materials, also to the metallurgical, chemical, electricity and other industrial and can be used to open streams, but also to the composition and the separator flow grinding circle. Cement mill has a strong adaptability of materials to production, broken rate large, easy to speed grinding fineness of the product and so on. Ball mill of cement production is capable of dry production and also can be wet. You can simultaneously grinding and drying operation.

Structure

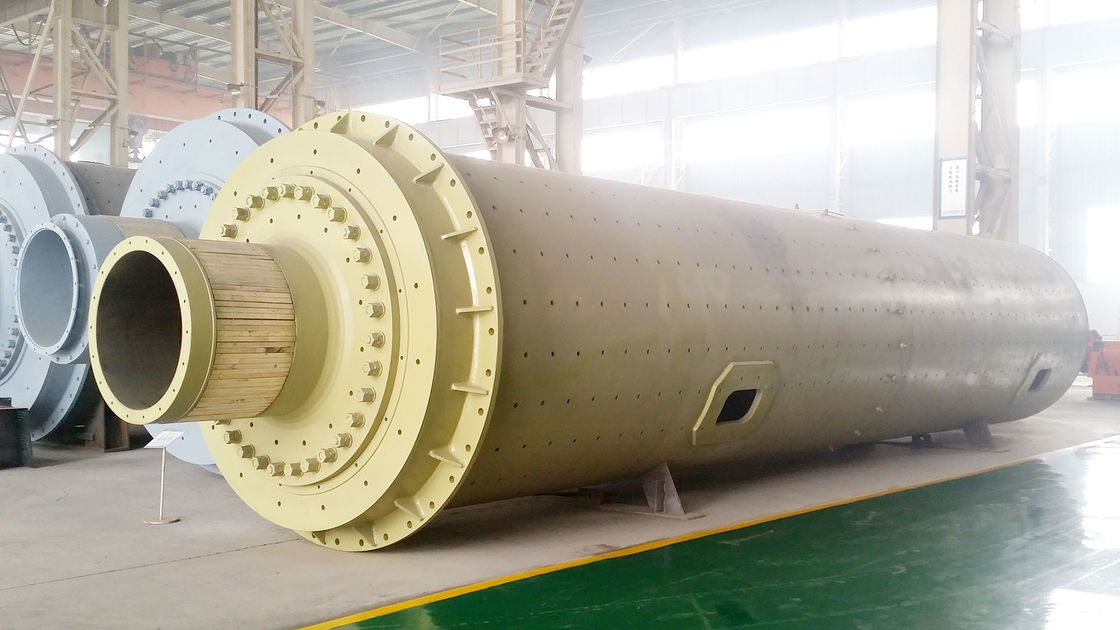

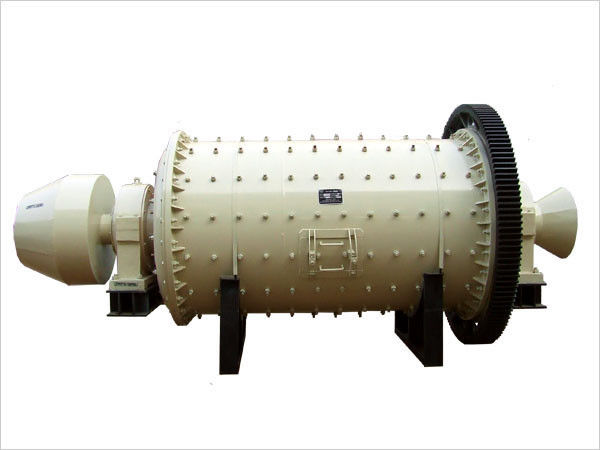

Cement ball mill is mainly consisting of feeding device, big gear, discharge device, cylinder, diaphragm plate, hollow shaft, liner, drive device and other components.





1.4-87 T/H Ball Mill Grinder Stable Performance 1



Cement Ball Mill Working Principle:

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.





Technical Data:

Specification
Output (t/h)

Rev
(R/min)

Grinding
Body(t)
Electromotor Reducer
        Model Power(kw) Model Ratio of speed
Ф1.2x4.5 1.4 30.3 2 YR250M-6 55 ZD30-8 4.481
Ф1.5x5.7 3.5 26.34 11 JR127-8 130 ZD40-7 4
Ф1.83x6.4 6 23.9 18 JR137-8 210 ZD60-8 4.5
Ф1.83x7 6.5 24.5 20 JR138-8 245 ZD60-8 4.5
Ф2x9 9.5-10 23.88 31 JR158-8 380 ZD70-8 4.5
Ф2.2x6.5 8-9 21.4 30 JRQ158-8/YR630-8 380 ZD70-8 5
Ф2.2x6.5 14 21.4 30 JRQ158-8/YR630-8 380 ZD70-9 5
Ф2.2x7 12 21.4 30 JR158-8 380 ZD70-9 5
Ф2.2x7.5 13 21.4 32 JR158-8 380 ZD70-9 5
Ф2.2x8 11-12 21.4 37 JR158-8 380 ZD70-9 5
Ф2.2x9.5 14-16 21.4 43 JR1510-8 475 ZD70-9 5
Ф2.2x13 16 20.3 55 YR630-8/1180/Y100L-8 630/11 JD630/ZS82.5-7 6.3/99.96
Ф2.4x7 14-16 Closed-circuit 20.4 36 JR1510-8 475 JDx450 5
Ф2.4x8 16-17 Closed-circuit 20.3 41 JR1512-8/Y180L-8 570/11 JD630/ZS82.5-7 6.333/99.96
Ф2.4x9 17-1 Closed-circuit 20.3 46 YR630-8/1180/Y100L-8 630/11 JD630/ZS82.5-7 6.333/99.96
Ф2.4x10 18-19 Open circuit 20-22 Closed-circuit 20.3 50 YR630-8/1180/Y100L-8 630/11 JD630/ZS82.5-7 6.333/99.96
Ф2.4x11 19-21 Open circuit 20.3 60 YR630-8/1180/Y100L-8 630/11 JD630/ZS82.5-7 6.333/99.96
Ф2.4x12 25-27Open circuit 20.3 61 YR800-8/1180/Y100L-8 800/11 JD630/ZS82.5-7 6.333/99.96
Ф2.4x13 25-27 Open circuit 20.3 66 YR800-8/1180/Y100L-8 800/11 JD630/ZS82.5-7 6.333/99.96
Ф2.4x13 21-23 Open circuit 20.3 66 YR1000-8/1180/Y160M-4 1000/11 JD630/ZS82.5-7 6.333/99.96
Ф2.6x10 25-27 Closed-circuit 20.3 60 YR800-8/1250 800 JD800 5.5
Ф2.6x13 27-29 19.1   YR1000-8/1180/Y160M-4 1000/11   5.5/280
Ф3x9 33-34Open circuit 19.6 79 YR1000-8/1180/Y160M-4 1000/11 NAL108/8/ZS110-19 8/280
Ф3x9 36.5 Open circuit 17.6   YR118/61-8 1000   42.163
Ф3x11 35-40 Open circuit 18.3 97 YR1250-8/1430/YR160M-4 1250/11 YNL1210 6.3
Ф3x11 47Open circuit 17.7   YR118/74-8 1250   42.39
Ф3x12 38-40 Closed-circuit 18.1   YR1250-8/1430 1250/11   41.27
Ф3.2x11 40 Closed-circuit 18 103 YR1400-8/1430/Y160M-4 1400/11 YNL1210/ZS110-19 12.35/28
Ф3.5x11.5 65-70Open circuit 16.5   TYD143/49-8 2-1000   36.239
Ф3.5x11.5 50 Closed-circuit 17.2 126 YR1800-8/1430/Y200L2-2 1800/37 JSX1300A/JMX560 43.02/318

Ф3.8x13Double

sliding shoe

70-75 Closed-circuit 16.6   YRKK800-8 2500   44.9
Ф3.8x13 60-62 16.3 170 YR2500-10/1730 2500 MFYX250
Ф4x13 65 Closed-circuit 15.95 202 YRKK900-8 2800 JS130-8 46.7
Ф4.2x13 85 Closed-circuit 16.3 224 YRKK900-8 3150 MFY320 47.8
Ф4.2x13 85-87 16.3 224 YR1000-8 3530 JQS3550

15.6
