Large Capacity Vertical Coal Mill Simple Reliable Structure Stable Performance

Large Capacity Vertical Coal Mill Simple Reliable Structure Stable Performance

vertical roller mill

vertical cement grinding mill

Place of Origin:

China

Brand Name:

ZK

Certification:

CE ISO Certification

Model Number:

HRM800,HRM1100,HRM1250,PRM23,PRM25

Contact Us
Request A Quote
Product Details
Product Name:
Vertical Grinding Mill For Coal , Coal Grinding Mill
Condition:
New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Warranty:
12 Months
Capacity:
5-58TPH
Material:
Coal, Quartz, Feldspar, Calcite, Limestone, Dolomite
Motor Type:
AC Motor
Spare Parts:
Supply All Using Life
Voltage:
220V/380V/440
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Export standard container or as customers' requirements
Delivery Time
30 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 Set / Sets per Month
Product Description



Vertical Grinding Mill for Coal / Coal Grinding Mill for Sale



Coal Mill is a mechanical device used to pulverize coal for combustion in the steam-generating furnaces of fossil fuel power plants. Coal pulverized machine is the ideal powder making equipment in electric power industry, metallurgy industry, chemical industry, building construction, coal industry, fireproofing materials making industry and some others. The final product’s fineness of coal pulverized machine can reach 38micron (400mesh).



Coal vertical mills are designed to achieve the maximum rated capacity grinding a design coal with a grindability of 55 HGI and 8-12 percent moisture and achieving a discharge fineness of 70 per cent passing a 200 mesh screen (74 micron) and 99.5 per cent passing a 50 mesh screen. Variation of the coal hardness and/or moisture content will effect, up or down, the discharge capacity or the discharge fineness.



To achieve these design considerations it is essential that the grinding elements are in good condition and they maintain a consistent profile. The loss of the grinding profile results in a loss of grinding efficiency, meaning the pulveriser must work harder to achieve an equal result.



Ultimately a point will be reached in which either a loss of capacity or a loss of fineness will result under uniform conditions. Longer lasting, more consistent grinding elements are crucial to pulveriser operation yielding longer operating campaigns, reduced maintenance and a lower overall invested cost.

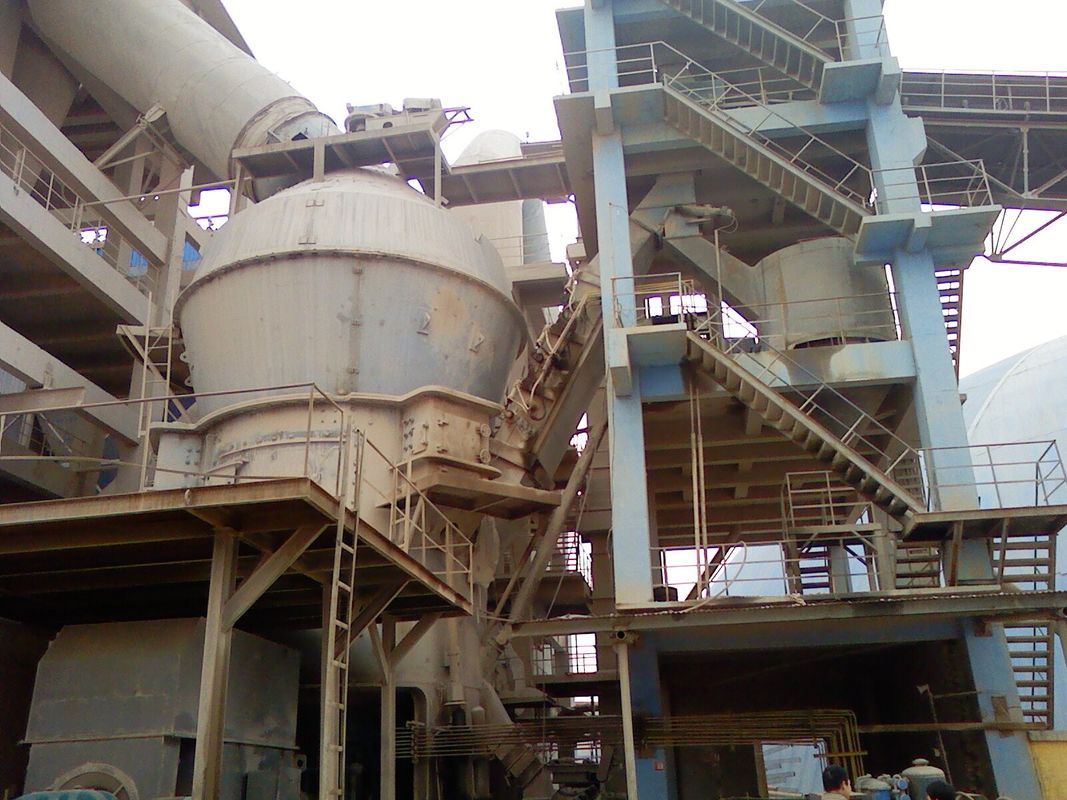

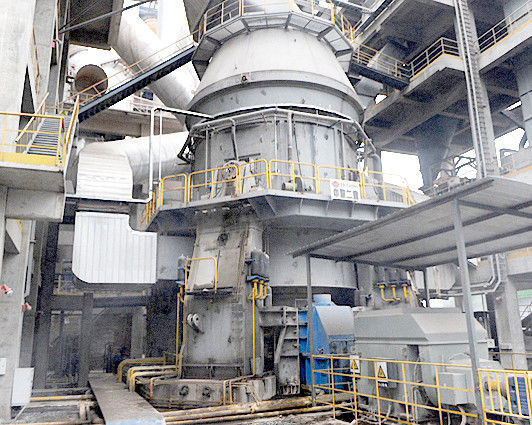

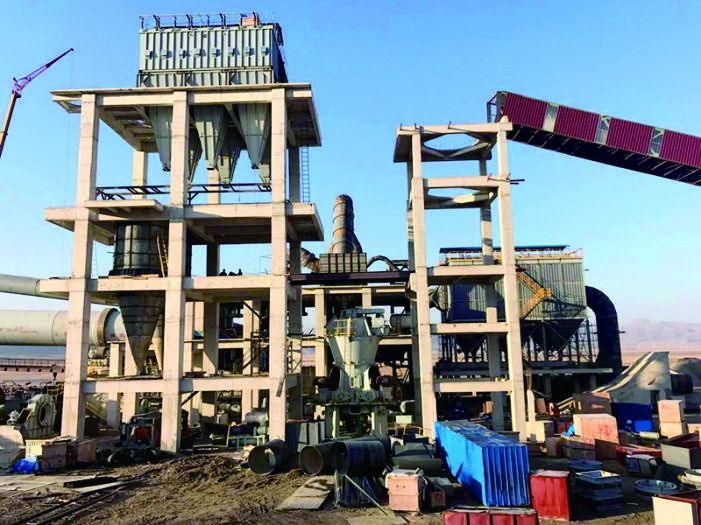

Large Capacity Vertical Coal Mill Simple Reliable Structure Stable Performance 0



Structure:

1. Separating efficiency increased by combined separator.

2. No need to prepare material on the disc before start up, the function including auto lift and fall roller, and on-load staring can be achieved.

3. The sealing adopt welding arc panel, structure is simple and reliable with good sealing effect.

4. The grinding roller can be turn out from the mill easily by the roller turning device, and convenient for maintenance.

5. The grinding roller cover can be used in flip side and extending the abrasive using life.

6. The grinding roller limited device is guarantee the gap between roller and disc, prevent the metal friction and collision, strengthen the safety.

7. The roller grinding pressure adopts solid-gas pressure, remote control pressing, lift roller and modify the pressure and realized unattended operation on site.

8. The roller bearing adopts concentrate circulating lubrication by thin oil to guarantee the bearing working under the condition of low temperature and clean oil, the using life can be extending.


Technical Parameters:



Parameter Unit HRM800 HRM1100 HRM1250 HRM1300 PRM17 PRM23 PRM25
Capacity T/H 5-7 10-12 16-18 20-25 26-35 40-45 50-58
The size of grinding material mm 0-40 0-40 0-40 0-40 0-40 0-50 0-50
The moisture of grinding material % <10 <10 <10 <10 <10 <10 <10
Fineness R0.08 % 8-12 8-12 8-12 8-12 8-12 8-12 8-12
The moisture of product % <1 <1 <1 <1 <1 <1 <1
Power KW 55 110 160 200 400 400 450
The wind temperature of input ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350
The wind temperature of outlet 80-100 80-100 80-100 80-100 80-100 80-100 80-100
The air volume of outlet m3/H ≈10000 ≈20000 ≈30000 ≈40000 ≈80000 ≈80000 ≈100000
The weight of equipment T 16 22 32 40 96 135 167
