Lime Plant Vertical Grinding Mill , Limestone Vertical Mill Long Service Life

Lime Plant Vertical Grinding Mill , Limestone Vertical Mill Long Service Life

  • High Light

    vertical roller mill

    ,

    vertical coal mill

  • Product Name
    Limestone Vertical Roller Mill , Vertical Roller Mill
  • Condition
    New
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Warranty
    12 Months
  • Capacity
    1.5-110t/h
  • Material
    Quartz, Feldspar, Calcite, Limestone, Talc, Ceramics, Marble, Granite, Dolomite, Bauxite, Etc.
  • Motor Type
    AC Motor
  • Spare Parts
    Supply All Using Life
  • Voltage
    220V/380V/440
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    ZKRM
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Export standard container or as customers' requirements
  • Delivery Time
    30 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set / Sets per Month

Lime Plant Vertical Grinding Mill , Limestone Vertical Mill Long Service Life



Limestone Vertical Roller Mill in Lime Plant / Vertical Roller Mill Price



In recently year, because of the energy-saving advantage in cement industry by vertical roller mill, the comprehensive benefit become more and more obvious, widely application and popularize in power, metallurgy, chemical industry and nonmetal etc.


Application of Vertical Roller Mill:
Vertical roller mill is mainly used for grinding raw meal, clinker, Ground Granulated Blast Furnace Slag, iron ore, limestone, coal powder, coke powder, coal gangue, fly ash, volcanic ash, gypsum, calcite, pyrophyllite, quartz, clay, sandstone, bauxite and other processing industry related to metal and non-metal mine.

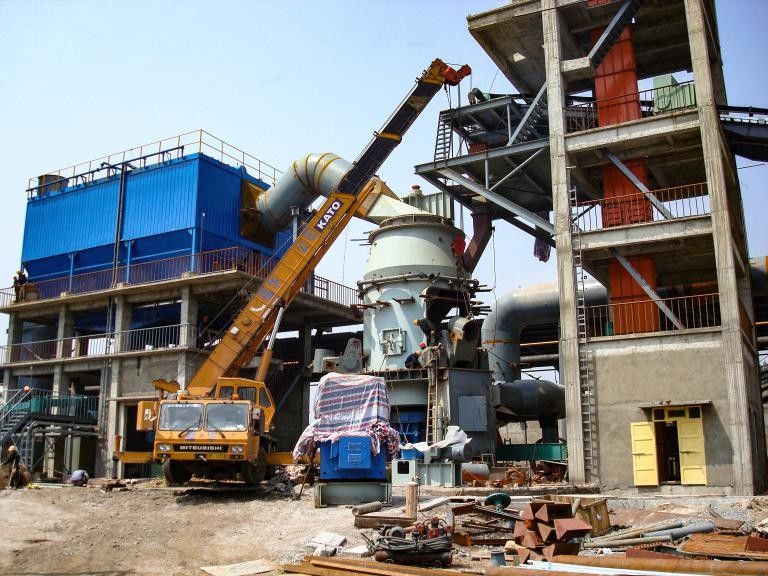

Lime Plant Vertical Grinding Mill , Limestone Vertical Mill Long Service Life 0



Structure:
1. Separating efficiency increased by combined separator.
2. No need to prepare material on the disc before start up, the function including auto lift and fall roller, and on-load staring can be achieved.
3. The sealing adopt welding arc panel, structure is simple and reliable with good sealing effect.
4. The grinding roller can be turn out from the mill easily by the roller turning device, and convenient for maintenance.
5. The grinding roller cover can be used in flip side and extending the abrasive using life.
6. The grinding roller limited device is guarantee the gap between roller and disc, prevent the metal friction and collision, strengthen the safety.
7. The roller grinding pressure adopts solid-gas pressure, remote control pressing, lift roller and modify the pressure and realized unattended operation on site.
8. The roller bearing adopts concentrate circulating lubrication by thin oil to guarantee the bearing working under the condition of low temperature and clean oil, the using life can be extending.


Technical Parameters:



Model Grinding plate(mm) output(t/h) output(×10kt/a) Main motor power(kW)
diameter Pitch blast furnace slag cement Raw meal blast furnace slag cement Raw meal
ZKRM08.2 1200 800 1.5~2 3~4 6~8 1.5 3 5.5 55
ZKRM11.2 1500 1100 3~4 5~6 10~12 3 4.5 9 110
ZKRM13.2 1700 1300 8~9 11~13 20~22 6 9.5 17 185
ZKRM15.2 1900 1500 9~10 14~16 26~34 8 12 24 250
ZKRM17.2 2100 1700 12~14 20~23 40~50 10 17 36 355
ZKRM19.2 2300 1900 15~17 24~26 50~60 13 20 43.5 450
ZKRM20.2 2400 2000 18~20 27~30 60~75 15 22.5 55 560
ZKRM22.3 2600 2200 23~25 40~50 85~110 20 35.5 77 710


Remarks: the basic standard for vertical mill is asfollow:
(1). Power consumption:slag≤25kWh/t,cement≤18kWh/t,raw meal≤9kWh/t;
(2). Moisture content:slag≤15%,cement≤3%,raw meal≤7%;
(3). Ffinished product fineness: specificsurface area of slag 4200~112500px²/g,specificsurface area of cement 3300~380 cm²/g,raw meal fineness-80μmR 12~15%;
(4). Moisture content of refined powder:slag 0.5~1.0%,cement 0.5~1.0%,rawmeal 0.5~1.0%;
(5). The specific installed capacity and parameterscan be adjusted properly according to actual material nature.
(6). The above parameters are applicable forgranular blast furnace slag, cement and raw meal and the model selection is determined by material property.
