Silica Sand Vertical Grinding Mill Small Floor Space For Cement Industry

Silica Sand Vertical Grinding Mill Small Floor Space For Cement Industry

  • High Light

    vertical roller mill

    ,

    vertical coal mill

  • Capacity
    1.5-110t/h
  • Model
    ZKRM
  • Condition
    New
  • Motor Type
    AC Motor
  • Power(W)
    50KW
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Voltage
    220V/380V/440
  • Spare Parts
    Supply All Using Life
  • Product Name
    Silica Sand Vertical Roller Mill,vertical Roller Mill Sale For Cement Industry
  • Place of Origin
    CHINA
  • Brand Name
    ZK CORP
  • Certification
    ISO,CE
  • Model Number
    vertical roller mill
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Standard Container
  • Delivery Time
    30days
  • Payment Terms
    L/C, D/A, D/P, Western Union, T/T, MoneyGram
  • Supply Ability
    80 Set/Sets per Month As Request

Silica Sand Vertical Grinding Mill Small Floor Space For Cement Industry



Silica sand vertical roller mill, vertical roller mill sale for cement industry



In recently year, because of the energy-saving advantage in cement industry by vertical roller mill, the comprehensive benefit become more and more obvious, widely application and popularize in power, metallurgy, chemical industry and nonmetal etc.



Application of Vertical Roller Mill:

Vertical roller mill is mainly used for grinding raw meal, clinker, Ground Granulated Blast Furnace Slag, iron ore, limestone, coal powder, coke powder, coal gangue, fly ash, volcanic ash, gypsum, calcite, pyrophyllite, quartz, clay, sandstone, bauxite and other processing industry related to metal and non-metal mine.

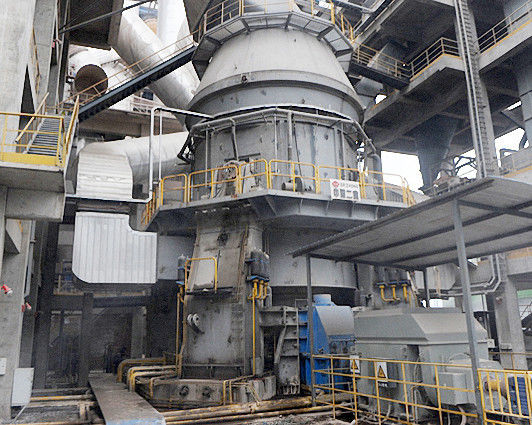

Silica Sand Vertical Grinding Mill Small Floor Space For Cement Industry 0



Structure:

1. Separating efficiency increased by combined separator.

2. No need to prepare material on the disc before start up, the function including auto lift and fall roller, and on-load staring can be achieved.

3. The sealing adopt welding arc panel, structure is simple and reliable with good sealing effect.

4. The grinding roller can be turn out from the mill easily by the roller turning device, and convenient for maintenance.

5. The grinding roller cover can be used in flip side and extending the abrasive using life.

6. The grinding roller limited device is guarantee the gap between roller and disc, prevent the metal friction and collision, strengthen the safety.

7. The roller grinding pressure adopts solid-gas pressure, remote control pressing, lift roller and modify the pressure and realized unattended operation on site.

8. The roller bearing adopts concentrate circulating lubrication by thin oil to guarantee the bearing working under the condition of low temperature and clean oil, the using life can be extending.

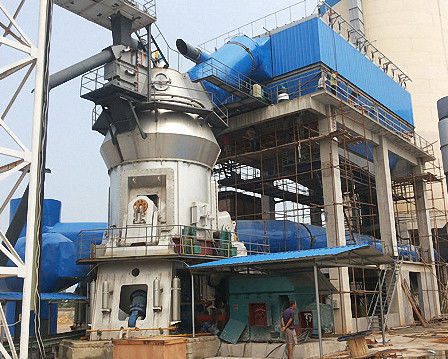

Silica Sand Vertical Grinding Mill Small Floor Space For Cement Industry 1



Our Advantages:

1. High grinding efficiency and low power consumption.

2. Low metal consumption in unit product.

3. Bed grinding with low noise.

4. Negative pressure and low dust pollution.

5. The technical process is simple and material grinding, drying and separate can be achieved at the same time.

6. Small floor space, compact layout, system equipment with light weight and low investment for civil construction.





Specifications:

Model Grinding plate(mm) output(t/h) output(×10kt/a) Main motor power(kW)
diameter Pitch blast furnace slag cement Raw meal blast furnace slag cement Raw meal
ZKRM08.2 1200 800 1.5~2 3~4 6~8 1.5 3 5.5 55
ZKRM11.2 1500 1100 3~4 5~6 10~12 3 4.5 9 110
ZKRM13.2 1700 1300 8~9 11~13 20~22 6 9.5 17 185
ZKRM15.2 1900 1500 9~10 14~16 26~34 8 12 24 250
ZKRM17.2 2100 1700 12~14 20~23 40~50 10 17 36 355
ZKRM19.2 2300 1900 15~17 24~26 50~60 13 20 43.5 450
ZKRM20.2 2400 2000 18~20 27~30 60~75 15 22.5 55 560
ZKRM22.3 2600 2200 23~25 40~50 85~110 20 35.5 77 710


Remarks: the basic standard for vertical mill is asfollow:

(1)Power consumption:slag≤25kWh/t,cement≤18kWh/t,raw meal≤9kWh/t;
(2)Moisture content:slag≤15%,cement≤3%,raw meal≤7%;
(3)Ffinished product fineness: specificsurface area of slag 4200~112500px²/g,specificsurface area of cement 3300~380 cm²/g,raw meal fineness-80μmR 12~15%;
(4)Moisture content of refined powder:slag 0.5~1.0%,cement 0.5~1.0%,rawmeal 0.5~1.0%;
(5)The specific installed capacity and parameterscan be adjusted properly according to actual material nature.
(6)The above parameters are applicable forgranular blast furnace slag, cement and raw meal and the model selection is determined by material property.

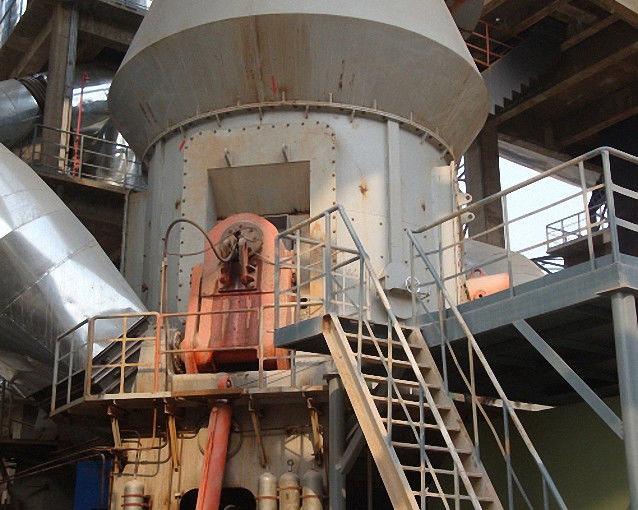

Silica Sand Vertical Grinding Mill Small Floor Space For Cement Industry 2
