Stable Running Vertical Cement Mill Compact Layout Low Dust Pollution

Stable Running Vertical Cement Mill Compact Layout Low Dust Pollution

  • High Light

    vertical roller mill

    ,

    vertical cement grinding mill

  • Product Name
    Cement Vertical Roller Mill / Vertical Roller Mill Cement Plant
  • Condition
    New
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Warranty
    12 Months
  • Capacity
    Above 100,000 T/year
  • Material
    Cement
  • Motor Type
    AC Motor
  • Spare Parts
    Supply All Using Life
  • Voltage
    220V/380V/440
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    HRM800,HRM1100,HRM1250,HRM1300
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Export standard container or as customers' requirements
  • Delivery Time
    30 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    80 Set / Sets per Month

Stable Running Vertical Cement Mill Compact Layout Low Dust Pollution



Cement Vertical Roller Mill / Vertical Roller Mill Cement Plant

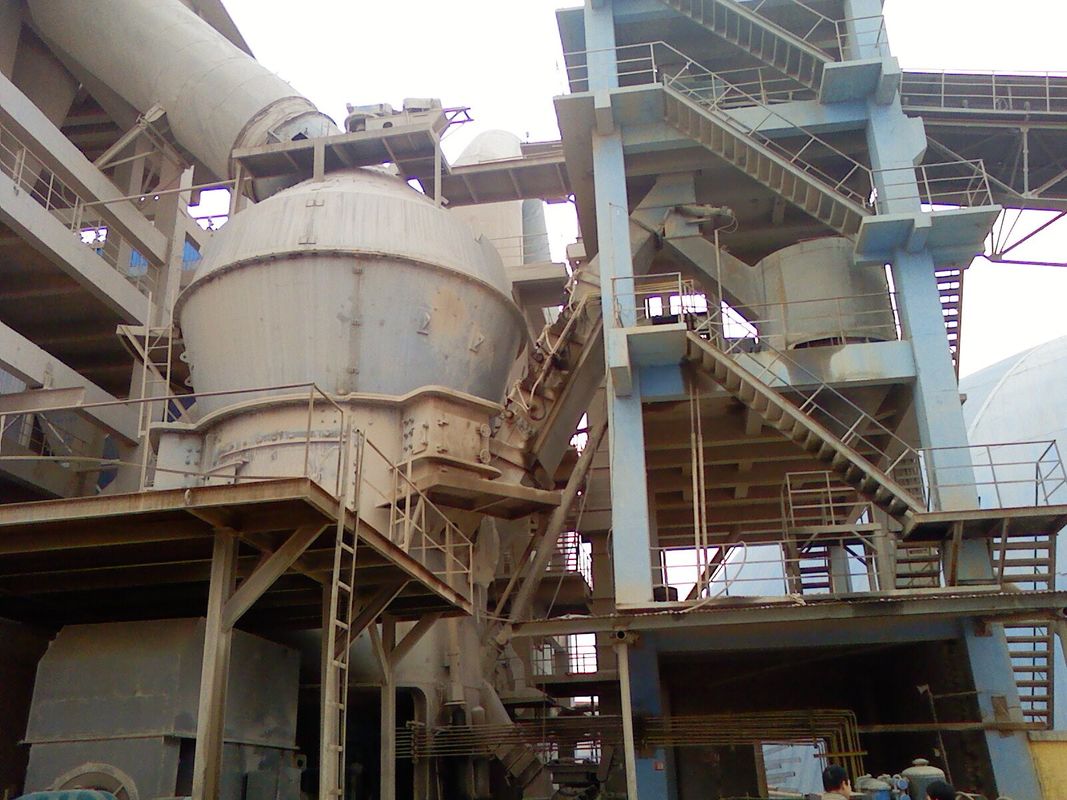

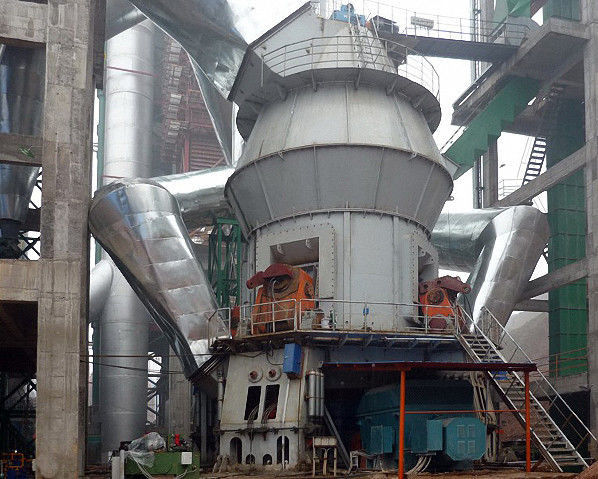

Vertical Cement Grinding Mill produced by China ZK Corp is is a new type of high efficiency, energy conservation and environmental protection of grinding equipment, widely used in the grinding of raw cement, slag, cement clinker, raw coal and other raw materials. It gathers grinding, drying and powder selecting as a whole, with high grinding efficiency and high drying capacity ( the maximum material moisture can be up to 20% ). The vertical mill adopts dynamic powder selecting device, which comes with high powder-selecting efficiency and convenient adjustment of fineness.



China ZK Corp has provided various kinds of large and medium size complete sets of cement production equipments for more than 300 cement customers in domestic market. And engineering for equipment and technology, manufacturing, installation and commissioning as well as the supply of the spare parts and the training service can be offered by China ZK for customers.



Stable Running Vertical Cement Mill Compact Layout Low Dust Pollution 0



Structure

1. Separating efficiency increased by combined separator.

2. No need to prepare material on the disc before start up, the function including auto lift and fall roller, and on-load staring can be achieved.

3. The sealing adopt welding arc panel, structure is simple and reliable with good sealing effect.

4. The grinding roller can be turn out from the mill easily by the roller turning device, and convenient for maintenance.

5. The grinding roller cover can be used in flip side and extending the abrasive using life.

6. The grinding roller limited device is guarantee the gap between roller and disc, prevent the metal friction and collision, strengthen the safety.

7. The roller grinding pressure adopts solid-gas pressure, remote control pressing, lift roller and modify the pressure and realized unattended operation on site.

8. The roller bearing adopts concentrate circulating lubrication by thin oil to guarantee the bearing working under the condition of low temperature and clean oil, the using life can be extending.



Technical Data

Parameter Unit HRM800 HRM1100 HRM1250 HRM1300 PRM17 PRM23 PRM25
Capacity T/H 5-7 10-12 16-18 20-25 26-35 40-45 50-58
The size of grinding material mm 0-40 0-40 0-40 0-40 0-40 0-50 0-50
The moisture of grinding material % <10 <10 <10 <10 <10 <10 <10
Fineness R0.08 % 8-12 8-12 8-12 8-12 8-12 8-12 8-12
The moisture of product % <1 <1 <1 <1 <1 <1 <1
Power KW 55 110 160 200 400 400 450
The wind temperature of input ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350
The wind temperature of outlet 80-100 80-100 80-100 80-100 80-100 80-100 80-100
The air volume of outlet m3/H ≈10000 ≈20000 ≈30000 ≈40000 ≈80000 ≈80000 ≈100000
The weight of equipment T 16 22 32 40 96 135 167
