Vertical Kiln Calcination Equipment For Cement And Laterite Production Process

Vertical Kiln Calcination Equipment For Cement And Laterite Production Process

  • High Light

    calcination rotary kiln

    ,

    rotary kiln incinerator

  • Product Name
    Vertical Kiln Lime / Quipment Of Vertical Kilne For Laterite Production Process
  • Condition
    New
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Warranty
    12 Months
  • Capacity
    50-500(t/d)
  • Material
    Cement, Bauxite, Laterite, Lime
  • Motor Type
    AC Motor
  • Spare Parts
    Supply All Using Life
  • Voltage
    220V/380V/440
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    Ø2.5-Ø6.0
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Export standard container or as customers' requirements
  • Delivery Time
    30 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set / Sets per Month

Vertical Kiln Calcination Equipment For Cement And Laterite Production Process

Vertical Kiln For Cement And Laterite Production Process



Vertical Shaft Kiln Introduction:

Cement Shaft Kiln is used for calcination in cement plant. We offer 50 TPD to 300 TPD vertical shaft kiln on turnkey basis for Cement Plant. Cement Shaft Kiln is modern day answer for cost effective production and a boon for the developing countries. VSK is the advanced technology available worldwide for small & medium entrepreneur.



We (ZK Corp) fabricate vertical shaft kiln, rotary kiln, raw meal mill, ball mill, O-sepa and all other related equipment for the construction of small size & medium size cement plants.

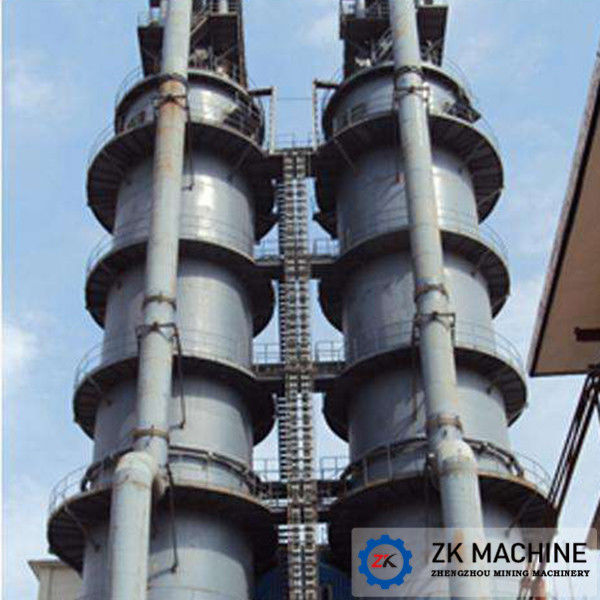

Vertical Kiln Calcination Equipment For Cement And Laterite Production Process 0



Our Advantage:
1. Different plant sizes available (50TPD,100TPD, 200TPD, 300TD, 500TPD,1000TPD, 2000TPD, 3000TPD).
2. Use of alternative fuels like low volatile coal, petroleum coke, lignite etc.
3. Use of alternate raw materials like bauxite, laterite, iron ore, Lime, Sea Shells etc.
4. Better Kiln design to prevent radiation loss.



Vertical Kiln Calcination Equipment For Cement And Laterite Production Process 1


Technical Parameters:



Technical Parameters Of Vertical Klin (Mixed Fuel)
Capacity(t/d) Effective Volume Effective Height Effective Section Limestone Size Heat Consumption CaO Activity
(m3) (m) Dia.(m) (mm) (kJ/kg) (%) (mL)
100 98 20 Ø2.5 30~60/40~80 <4600 >90 >300
120 141 20 Ø3.0 30~60/40~80 <4600 >90 >300
150 202 21 Ø3.5 30~60/40~80 <4500 >90 >300
200 301 24 Ø4.0 30~60/40~80 <4500 >90 >300
300 397 25 Ø4.5 30~60/40~80 <4400 >90 >300
400 491 25 Ø5.0 30~60/40~80 <4200 >90 >300
500 735 26 Ø6.0 30~60/40~80 <4200 >90 >300
Remarks: All above data are for reference only.

Technical Parameters Of Vertical Lime Kiln (Fuel: Gas)
Capacity(t/d) Effective Volume Effective Height Effective Section Limestone Size Heat Consumption CaO Activity
(m3) (m) Dia. or L×W(m) (mm) (kJ/kg) (%) (mL)
50 70 20 Ø2.0 30~60/40~80 <4600 >90 >300
70 80 20 Ø2.5 30~60/40~80 <4600 >90 >300
80 100 20 Ø2.5 30~60/40~80 <4500 >90 >300
100 120 20 Ø2.7 30~60/40~80 <4500 >90 >300
120 140 20 Ø3.0 30~60/40~80 <4400 >90 >300
130 150 21 Ø3.0 30~60/40~80 <4200 >90 >300
150 200 20 2.5×4.5 30~60/40~80 <4200 >90 >300
Remarks: Above data are for reference only, and suitable for Vertical Kiln which use low heat fuel. Utilization coefficient of Vertical Kiln which use high heat fuel is higher.
