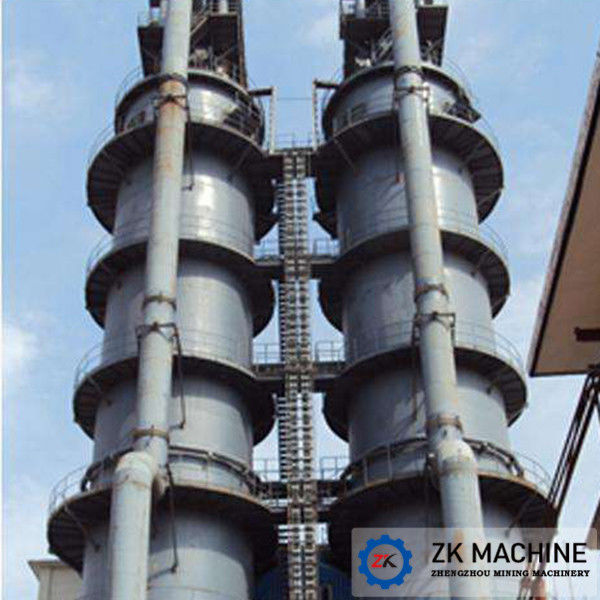

Intelligent Calcination Equipment Customization Various Cement Shaft Kiln
Product Details:
| Place of Origin: | China |
| Brand Name: | ZK |
| Certification: | CE ISO Certification |
| Model Number: | Φ2.2x38-4.3x64m |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard container or as customers' requirements |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 Set / Sets per Month |
|
Detail Information |
|||
| Product Name: | Cement Shaft Kiln | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 12 Months |
| Capacity: | 50-500（t/d） | Material: | Cement |
| Motor Type: | AC Motor | Spare Parts: | Supply All Using Life |
| Voltage: | 220V/380V/440 | ||
| High Light: | calcination rotary kiln,vertical shaft kiln |
||
Product Description
Customizable Cement Shaft Kiln / Cement Shaft Kiln for Sale
Vertical Shaft Kiln Introduction:
Cement Shaft Kiln is used for calcination in cement plant. We offer 50 TPD to 300 TPD vertical shaft kiln on turnkey basis for Cement Plant. Cement Shaft Kiln is modern day answer for cost effective production and a boon for the developing countries. VSK is the advanced technology available worldwide for small & medium entrepreneur.
We (ZK Corp) fabricate vertical shaft kiln, rotary kiln, raw meal mill, ball mill, O-sepa and all other related equipment for the construction of small size & medium size cement plants.
The Special and Main Equipment for the Kiln as Follows:
1.Cement batching electric weighing system
2.Intelligent master controller
3. Rotary distributing devices
4. Intelligent detection of material level gage
5. Simulation hood
6. Pan discharging cement machine
7. Two section seal valve cement discharging machine
Our Advantage:
1. Different plant sizes available (50TPD,100TPD,200TPD,300TD, 500TPD,1000TPD,2000TPD,3000TPD).
2. Use of alternative fuels like low volatile coal, petroleum coke, lignite etc.
3. Use of alternate raw materials like bauxite, laterite, iron ore, Lime, Sea Shells etc.
4. Better Kiln design to prevent radiation loss.
Technical Parameters:
| Technical Parameters Of Vertical Klin (Mixed Fuel) | |||||||
| Capacity(t/d) | Effective Volume | Effective Height | Effective Section | Limestone Size | Heat Consumption | CaO | Activity |
| (m3) | (m) | Dia.(m) | (mm) | (kJ/kg) | (%) | (mL) | |
| 100 | 98 | 20 | Ø2.5 | 30~60/40~80 | <4600 | >90 | >300 |
| 120 | 141 | 20 | Ø3.0 | 30~60/40~80 | <4600 | >90 | >300 |
| 150 | 202 | 21 | Ø3.5 | 30~60/40~80 | <4500 | >90 | >300 |
| 200 | 301 | 24 | Ø4.0 | 30~60/40~80 | <4500 | >90 | >300 |
| 300 | 397 | 25 | Ø4.5 | 30~60/40~80 | <4400 | >90 | >300 |
| 400 | 491 | 25 | Ø5.0 | 30~60/40~80 | <4200 | >90 | >300 |
| 500 | 735 | 26 | Ø6.0 | 30~60/40~80 | <4200 | >90 | >300 |
| Remarks: All above data are for reference only. | |||||||
| Technical Parameters Of Vertical Lime Kiln (Fuel: Gas) | |||||||
| Capacity(t/d) | Effective Volume | Effective Height | Effective Section | Limestone Size | Heat Consumption | CaO | Activity |
| (m3) | (m) | Dia. or L×W(m) | (mm) | (kJ/kg) | (%) | (mL) | |
| 50 | 70 | 20 | Ø2.0 | 30~60/40~80 | <4600 | >90 | >300 |
| 70 | 80 | 20 | Ø2.5 | 30~60/40~80 | <4600 | >90 | >300 |
| 80 | 100 | 20 | Ø2.5 | 30~60/40~80 | <4500 | >90 | >300 |
| 100 | 120 | 20 | Ø2.7 | 30~60/40~80 | <4500 | >90 | >300 |
| 120 | 140 | 20 | Ø3.0 | 30~60/40~80 | <4400 | >90 | >300 |
| 130 | 150 | 21 | Ø3.0 | 30~60/40~80 | <4200 | >90 | >300 |
| 150 | 200 | 20 | 2.5×4.5 | 30~60/40~80 | <4200 | >90 | >300 |
| Remarks: Above data are for reference only, and suitable for Vertical Kiln which use low heat fuel. Utilization coefficient of Vertical Kiln which use high heat fuel is higher. | |||||||
