High Productivity Lime Calcination Kiln 50-500 T/D Low Energy Consumption

High Productivity Lime Calcination Kiln 50-500 T/D Low Energy Consumption

  • High Light

    calcination rotary kiln

    ,

    rotary kiln incinerator

  • Product Name
    Lime Vertical Kiln
  • Condition
    New
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Warranty
    12 Months
  • Capacity
    50-500(t/d)
  • Material
    Active Lime
  • Motor Type
    AC Motor
  • Spare Parts
    Supply All Using Life
  • Voltage
    220V/380V/440
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    Φ2.2x38-4.3x64m
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Export standard container or as customers' requirements
  • Delivery Time
    30 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set / Sets per Month

High Productivity Lime Calcination Kiln 50-500 T/D Low Energy Consumption

Vertical Kiln / High Production Lime Vertical Kiln with 50-500(t/d)



Vertical Shaft Kiln Introduction:

Lime vertical kiln, just like itsname, the shape is erect. It is used for calcination limestone. Due to has lowenergy consumption, less cover area, less investment, wide applicability fuel,and more advantages, it was widely used in metallurgy, construction materials,calcium carbide, Nanometer calcium carbonate, aerated concrete, sugaring, etc.The vertical kiln was manufactured by ZK group with modern new technology, whichis an environment protection, save energy, higher machanization andautomaticity, quite modern lime kiln. Because it adopts the modern technology,make full use the cheap energy, especially pollution of gas for environmentharmful( such as conventer gas, blast furnace gas, calcium carbide furnace tailgas) as the energy, turn waste into wealth. Thus will protect the environment,and produce the high quality lime with lowest cost. To use this new technologyenterprise, economic benefits have increased significantly.

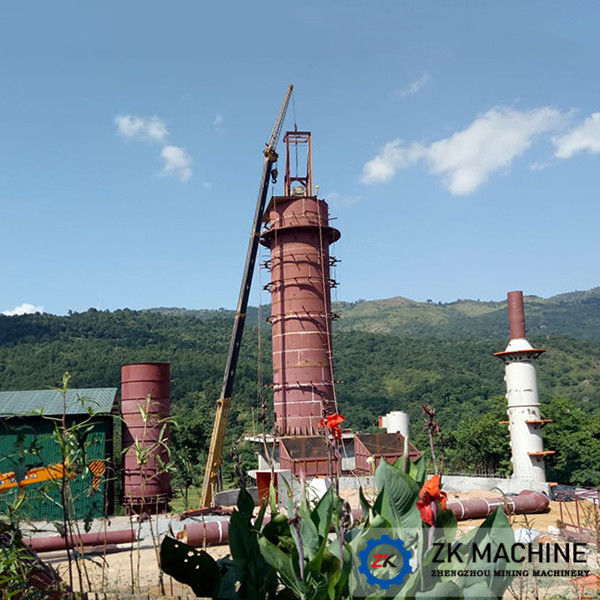

High Productivity Lime Calcination Kiln 50-500 T/D Low Energy Consumption 0



The Special and Main Equipment for the Kiln as Follows:
1. Limestone batching electric weighing system
2. Intelligent master controller
3. Rotary distributing devices
4. Intelligent detection of material level gage
5. Simulation hood
6. Pan discharging lime machine
7. Two section seal valve lime discharging machine



High Productivity Lime Calcination Kiln 50-500 T/D Low Energy Consumption 1



Our Advantages:

1. Save energy;There are preheatingzone, calcination zone, cooling zone from the top to bottom of kiln inside. Thecooling air blow into the cooling zone from the bottom, though the heattransfer, the goods were cold, and the cooling air was heated, then put intothe calcination zone with the heat for burning, thus reduce the energyconsumption. The flue gas from the fuel after calcination enter into thepreheating, make the material heat to pre-dissociation temperature. The fluetemperature fall to 170-300℃, thencome out from the kiln.
2. The shell of kiln use four layerrefractory in vertical masonry, good effect of thermal insulation, thetemperature of shell will be controlled higher 60℃ than environment, save energy remarkably.
3. Long service life of refractory,the material not directly crash the work surface of refractory, but itsfraction with work surface by gravity setting. Thus it greatly reduces the wearrate of refractory, the refractory will be used in 6-10 years in normally.
4. Less cover area, because thevertical kiln in vertical layout, feeding use the single bucket elevator inhigh angle layout, each functional area is decorated compact, greatly reducesthe cover area.



High Productivity Lime Calcination Kiln 50-500 T/D Low Energy Consumption 2



Technical Parameters:



Technical Parameters of Lime Rotary Klin
Size Capacity(t/d)

No. of

Supporter

Reducer Motor Power (kW)
Ø2.2×38m 120 3sets ZS125-5 YVF2-225M-4 45
Ø2.5×40m 150 3sets ZS145-5 YVF2-250M-4 55
Ø2.8×43m 200 3sets ZS165-6 YVF2-280S-4 75
Ø3.0×50m 230 3sets ZS165-3 YVF2-280M-4 90
Ø3.2×50m 250 3sets ZL130-16 YVF2-315L2-6 132
Ø3.6×55m 400 3sets ZSY560-63 YVF2-355M1-6 160
Ø3.8×58m 500 3sets ZSY560-63 YVF2-355M2-6 185
Ø4.0×60m 600 3sets ZSY630-35.5 YVF2-355M4-6 200
Ø4.3×64m 800 3sets ZSY630-35.5 YVF2-355L3-6 250
