High Reliability Vibratory Feeder 96-560 T/H Low Energy Consumption

High Reliability Vibratory Feeder 96-560 T/H Low Energy Consumption

Product Details:

Place of Origin: China
Brand Name: ZK
Certification: CE ISO Certification
Model Number: ZSW-380X95,ZSW-600X130

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export standard container or as customers' requirements
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set / Sets per Month
Get Best Price Contact Now

Detail Information

Product Name: Specification Of Vibrating Feeder / Vibratory Feeders Condition: New
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 12 Months
Capacity: 96-560t/h Material: Stone Crushing,Ore Dressing
Motor Type: AC Motor Spare Parts: Supply All Using Life
Voltage: 220V/380V/440
High Light:

vibration feeder machine

,

vibrating screen feeder

Product Description

Specification of Vibrating Feeder / Vibratory Feeders for Sale



Vibrating Feeder Introduction:
ZSW Series Vibrating Feeder is mainly used to feed material into primary crusher evenly and continuously. Meanwhile, it can screen material and strengthen the capacity of the crusher.
This machine takes the dual eccentric shaft vibration exciter through the triangle belt by motor; the exciter's two eccentric axles do the synchronous reverse revolution assured by a pair of meshing gear; the two eccentric axles have certain angle when they are installed, the centrifugal force produced by it makes the sieve body do round straight-line vibration among the vertical direction, the materials move foreward constantly in the process of vibration.

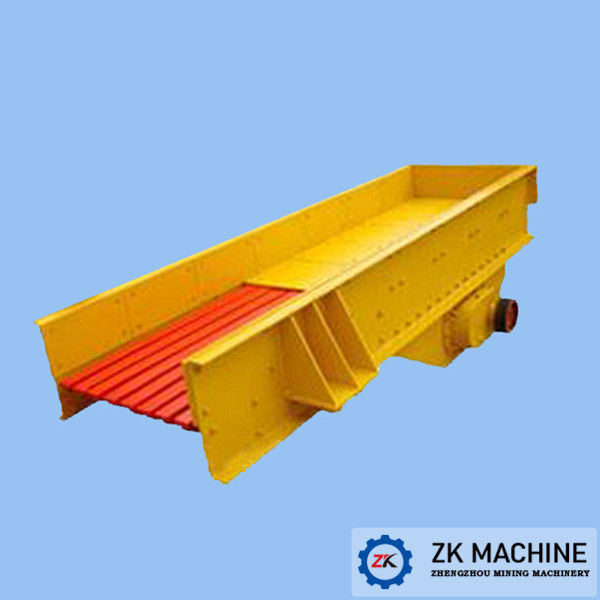

High Reliability Vibratory Feeder 96-560 T/H Low Energy Consumption 0

ZSW Series Vibrating Feeder Our Advantages:

1. Steady vibrating, reliable working and long life.

2. The flow rate can be changed and controlled at any time.

3. Low noise and energy consumption.

4. Simple structure, light weight and small size.

5. Able to protect the machine from dust pollution when using the enclosed structure.



Vibrating Feeder Structure:

Vibrating grizzly feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, avoiding the further crushing, so screening purpose can be reached.

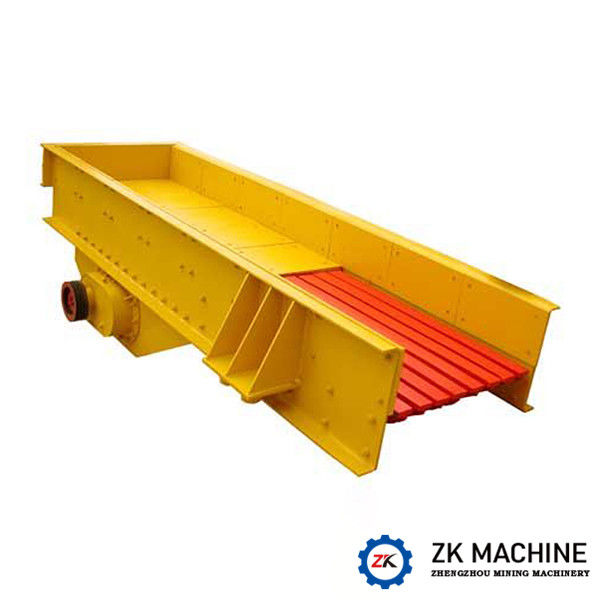

High Reliability Vibratory Feeder 96-560 T/H Low Energy Consumption 1



Vibrating Feeder Specification:



Mode Max Feed Size (mm) Capacity (t/h) Motor Power(kw)

Size of Funne

(mm)

ZSW-380×95 500 96-160 11 3800×950
ZSW-490×95 500 120-240 11 4200×1100
ZSW-490×110 580 120-280 15 4900×1100
ZSW-590×110 600 200-350 22 5900×1100
ZSW-600×130 750 400-560 22 6000×1300

Our service:
Training & Service
Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment, according to your special demand.
Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with you. We will provide you with the most suitable products with the reasonable price.


FAQ:
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.

Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.

Q: What should I take care when using the machine?
A: Keep the machine away from thinner and other chemical liquid.

Q: How to maintain the machine?
A: Check the connection part and clean the screen frame regularly.

Q: How can I pay my order?
A: We accept T/T, Western Union, Alibaba Trade Assurance payments. For those orders less than 1000USD, we accept PayPal to pay.

Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.

High Reliability Vibratory Feeder 96-560 T/H Low Energy Consumption 2
High Reliability Vibratory Feeder 96-560 T/H Low Energy Consumption 3
