Linear Vibratory Feeder Brake For Limestone Steady Vibrating Reliable Working

Linear Vibratory Feeder Brake For Limestone Steady Vibrating Reliable Working

  • High Light

    vibration feeder machine

    ,

    electromagnetic vibration feeder

  • Product Name
    Feeder Braker For Limestone / Vibratory Feeder Suppliers In China
  • Condition
    New
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Warranty
    12 Months
  • Capacity
    30-600(t/h)
  • Material
    Mine, Cement, Lime, Ore Dressing Industries
  • Motor Type
    AC Motor
  • Spare Parts
    Supply All Using Life
  • Voltage
    220V/380V/440
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    GZT-0724-GZT-1560
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Export standard container or as customers' requirements
  • Delivery Time
    30 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set / Sets per Month

Linear Vibratory Feeder Brake For Limestone Steady Vibrating Reliable Working



Feeder Braker for Limestone / Vibratory Feeder Suppliers in China

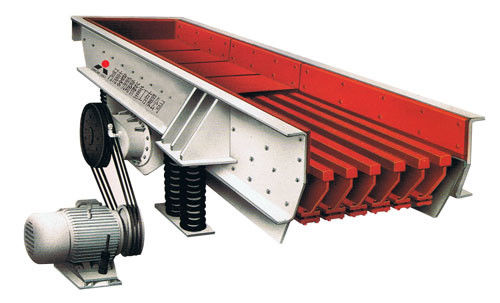

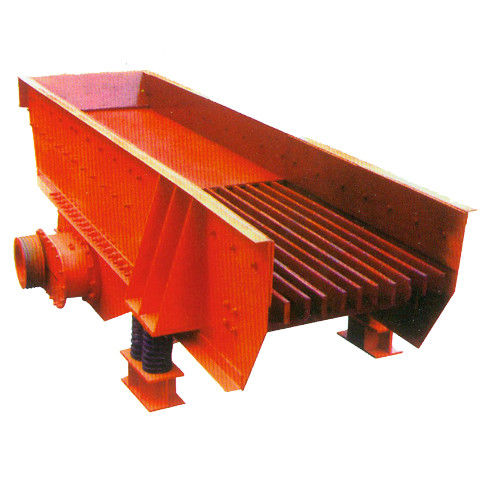

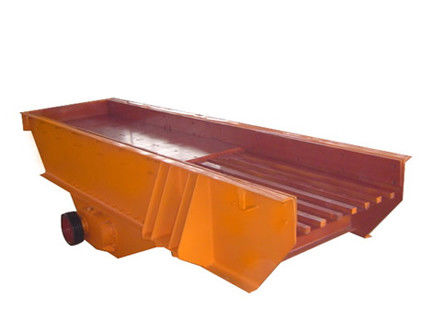

GZT vibrating feeder is designed by our company absorbing advanced technology home and abroad, and adopts vibrating motor to produce vibration force. It can send large material into the crushers evenly. At the same time, by using the bar screen deck, materials such as soil which can be crushed easily will be removed and the carase crushing capacity is improved.


GZT vibrating feeder use a pair of motor with complete same parameter as vibrating source. It can continuously and uniformly feed lump, granulate material to receiving equipment. And screen material during feeding process. It has feature such as big vibrating force, high strength, impact resistance, long service.



Linear Vibratory Feeder Brake For Limestone Steady Vibrating Reliable Working 0



OUR ADVANTAGE

1. Wide application. It can transport materials and goods that have sharp edges. And large materials are available. It is also suitable to convey high temperature materials that are below 400℃.

2. Large carrying capacity. The slot board adopts stamping and welding structure, being able to adapt the delivery of denser materials.

3. Good airtight performance. It does not spread and leak materials during running and unloading process.

4. Smooth and reliable operation and low noise.

5. Long durability and easy maintenance.



Linear Vibratory Feeder Brake For Limestone Steady Vibrating Reliable Working 1



Structure:

Vibrating grizzly feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, avoiding the further crushing, so screening purpose can be reached.



Vibrating Feeder Specification:



model max feed size(mm) Capacity(t/h) Motorpower(kw) Slop(°)
GZT-0724 450 30-80 2×1.5 10
GZT-0932 560 80-150 2×2.4 10
GZT-0940 560 180-180 2×3.2 10
GZT-1148 600 150-300 2×5.5 10
GZT-1256 800 180-400 2×7.5 10
GZT-1560 1000 400-600 2×1 10
