Easy Adjustment Filling Rotary Disk Feeder For Non Glutinosity Material

Easy Adjustment Filling Rotary Disk Feeder For Non Glutinosity Material

  • High Light

    vibration feeder machine

    ,

    vibrating screen feeder

  • Product Name
    High Quality Rotary Disk Feeder / Filling Disk Feeder
  • Condition
    New
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Warranty
    12 Months
  • Capacity
    1-30m3h
  • Material
    Gold Concentrator, Coal Mine, Chemical Plant, Construction
  • Motor Type
    AC Motor
  • Spare Parts
    Supply All Using Life
  • Voltage
    220V/380V/440
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    DB4,DB13
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Export standard container or as customers' requirements
  • Delivery Time
    30 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set / Sets per Month

Easy Adjustment Filling Rotary Disk Feeder For Non Glutinosity Material

High Quality Rotary Disk Feeder / Filling Disk Feeder for Sale


Introduction:

Disk feeder is the cubage measuring feeding device, which is widely used in metallurgy, mining, building material, coal and electric power industries to feed all kinds of non-glutinosity material. The disk feeder is volumetric measuring feeder equipment, can send the materials to every feeding process continuously. Disk feeder is suitable for sending several of no cohesive materials, and does not apply to powder materials of flow resistance. The materials which is applicable for sending ore, coal, cement, clinker, limestone, clay, and other powder, granular, or small block materials.

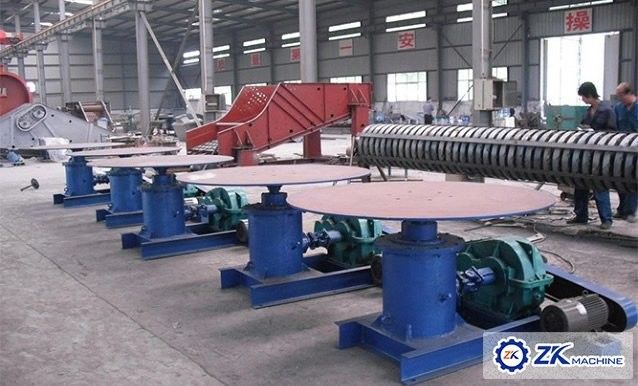

Easy Adjustment Filling Rotary Disk Feeder For Non Glutinosity Material 0

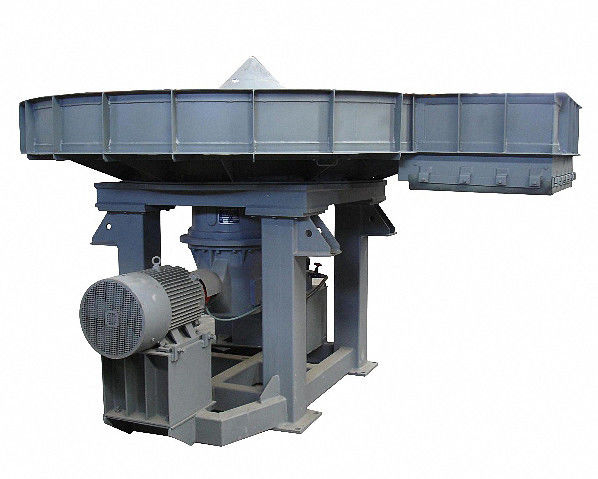

Easy Adjustment Filling Rotary Disk Feeder For Non Glutinosity Material 1



Disk Feeder​ Advantages:
1. High quality.
2. Low price.
3. Low energy consumption.



Easy Adjustment Filling Rotary Disk Feeder For Non Glutinosity Material 2



Technical Parameters:



model and spec disk dia(mm) capacity(m3/h) disk rev(r/min) feeding size(mm)

motor



model power(kw)
DB4 400 0.19-1.32 10 15 Y90S-6 0.75
DB6 600 0.69-3.9 8 25 Y90L-6 1.1
DB8 800 1.18-7.65 8 30 Y90L-6 1.1
DB10 1000 2.59-16.7 7.5 40 Y100L-6 1.5
DB13 1300 4.19-27.8 6.5 50 Y132L-6 3.0
