High Capacity Industrial Rotary Dryer , Coal Rotary Drum Dryer Easy Adjustment

High Capacity Industrial Rotary Dryer , Coal Rotary Drum Dryer Easy Adjustment

  • High Light

    rotary drying equipment

    ,

    rotating drum dryer

  • Product Name
    High Capacity Drum Coal Drying, Coal Drying Machine
  • Condition
    New
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Warranty
    12 Months
  • Capacity
    1-40(t/h)
  • Material
    Cement,Sand, Slag, Coal
  • Motor Type
    AC Motor
  • Spare Parts
    Supply All Using Life
  • Voltage
    220V/380V/440
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    Ø1.0×10m-Ø3.6×36m
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Export standard container or as customers' requirements
  • Delivery Time
    30 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set / Sets per Month

High Capacity Industrial Rotary Dryer , Coal Rotary Drum Dryer Easy Adjustment

High Capacity Drum Coal Drying Machine for Sale





Coal Drying Machine Introduction:
Coal dryer can dry many kinds of materials which contain moisture, such as coal, coal slurry, slag, industrial waste, and clay stone. They are widely used in building materials, metallurgy, and chemical industry. The dryer can use coal, gas, electricity, oil and wind power to heat the dryer machine.

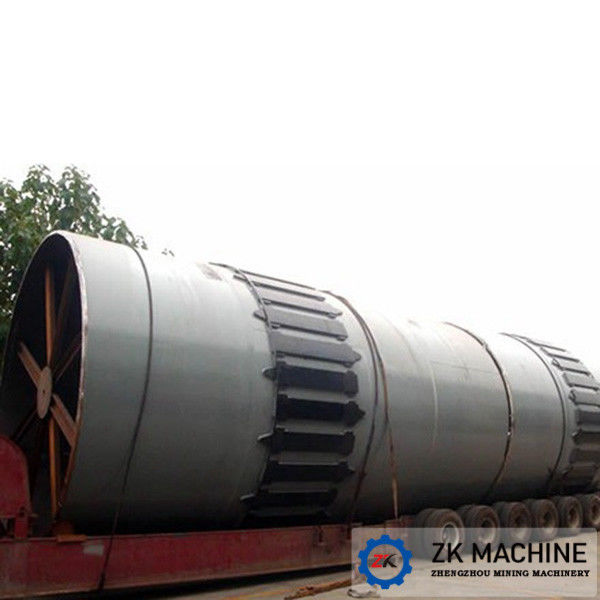

High Capacity Industrial Rotary Dryer , Coal Rotary Drum Dryer Easy Adjustment 0

Coal Drying Structure:
Coal rotary dryer is mainly compose of driving device, supporting roller, thrust roller, cylinder, kiln inlet, kiln outlet and sealing device.
1. 2-3 supporting points can guarantee the contacting surface between supporting roller and tyre is paralleled with axis line of cylinder during installation.
2. Supporting device is antifriction bearing (occasionally uses slide bearing). This design has simplified the supporting device of supporting roller, and reduced the useless power loss during operation. It has the features like easy operation and maintenance.
3. Suitable shim between tire and shell will ensure the tire ring on the shell tightly to increase the shell strength.
4. The main driving system uses new type AC variable frequency technology. Compared with electromagnetic speed control and DC speed control, that can save energy, have large range & high precision of speed regulation, high efficiency and running smoothly.
5. Radial direction contacting type sealing device is adopted at kiln inlet and outlet. They are perfect suitable for dimension tolerance of cylinder and skewing movement of cylinder. This sealing device’s feature is good performance, longer working life and easy for replacement.


Our Advatages of Coal Dryer:
1. High drying efficiency, big capacity, high running rate
2. Compact structure, operation stable, easy maintenance

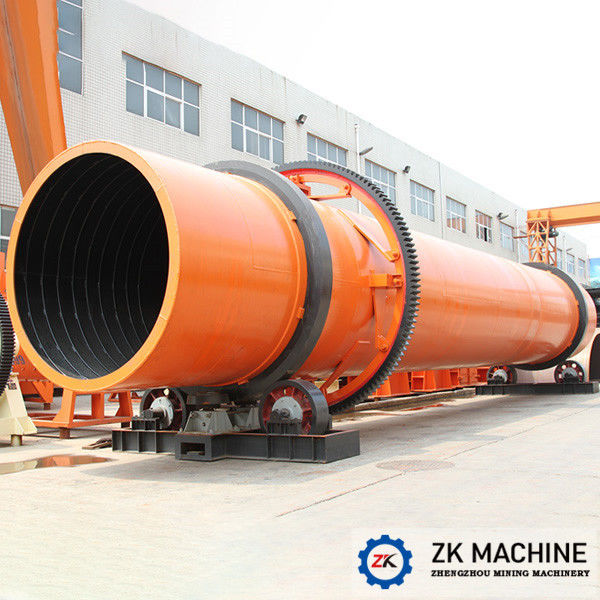

High Capacity Industrial Rotary Dryer , Coal Rotary Drum Dryer Easy Adjustment 1


Specifications:


specification cylinder Capacity(t/h) motor Power(kw) reducer
D(mm) L(mm) Slope(°) Speed(rpm) model
1212 1200 12000 1.8 5 2-5 Y160LM-6 11 ZQ500
1515 1500 15000 1.8 4.28 4-5 Y160L-6 18.5 ZQ650
1818 1800 18000 1.8 5 6-8 Y200LI-6 22 ZA650
2020 2000 20000 2.0 3.28 7-10 Y200L2-6 30 ZQ650
2222 2200 22000 1.8 2.8 9-14 Y250M-6 45 ZQ650
2424 2400 24000 2.5 2.82 14-16 Y280S-6 55 ZQ750
2626 2600 26000 2.5 2.58 16-18 Y280M-6 75 ZQ850
2828 2800 28000 2.5 2.55 20-22 Y315S-6 90 ZL115
3030 3000 30000 2.5 2.69 22-24 Y315L1-6 132 ZL130
3232 3200 32000 2.5 2.6 24-26 Y315M-4 200 ZSY450
3434 3400 34000 2.5 2.51 26-28 Y315L2-4 315 ZL130
3634 3600 36000 2.5 2.51 30-40 Y315L2-4 315 ZL130
4040 4000 40000 2.5 2.09 40-45 YKK4003-4 400 ZSY630
4242 4200 42000 2.5 2.09 45-46 YKK4005-4 400 ZSY630

Our service: Training & Service
Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment,
according to your special demand.
Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators
and finishing the check and accept together with you.

After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with you. We will provide you with the most suitable products with the reasonable price.



Packaging Detail :
The main machinery is in nude packing and spare parts in Wooden or steel box standard export packing, suitable for long distance delivery.

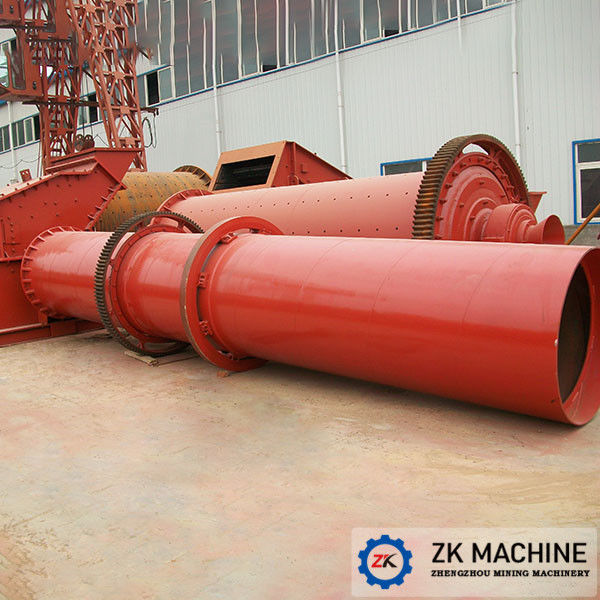

High Capacity Industrial Rotary Dryer , Coal Rotary Drum Dryer Easy Adjustment 2
