Industrial Sludge Rotary Drying Equipment Easy Maintenance High Production Capacity

Industrial Sludge Rotary Drying Equipment Easy Maintenance High Production Capacity

  • High Light

    rotary dryer machine

    ,

    rotary drying equipment

  • Product Name
    Mud Drying Machine , Rotary Drying Kilns
  • Condition
    New
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Warranty
    12 Months
  • Capacity
    1-40(t/h)
  • Material
    Sludge, Fly Ash, Coal Powder, Slag
  • Motor Type
    AC Motor
  • Spare Parts
    Supply All Using Life
  • Voltage
    220V/380V/440
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    Ø1.0×10m-Ø3.6×36m
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Export standard container or as customers' requirements
  • Delivery Time
    30 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set / Sets per Month

Industrial Sludge Rotary Drying Equipment Easy Maintenance High Production Capacity

Various Models Mud Drying Machine / Rotary Drying Kilns



Rotary Dryer Introduction:

Sludge dryer is one professional drying equipment produced by the mining machinery manufacturers, which can be used in processing some materials such as sludge, magnetic ores, concentrate ores of metal and non-metal, the clay of cement industry and other industries. The main features of this machine are higher working efficiency, reasonable structure, significant design, higher production capacity, simple operation.
The Application of Sludge Dryer
This machine can be widely used in the activated sludge drying, sewage sludge drying, petrochemical sludge drying, paper making sludge drying, printing and dyeing sludge drying, tanning sludge drying, municipal sludge drying and some materials with high moisture.



Sludge Dryer  Structure:
Sludge dryer is mainly compose of driving device, supporting roller, thrust roller, cylinder, kiln inlet, kiln outlet and sealing device.
1. 2-3 supporting points can guarantee the contacting surface between supporting roller and tyre is paralleled with axis line of cylinder during installation.
2. Supporting device is antifriction bearing (occasionally uses slide bearing). This design has simplified the supporting device of supporting roller, and reduced the useless power loss during operation. It has the features like easy operation and maintenance.
3. Suitable shim between tire and shell will ensure the tire ring on the shell tightly to increase the shell strength.
4. The main driving system uses new type AC variable frequency technology. Compared with electromagnetic speed control and DC speed control, that can save energy, have large range & high precision of speed regulation, high efficiency and running smoothly.
5. Radial direction contacting type sealing device is adopted at kiln inlet and outlet. They are perfect suitable for dimension tolerance of cylinder and skewing movement of cylinder. This sealing device’s feature is good performance, longer working life and easy for replacement.

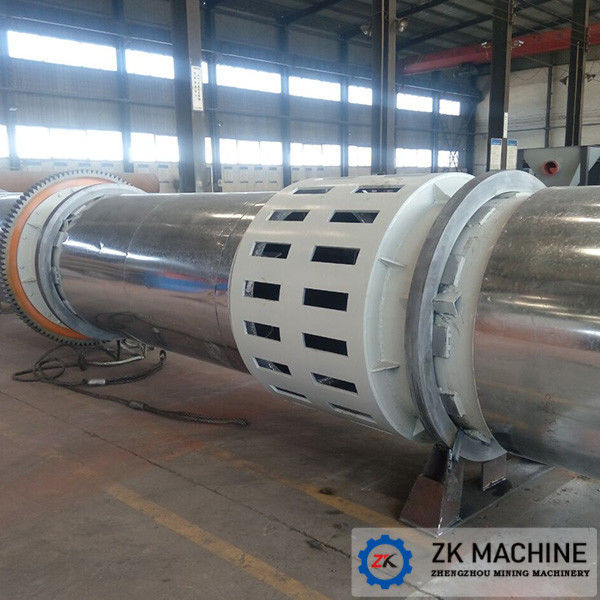

Industrial Sludge Rotary Drying Equipment Easy Maintenance High Production Capacity 0



Specifications:



MODEL CAPACITY(t/h) SLOPE(%) GEARBOX MOTOR POWER(kW)
Ø1.0×10m 1-2 5 ZQ400 YCT200-4B 7.5
Ø1.2×12m 2-3 5 ZQ500 YCT225-4A 11
Ø1.5×15m 3-5 5 ZQ500 YCT225-4B 15
Ø1.8×18m 4-6 4 ZQ750 YCT250-4B 22
Ø2.0×20m 7-9 3.5 ZQ750 YCT280-4A 30
Ø2.2×22m 8-10 3.5 ZQ850 YCT315-4A 37
Ø2.4×24m 12-15 3.5 ZQ850 YCT315-4B 45
Ø2.8×28m 16-22 3.5 ZS145 YCT355-4A 55
Ø3.0×30m 20-25 3.5 ZS165 YCT355-4B 75
Ø3.2×32m 28-32 3.5 ZL130 YCT355-4C 90
Ø3.6×36m 38-40 3.5 ZL130 YVF2-315L2-6 132

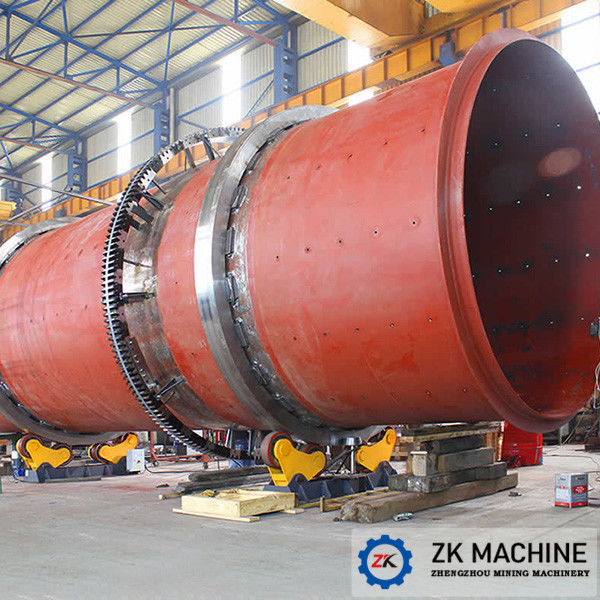

Industrial Sludge Rotary Drying Equipment Easy Maintenance High Production Capacity 1



Our service: Training & Service


Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment,
according to your special demand.
Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators
and finishing the check and accept together with you.



After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with you. We will provide you with the most suitable products with the reasonable price.



Packaging Detail :

The main machinery is in nude packing and spare parts in Wooden or steel box standard export packing, suitable for long distance delivery.

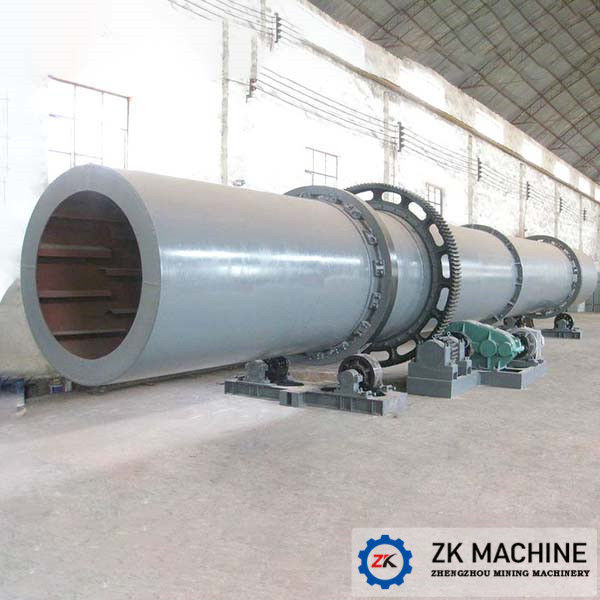

Industrial Sludge Rotary Drying Equipment Easy Maintenance High Production Capacity 2
