5TPH Industrial Rotary Sand Dryer Significant Design High Working Efficiency

5TPH Industrial Rotary Sand Dryer Significant Design High Working Efficiency

  • High Light

    rotary drying equipment

    ,

    rotating drum dryer

  • Condition
    New
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Warranty
    12 Months
  • Capacity
    1-40(t/h)
  • Material
    Lead And Zinc Mineral Raw Material
  • Motor Type
    AC Motor
  • Spare Parts
    Supply All Using Life
  • Voltage
    220V/380V/440
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    Sand Dryer Machine With Various Model
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Export standard container or as customers' requirements
  • Delivery Time
    30 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set / Sets per Month

5TPH Industrial Rotary Sand Dryer Significant Design High Working Efficiency

Hot Sale and Easy Operation Sand Rotary Dryer/5tph Sand Dryer Machine





Sludge Drying Machine Introduction:
Sand rotary dryer is widely used for drying materials in industries like cement, mine, building materials, chemistry, food and fertilizer, etc. This rotary drying machine comes with thermocouples on the feeding and discharging device to control the temperature. Thermometers are also adopted so as to better control the working temperature (generally 350-380°) of the rotary drier.

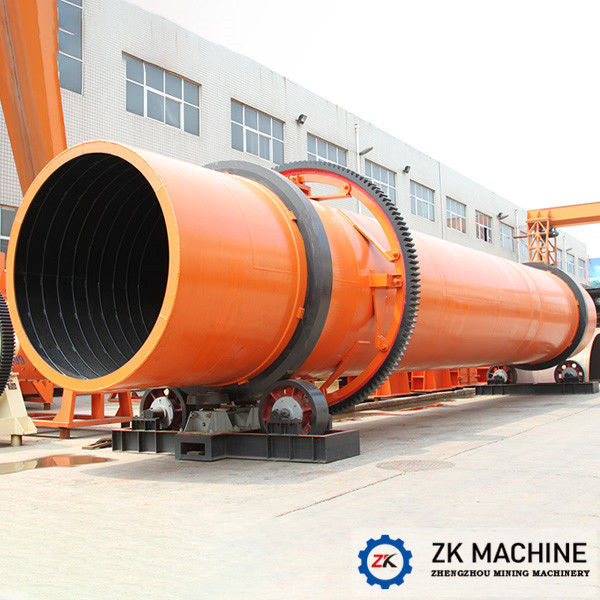

5TPH Industrial Rotary Sand Dryer Significant Design High Working Efficiency 0



Structure of Sand Rotary Dryer:
The sand dryer mainly consists of rotor, shed plate, transmission device, support device, seal ring, and other spare parts. The rotary dryer has the advantages of reasonable structure, excellent manufacture, high output, low energy consumption, convenient operation and so on.

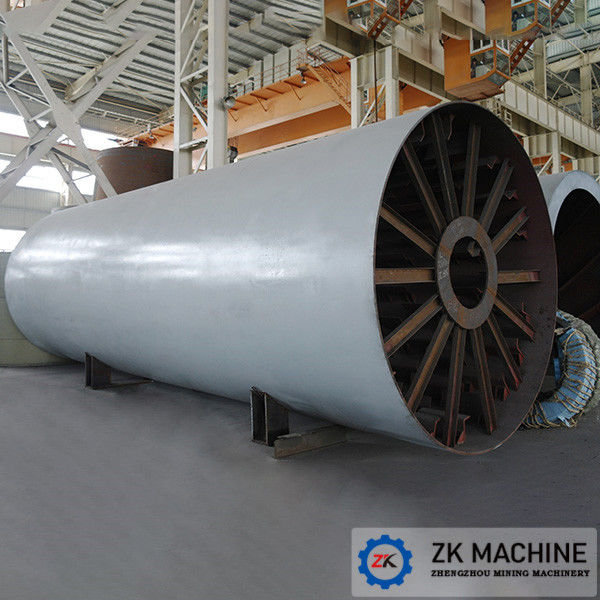

5TPH Industrial Rotary Sand Dryer Significant Design High Working Efficiency 1

Our Advantages of Coal Powder Drying Equipment:
1. Sand dryer is made of wear-resistant manganese plate, 3-4 times wear-resistant than ordinary steel plate. Raw material is with moisture within 15%, and moisture of dried material is lower 0.5-1%. Compared to traditional single cylinder drying machine, its thermal efficiency can be improved about 40% or more.
2. The outside cylinder temperature is lower than 60 degrees, and the waste gas temperature is lower than 120 degrees, and the service life of dust collector bag is more than twice of that of other collector. Coal consumption is one-third of the single cylinder dryer, save electricity 40%, with per ton consumption of standard coal lower than 9 kg.

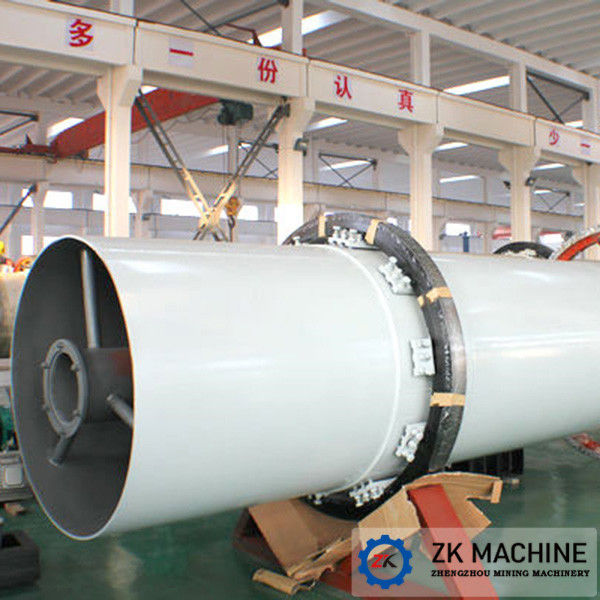

5TPH Industrial Rotary Sand Dryer Significant Design High Working Efficiency 2



Sludge dryer​ Specifications:



specification cylinder Capacity(t/h) motor Power(kw) reducer
D(mm) L(mm) Slope(°) Speed(rpm) model
1212 1200 12000 1.8 5 2-5 Y160LM-6 11 ZQ500
1515 1500 15000 1.8 4.28 4-5 Y160L-6 18.5 ZQ650
1818 1800 18000 1.8 5 6-8 Y200LI-6 22 ZA650
2020 2000 20000 2.0 3.28 7-10 Y200L2-6 30 ZQ650
2222 2200 22000 1.8 2.8 9-14 Y250M-6 45 ZQ650
2424 2400 24000 2.5 2.82 14-16 Y280S-6 55 ZQ750
2626 2600 26000 2.5 2.58 16-18 Y280M-6 75 ZQ850
2828 2800 28000 2.5 2.55 20-22 Y315S-6 90 ZL115
3030 3000 30000 2.5 2.69 22-24 Y315L1-6 132 ZL130
3232 3200 32000 2.5 2.6 24-26 Y315M-4 200 ZSY450
3434 3400 34000 2.5 2.51 26-28 Y315L2-4 315 ZL130
3634 3600 36000 2.5 2.51 30-40 Y315L2-4 315 ZL130
4040 4000 40000 2.5 2.09 40-45 YKK4003-4 400 ZSY630
4242 4200 42000 2.5 2.09 45-46 YKK4005-4 400 ZSY630

Our service: Training & Service

Pre-sale services: enthusiasm

We provide you with the prophase plan, process flow design and manufacturer equipment,

according to your special demand.

Sale services: servant

Send technicians to the jobsite for guiding the installation and adjustment, training operators

and finishing the check and accept together with you.



After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.

In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

Welcome to visit our company and workshop, we sincerely look forward to cooperating with you. We will provide you with the most suitable products with the reasonable price.
