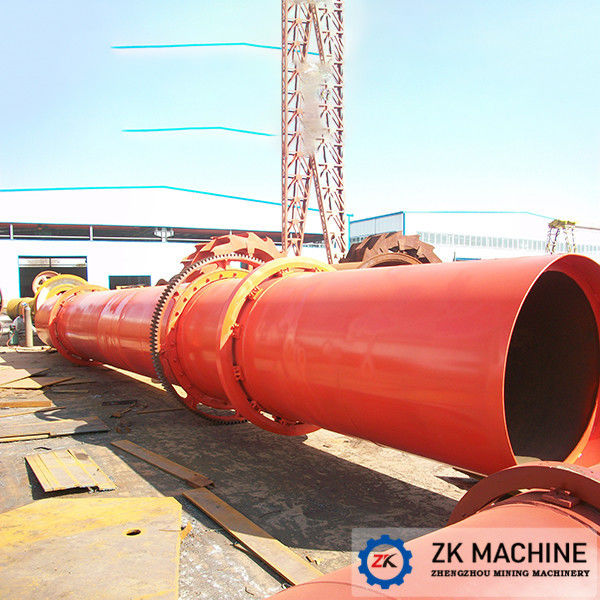

Small Scale Rotary Dryer / Cement Rotary Dryer / Industrial Rotary Dryer Price
Drying Machine Introduction:
Industrial Rotary drying equipment is traditional and reliable drying equipment, the material will be lifted up and fallen down by the lifting plates inside of the cylinder while the cylinder is rotating, the moisture in the material is continuously evaporated when the material contacts with the hot wind inside of the cylinder, to achieve the purpose of drying materials. It is suitable for drying sludge, coal, sand, animal dung, fly ash, clay, coal slime, ore, steel slag, quartz sand, kaolin clay, bentonite, sawdust, desulfurization gypsum, compound fertilizer,etc.
Small Scale Rotary Dryer Performance Characteristics:
1. The operation parameters can be changed according to the different material properties, the material in the dryer cylinder can form stable material curtain, to make the heat exchange more fully;
2. New feeding and discharging device, put an end to the phenomenon of the plug in feeding, incontinuity, nonuniform and material return of traditional dryer, and reduce the load of dust removal system;
3. Counterflow drying method, it can obtain higher evaporation intensity; downstream drying method and indirect drying method are suitable for drying materials which are sensitive to temperature;
4. Fuel can be diesel oil, heavy oil, and natural gas, gas, coal, electricity and biomass particles for environmental protection;
5. It makes use of waste to produce useful product, like fertilizer, concrete aggregate etc. That is to say, this machine is environmental friendly.
Technical Parameters:
specification | cylinder | Capacity(t/h) | motor | Power(kw) | reducer | |||
D(mm) | L(mm) | Slope(°) | Speed(rpm) | model | ||||
1212 | 1200 | 12000 | 1.8 | 5 | 2-5 | Y160LM-6 | 11 | ZQ500 |
1515 | 1500 | 15000 | 1.8 | 4.28 | 4-5 | Y160L-6 | 18.5 | ZQ650 |
1818 | 1800 | 18000 | 1.8 | 5 | 6-8 | Y200LI-6 | 22 | ZA650 |
2020 | 2000 | 20000 | 2.0 | 3.28 | 7-10 | Y200L2-6 | 30 | ZQ650 |
2222 | 2200 | 22000 | 1.8 | 2.8 | 9-14 | Y250M-6 | 45 | ZQ650 |
2424 | 2400 | 24000 | 2.5 | 2.82 | 14-16 | Y280S-6 | 55 | ZQ750 |
2626 | 2600 | 26000 | 2.5 | 2.58 | 16-18 | Y280M-6 | 75 | ZQ850 |
2828 | 2800 | 28000 | 2.5 | 2.55 | 20-22 | Y315S-6 | 90 | ZL115 |
3030 | 3000 | 30000 | 2.5 | 2.69 | 22-24 | Y315L1-6 | 132 | ZL130 |
3232 | 3200 | 32000 | 2.5 | 2.6 | 24-26 | Y315M-4 | 200 | ZSY450 |
3434 | 3400 | 34000 | 2.5 | 2.51 | 26-28 | Y315L2-4 | 315 | ZL130 |
3634 | 3600 | 36000 | 2.5 | 2.51 | 30-40 | Y315L2-4 | 315 | ZL130 |
4040 | 4000 | 40000 | 2.5 | 2.09 | 40-45 | YKK4003-4 | 400 | ZSY630 |
4242 | 4200 | 42000 | 2.5 | 2.09 | 45-46 | YKK4005-4 | 400 | ZSY630 |
