Industrial Dust Cleaning Machine Modular Baghouse

Industrial Dust Cleaning Machine Modular Baghouse

  • High Light

    bag dust collection system

    ,

    industrial cyclone dust collector

  • Product Name
    Industrial Dust Cleaning Machine Modular Baghouse
  • Spare Parts
    Supply All Using Life
  • Circulation Area
    50-220(㎡)
  • Collecting Area
    2300-12000(㎡)
  • Efficiency
    98-99.5(%)
  • Application
    Electricity, Mining, Building, Cement
  • Equipment Condition
    New
  • Installation
    Under Supervision Of Our Engineer
  • Place of Origin
    China
  • Brand Name
    ZK CORP
  • Certification
    ISO,CE
  • Model Number
    Dust Cleaning Machine
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Export standard container or as customers' requirements
  • Delivery Time
    30days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    20 Set / Sets per Month

Industrial Dust Cleaning Machine Modular Baghouse

Industrial Dust Cleaning Machine Modular Baghouse

Industrial Dust Collect Solution:

Our bag type filter is a kind of small and medium-sized pulse jet dust collector. The most high efficient dust removal for your dust prevention circumstance. To adopt pulse blowing dedust and PLC controller, the automatic working can be come true. The advantage is reliable operation, easy maintenance and management. Through our design program and every kind of detectors signal, we can see every parts of the equipment during it working. Our dust collector equipment often can be widely used in cement, metallurgy, electric power, chemical and other industries of dust gas purification and fine powder material recycling collection.

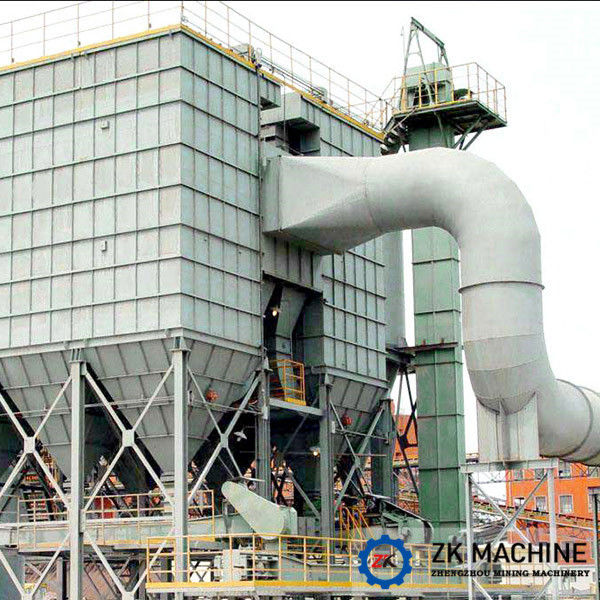

Industrial Dust Cleaning Machine Modular Baghouse 0

Dust Cleaning Machine Structure Composition:

The customized dust catcher are composed by the filter chamber housing, clean air chamber enclosure, filter bag, filter cage, pulse injection device, ash hopper, screw conveyor and discharger, etc. At the end, it needs centrifugal fan for power system. In another type of dust catcher, the dedusting job can be done by every chamber isolation. The every chamber of the pulse and soot cleaning cycle by soot cleaning program controller.

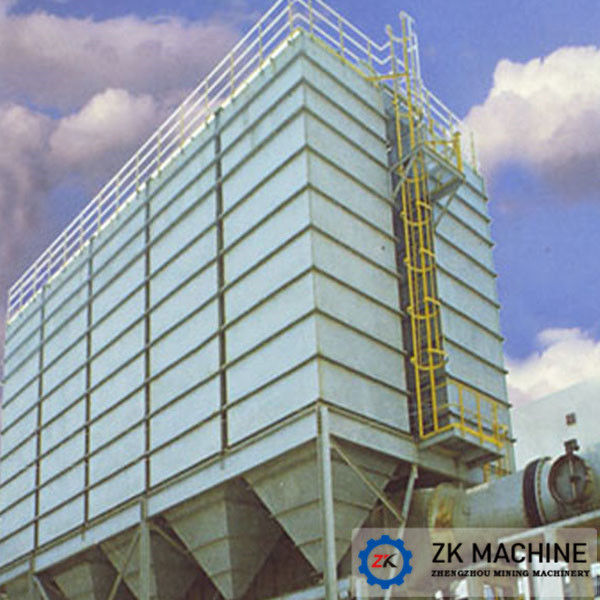

Industrial Dust Cleaning Machine Modular Baghouse 1



Dust Collector Advantages:


GD horizontal electrostatic precipitator is economical and convenient for installation, adjustment and maintenance. It can be widely used for gas filtration in electricity, metallurgy, chemicals, building materials, and other industries.
1. The inside of electric field is maintenance-free, and the maintenance outside external electrical field can be done during running ;
2. Large corona wire stiffness, good discharge performance, can continue to work effectively;
3. Rapping intensity, period, sequence can be adjusted in accordance with the appropriate requirements;
4. High temperature resistance, can work under 450 ℃. Solid structure, nice rapping force transmission, a wide range of applications;



Dust Collector Specifications:



Model


Circulation Area

(㎡)


Collecting Area

(㎡)


Electric Field Height

(m)

Flow Rate

(m³/h)

Electric Field


Dust Collecting Efficiency

(%)

Electric Field Length

(m)

Electrode Spacing

((mm))

Channel

Wind Speed

(m/s)

Weight

( t )

GD40 40 2355 9 115200-172800 3 98-99.7 3×3 400 11 0.8-1.2 116.5
GD45 45 2617 10 129600-194400 3 98-99.7 3×3 400 11 0.8-1.2 128.2
GD50 50 2980 8.35 144000-216000 3 98-99.7 3×3 400 15 0.8-1.2 143.4
GD60 60 3569 10 172800-259000 3 98-99.7 3×3 400 15 0.8-1.2 170.3
GD70 70 4175 11.7 201600-302400 3 98-99.7 3×3 400 15 0.8-1.2 198.6
GD80 80 4746 10.5 230400-345600 3 98-99.7 3×3 400 19 0.8-1.2 224.6
GD90 90 5356 11.82 259000-388800 3 98-99.7 3×3 400 19 0.8-1.2 247.5
GD100 100 5967 13.2 288000-432000 3 98-99.7 3×3 400 19 0.8-1.2 275.1
GD110 110 6566 12 316800-475200 3 98-99.7 3×3 400 23 0.8-1.2 297.3
GD120 120 7113 13 345600-518400 3 98-99.7 3×3 400 23 0.8-1.2 321.3
GD150 150 8023 13 388000-623000 3 98-99.7 3×3 400 28 0.83-0.89 395.6
GD200 200 11050 13 450000-725000 3 98-99.7 3×3 400 28 0.9-1.05 526.4
