Model Number:
ZM Series Bag Filter

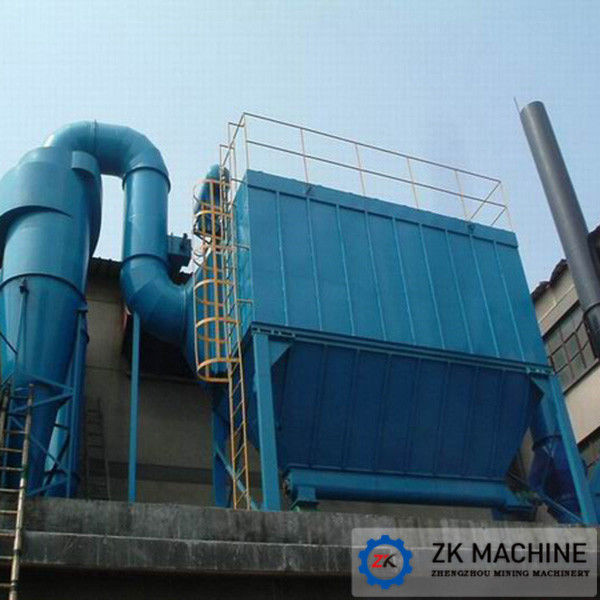

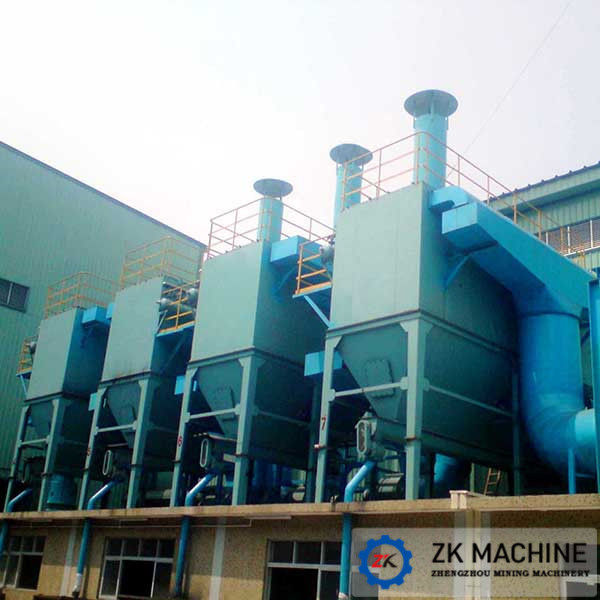

Industrial Dust Filter Baghouse Dust Collector
Baghouse Dust Collector Introduction:
Bag pulse dust filter: High air volume, small floor space, high purification efficiency, reliable work, simple maintenance and so on.The efficiency of dust removal can reach more than 99%, which is a mature and relatively complete efficient dust removal equipment
Baghouse Dust Collector Advantages:
ZM Series Single Pulse Bag Filter (Dust Collector) is widely used in the field of metallurgy, building materials, machinery, chemical industry, mines and other industrial and mining enterpries with purification and recycling of fibrous industrial dust and material.
1. It has the advantage of high cleaning efficiency, high collection efficiency, high air processing capacity, long lifetime of filter bag, easy maintenance and reliable operation.
2. High performance pulse is applied to replace many smaller pulse to reduce the maintenance as much as possible.
3. Available for high density dust containing air collection, for example, O-Sepa separator, the dust content of which will reach 1000g/Nm3.
4. Air tank will reduce the pressure decrease caused by equipment.
Baghouse Dust Collector Specifications:
| Kiln type | Air volume(m3) | Filtration velocity (m/min) | Filter area(m2) | Equipment resistance(pa) | Bag size(mm) | Bag quantity | Cleaning method |
| ZM100 | 6000-7200 | 1-1.2 | 100 | 1200 | Φ130 | 100 | pulse cleaning |
| ZM120 | 7200-8840 | 1-1.2 | 120 | 1200 | Φ130 | 100 | pulse cleaning |
| ZM150 | 8000-10800 | 1-1.2 | 150 | 1200 | Φ130 | 100 | pulse cleaning |
| ZM200 | 12000-14400 | 1-1.2 | 200 | 1200 | Φ130 | 200 | pulse cleaning |
| ZM250 | 15000-18000 | 1-1.2 | 250 | 1200 | Φ130 | 200 | pulse cleaning |
| ZM300 | 18000-36000 | 1-1.5 | 300 | 1200 | Φ130 | 200 | pulse cleaning |
| ZM350 | 21000-42000 | 1-1.5 | 350 | 1200 | Φ130 | 200 | pulse cleaning |
| ZM400 | 24000-48000 | 1-1.5 | 400 | 1200 | Φ130 | 200 | pulse cleaning |
| ZM450 | 27000-54000 | 1-1.5 | 450 | 1200 | Φ130 | 200 | pulse cleaning |
| Model | PPC128-6 | PPC128-9 | PPC128-10 | PPC128-2×6 | PPC128-2×7 | PPC128-2×8 | |
| Volume(m³/h) | 67300 | 100900 | 112100 | 134600 | 157000 | 179400 | |
| Air speed(m/min) | 1.2-2.0(Speed varies at different dust points) | ||||||
| Filtration area(㎡) | 935 | 1402 | 1558 | 1869 | 2181 | 2492 | |
| Net filtration area(㎡) | 779 | 1246 | 1402 | 1713 | 2025 | 2336 | |
| No. of bag(pc) | 768 | 1152 | 1280 | 1536 | 1792 | 2084 | |
| Resistance(Pa) | 1470-1770 | ||||||
| Minus pressure(Pa) | 7000 | ||||||
| Dust content at inlet(g/m³) | ＜1300 | ||||||
| Dust emission(g/m³) | ≤0.1 | ||||||
| Compressed air | Pressure(Pa) | (5-7)×105 | |||||
| Air consumption | 3.6 | 5.4 | 6 | 7 | 8.3 | 9.5 | |
| (m³/min) | |||||||
| Pulse valve | Qty(pc) | 12 | 18 | 20 | 24 | 28 | 32 |
| Size | 2-1/2″ | ||||||
| Elevation valve | Qty(pc) | 6 | 9 | 10 | 12 | 14 | 16 |
| Size(mm) | Valve Φ725,air tank Φ100 | ||||||
| Discharge device YJD-26 | Outlet 300×300mm Capacity 24m³/h | Double flap valve 305×915 | |||||
| Screw conveyor | Model | Dia. Φ300,capacity 21m³/h | N/A | ||||
| Gearbox | XWD2.2-5-1/43,power 2.2Kw | N/A | |||||
| Air slide | Air slide 250mm,flow rate 2.0m³/㎡, Pressure 6860pa,If the dust content exceeds 700g/m³ at inlet, bag filter with big screw conveyor should be considered. | ||||||
| Bag size and material | Dia.×lengthΦ130×3050,Gross weight of polyethylene felt 450g/㎡,temperature 120℃ | ||||||
| Insulation area(㎡) | 125 | 196 | 205 | 223 | 247 | 262 | |
| Total weight(approx.)(Kg) | 24120 | 31680 | 34680 | 43920 | 52680 | 60000 | |
| Note 1: Net filtration area means the area of one chamber during dust removing. | |||||||
| 2: The compressed air consumption is based on supply of compressed air pipe from an air compression station. The consumption should be considered to be 1.3 times more if the supply is provided by an independent air compressor. | |||||||
