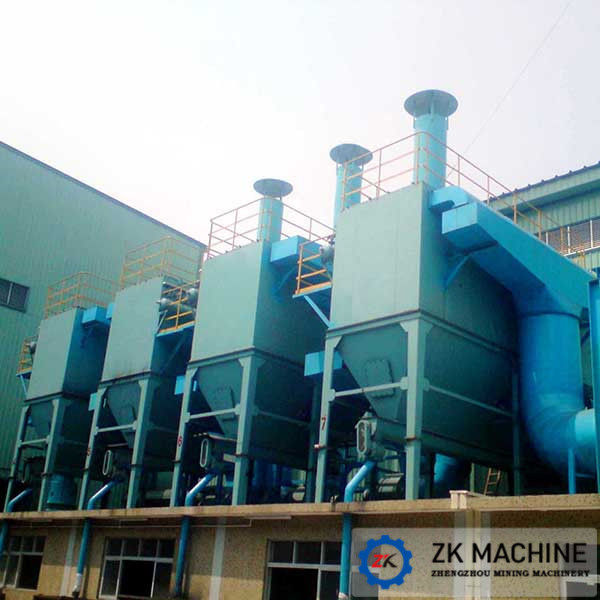

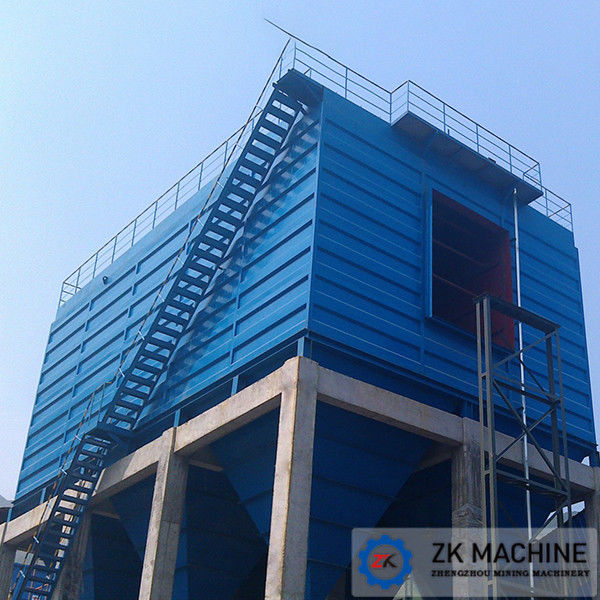

Filter Cartridge Industrial Dust Collection System
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ZK CORP |
| Certification: | ISO,CE |
| Model Number: | Cartridge Industrial Dust Collector |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard container or as customers' requirements |
| Delivery Time: | 30DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 PER MONTH |
|
Detail Information |
|||
| High Light: | bag dust collection system,industrial baghouse dust collectors |
||
|---|---|---|---|
Product Description
FORST Filter Cartridge Industrial Dust Collector
Dust Collector General Introduction:
1) The cartridges are installed horizon.
2) Offer high efficiency with our air filter cartridges
3) Tool-free hole cap can be disassembled or replaced
4) Choose the proper air filter cartridge according to the property of dust.
Dust Collector Construction:
1) Material: Carbon steel or stainless steel
2) Installed with pulse valves and control system
3) Block building structure, can be constructed to handle the required airflow
Application:
1) Welding fume, foundry
2) Food, pharmaceutical
3) Shot blasting
4) Tobacco, metal, painting
5) Energy
FORST Filter Cartridge Industrial Dust Collector:
1. Horizontally installed cartridges.
2. High efficiency.
3. Material—carbon steel or stainless steel.
4. Block building structure, can be constructured to handle the required airflow.
5. Suitable air filter cartridges installed according to dust properties.
6. Completed with pulse jet valves and control systems.
Dust Collector Specifications:
| Model | Bag Qty(pcs.) | Filtration Area (m2) |
Air Speed (m/min) |
Air Volume (m3/h) |
Pressure Drop (Pa) |
Dimension (L×W×H) (m) |
|
|
Positive Pressure |
TFC-5200 | 529 | 5200 | ＜1.0 | 312000 | ＜1800 | 16.05×8.2×26.3 |
| TFC-7800 | 888 | 7800 | 468000 | 23.85×8.2×26.3 | |||
| TFC-10400 | 1184 | 10400 | 624000 | 16.05×16.4×26.3 | |||
| TFC-13000 | 1480 | 13000 | 780000 | 23.85×16.4×26.4 | |||
| TFC-15600 | 1776 | 15600 | 936000 | 31.65×16.4×26.3 | |||
| Negative Pressure | TFC-4000 | 448 | 4000 | 240000 | 11.1×15.6×24.8 | ||
| TFC-6000 | 672 | 6000 | 360000 | 15.65×15.6×24.8 | |||
| TFC-8000 | 860 | 8000 | 480000 | 20.2×15.6×24.8 | |||
| TFC-10000 | 1120 | 10000 | 600000 | 24.7×15.6×24.8 | |||
| TFC-12000 | 1344 | 12000 | 720000 | 29.25×15.6×24.8 | |||
| GFC-280-4 | 336 | 1120 | 67200 | 7.64×3.647×15.31 | |||
| GFC-280-5 | 420 | 1400 | 84000 | 9.58×3.647×15.30 | |||
| GFC-280-6 | 504 | 1680 | 100800 | 11.52×3.647×15.16 | |||
| GFC-280-8 | 672 | 2240 | 134400 | 7.64×7.29×15.36 | |||
| GFC-280-10 | 840 | 2800 | 168000 | 9.58×7.29×15.36 | |||
| GFC-280-12 | 1008 | 3360 | 201600 | 11.52×7.29×15.34 | |||
| GFC-230-4 | 264 | 920 | 55200 | 7.64×3.05×15.08 | |||
| GFC-230-5 | 330 | 1150 | 69000 | 9.58×3.05×15.08 | |||
| GFC-230-6 | 396 | 1380 | 82800 | 11.53×3.05×15.8 | |||
| GFC-230-8 | 528 | 1340 | 110400 | 7.64×5.9×15.08 | |||
| GFC-230-10 | 660 | 2300 | 138000 | 9.58×5.9×15.08 | |||
| GFC-230-12 | 792 | 2760 | 165600 | 11.52×5.9×15.08 | |||
| GFC-140-4 | 160 | 560 | 33600 | 3.75×3.53×15.16 | |||
| GFC-140-6 | 240 | 840 | 50400 | 5.70×3.53×15.16 | |||
| GFC-140-8 | 280 | 1120 | 67200 | 7.64×3.53×15.16 | |||
| GFC-140-10 | 320 | 1400 | 8400 | 9.58×3.53×15.16 | |||
| GFC-140-12 | 480 | 1680 | 100800 | 11.52×3.53×15.16 | |||
| GFC-83-6 | 144 | 498 | 29880 | 4.3×3.5×13.9 | |||
| GFC-83-8 | 192 | 664 | 39840 | 5.64×3.5×13.9 | |||
| GFC-83-10 | 240 | 830 | 49800 | 7.1×3.5×13.9 | |||
| GFC-83-12 | 288 | 996 | 59760 | 11.5×3.5×13.9 | |||
