Industrial Dust Collection Equipment , Long Bag Dust Collection System

Industrial Dust Collection Equipment , Long Bag Dust Collection System

  • High Light

    bag dust collection system

    ,

    industrial cyclone dust collector

  • Product Name
    Impulse Bag Dust Collector / Industrial Dust Collection Systems
  • Condition
    New
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Warranty
    12 Months
  • Capacity
    1360-16670(㎡)
  • Material
    Metallurgy, Construction, Chemical And Etc.
  • Motor Type
    AC Motor
  • Spare Parts
    Supply All Using Life
  • Voltage
    220V/380V/440
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    ZL340/ZL920
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Export standard container or as customers' requirements
  • Delivery Time
    30 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set / Sets per Month

Industrial Dust Collection Equipment , Long Bag Dust Collection System

Long Bag Dust Collector / Industrial Dust Collection Systems



Dust Collection Introduction:

ZL series Long Bag Pulse Dust Collector is a new type and high efficient bag filter that develops from the common short bag fpulse bag filter. It has the features like bigger air volume, stronger dust cleaning ability, high efficiency, easy operation and maintenance and etc. It is suitable for dusty air cleaning and maerial dust collecting in the industries like metallurgy, construction, chemical and etc.

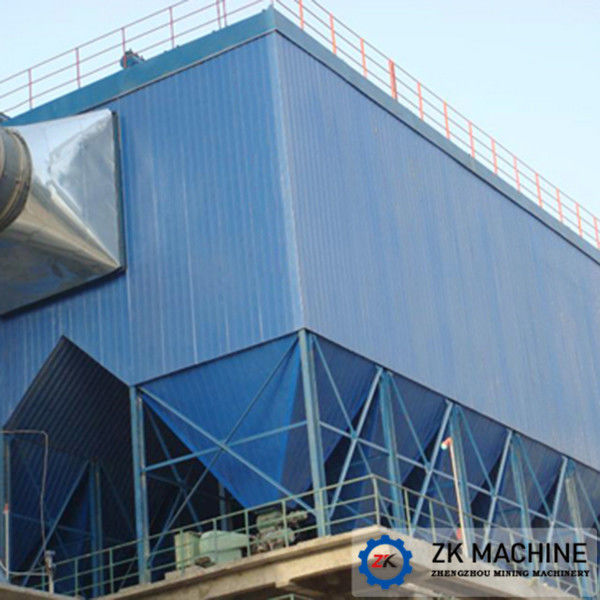

Industrial Dust Collection Equipment , Long Bag Dust Collection System 0



Application of Bag Pulse Dust Collector:

It is suitable for dusty air cleaning and maerial dust collecting in the industries like metallurgy, construction, chemical and etc.

Structure

ZL series Long Bag Pulse dust collector is mainly composed of upper box, middle box, ash bucket, supporting legs, filtering bag and blowing device, ash discharging device. The features of this structure are:

1. Upper box is devided into thousands chambers. In order to realize off-line cleanign dust and maintenance, each chamber has equipment 1 lifting valve.

2. Pneumatic vent valve is controlled by air cylinder. The advantages are realiable operation, fast speed of on/off, without any leakage of air.

3. Compared with horizontal installation, the vertical installation fo pneumatic vent valve is easier during maintenance.

4. Filtering bag is self-locked and sealed on the board holes by the flexible ring on the bag. This can gurantee low emission density and easy for installation and replacement.

5. Optimized injection short tube can gurantee perfect dusting cleaning performance.

6. Safety guard and walking platform are equipped for regular maintenance.

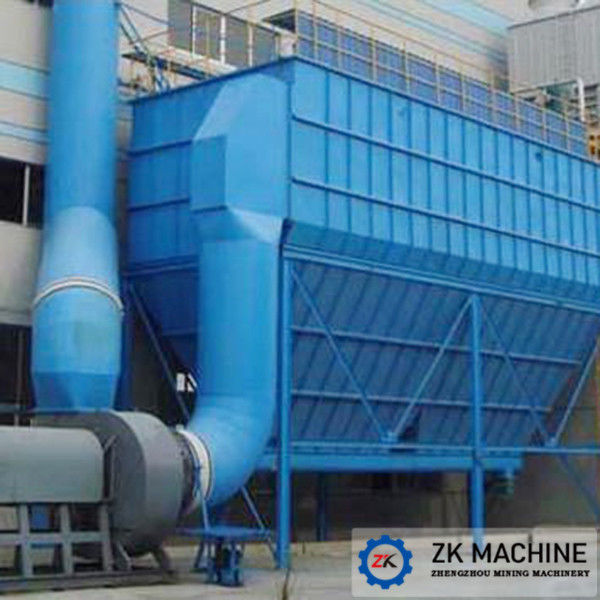

Industrial Dust Collection Equipment , Long Bag Dust Collection System 1



Bag Pulse Dust Collector Advantages:

1. Advanced thin type lifting valve and off-line dust cleaning device can gurantee to collect the dust completely.

2. Reasonable design for air inlet evenly flow tube and dust hopper discharging device. This can resolve the problem the uneven air flow of each chamber.

3. Bigger volume air bag can be suitable for both high pressure and low pressure air supply.

4. Spring increase type is adopted on the top of filtering bag. It has the advanages like good sealing performance, easy and fast bag replacing, bag replacing outside the bag filter.

5. Design of filtering bag is different according to different industry and application. The fabrication standards are increased at approx. 50% based on the industry standard.

6. Solenoid pulse vale adpots high quality raw materia. Its mebrane has longer using life.

7. Control system adpots advanded controller. It has 3 controlling methods: pressure difference, timing and manual. Offline valve, pulse valve and ash discharging valve are auotmatically controlled by the system.

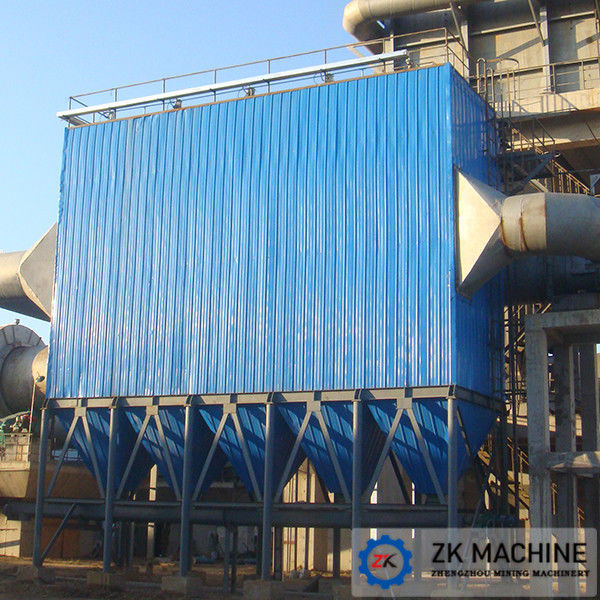

Industrial Dust Collection Equipment , Long Bag Dust Collection System 2



Technical Parameters of Long Bag Pulse Dust Collector:



Kiln type Air volume(m3) Filtration velocity (m/min) Filter area(m2) Equipment resistance(pa) Bag size(mm) Bag quantity Cleaning method
ZM100 6000-7200 1-1.2 100 1200 Φ130 100 pulse cleaning
ZM120 7200-8840 1-1.2 120 1200 Φ130 100 pulse cleaning
ZM150 8000-10800 1-1.2 150 1200 Φ130 100 pulse cleaning
ZM200 12000-14400 1-1.2 200 1200 Φ130 200 pulse cleaning
ZM250 15000-18000 1-1.2 250 1200 Φ130 200 pulse cleaning
ZM300 18000-36000 1-1.5 300 1200 Φ130 200 pulse cleaning
ZM350 21000-42000 1-1.5 350 1200 Φ130 200 pulse cleaning
ZM400 24000-48000 1-1.5 400 1200 Φ130 200 pulse cleaning
ZM450 27000-54000 1-1.5 450 1200 Φ130 200 pulse cleaning

Remarks:
1. The processing air volume in above table is calculated based on 1.0-1.5m/min, it can be adjusted if customer has some requriements.
2. The filter area is based on bag length 6m, it can be adjusted if customer has some requriements to reduce or increase bag length, thus reduce or increase filter area.
