Small Footprint Industrial Cyclone Dust Collector And Bag Filter Simple Structure

Small Footprint Industrial Cyclone Dust Collector And Bag Filter Simple Structure

Product Details:

Place of Origin: China
Brand Name: ZK
Certification: CE ISO Certification
Model Number: According to different models

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export standard container or as customers' requirements
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set / Sets per Month
Get Best Price Contact Now

Detail Information

Product Name: Small Footprint Industrial Cyclone Dust Collector Condition: New
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 12 Months
Volume: 1500-105000(m3/h) Material: Lead And Zinc Mineral Raw Material
Motor Type: AC Motor Spare Parts: Supply All Using Life
Voltage: 220V/380V/440
High Light:

bag dust collection system

,

industrial cyclone dust collector

Product Description

Industrial Cyclone Dust Collector And Bag Filter With Reasonably Price

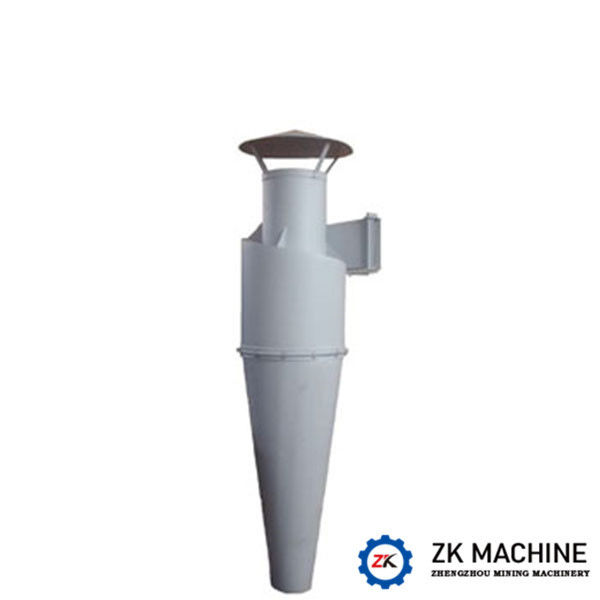

Cyclone Dust Collector Introduction:

XFCC series cyclone dust collector also called the centrifugal dust collector, it is mainly used for removal of the dust of the industrial waste gas with high density non-fabrous and cohesiveness. It is used in ventilation dust removal and material recycling system of mining, metallurgy, refractory, coal, chemical and electric power industries, especially suitable for the initial purification for high temperature flue gas.



Small Footprint Industrial Cyclone Dust Collector And Bag Filter Simple Structure 0



Application of Cyclone Dust Collector:

It is used in ventilation dust removal and material recycling system of mining, metallurgy, refractory, coal, chemical and electric power industries,

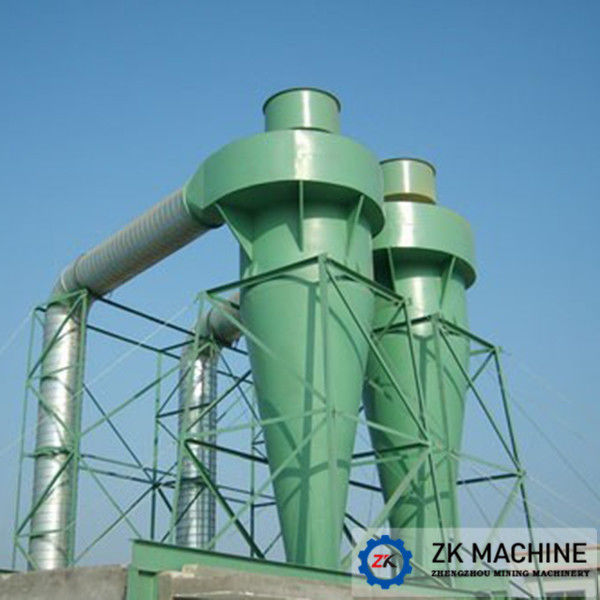

Industrial Cyclone Dust Collector Structure:

XFCC cyclone dust collector is mainly composed of inner cylinder, cylinder, cone tube, spiral case, etc.

Small Footprint Industrial Cyclone Dust Collector And Bag Filter Simple Structure 1



Dust Collector Cyclone,Bag Filter Advantages As Followings:

1.Suitable for purification the dust with big density, and particle size above 5 micron; not suitable for purification the dust with strong cohesiveness.

2. No moving parts, easy to management and maintenance.

3. Under the same air volume processing, it small volume, simple structure and low cost.

4. Many set machines work together in parallel with same air volume processing, small volume, simple structure and low cost.

5. It can be resisted 400℃ high temperature, if adopts special high temperature resistance material, it will resist higher temperature than 400℃.



Small Footprint Industrial Cyclone Dust Collector And Bag Filter Simple Structure 2



Specifications:



Specification XD-Ⅱ-0.5 XD-Ⅱ-1 XD-Ⅱ-2 XD-Ⅱ-4 XD-Ⅱ-6 XD-Ⅱ-10 XD-Ⅱ-20 XD-Ⅱ-35
Boiler(t/h) 0.5 1 2 4 6 10 20 35
Exhaust Gas Volume (m3/h) 1500 3000 6000 12000 18000 30000 60000 105000
Collection efficiency(%) >95
Pressure drop(Pa) <900
Cut diameter 3.05
Weight 310 570 960 1900 2910 6100 11750 20300
Cyclone dust collector has simple structure, no moving parts, no special auxiliary equipment, small footprint, less investment in manufacturing and installation.

The operation and maintenance of cyclone dust remover is simple, and the power consumption in the pressure loss is small, the operation and maintenance costs are low, and the dust with greater than 10 mu m has a higher separation efficiency.
