Place of Origin:
China
Brand Name:
ZK
Certification:
CE ISO Certification
Model Number:
ZM100-ZM450

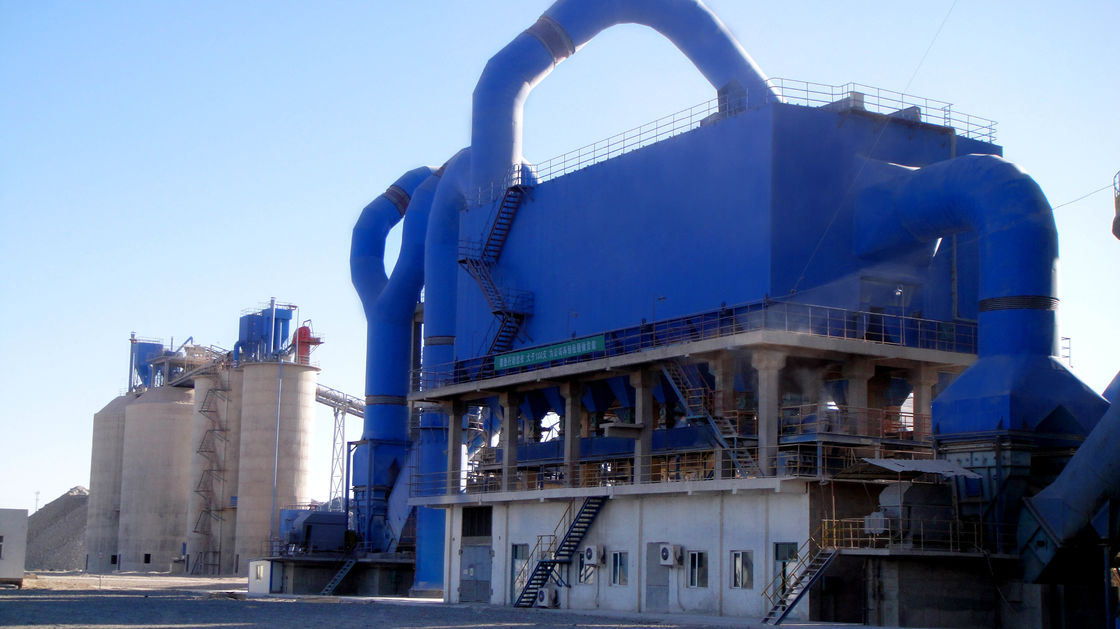

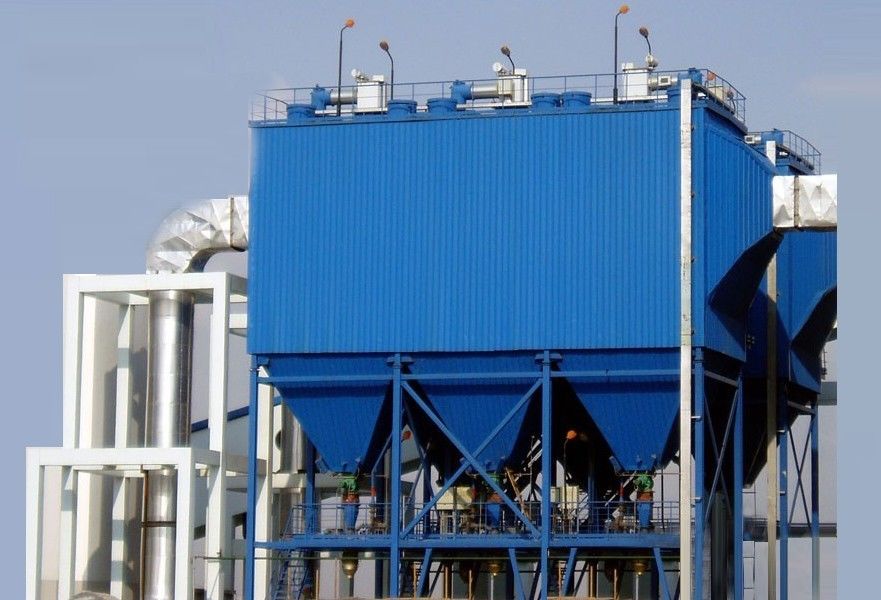

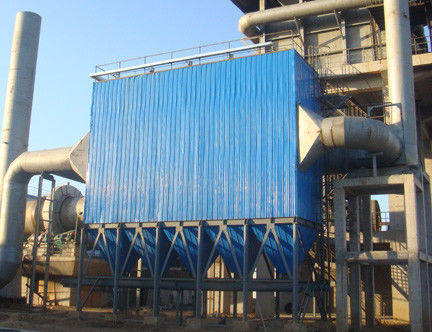

New Bag Filter in Cement Industry / Bag Filtes Manufacturers / Bag Filte Dedusting System
Bag Filter is widely applied for dust collection applications in mining industry, chemical industry, pharmaceutical industry, and the production of flour, glass, metallurgy, mine, cement, building materials, etc. The bag filter is made up of the top chest, middle chest, bottom chest, dust exhauster, and jet cleaning system. There is spray tube and air outlet at the top chest. The middle box consists of perforated plate, venturi tube, filter bag, keel, pulse valve and gas cleaning system. The bottom chest is comprised of ash bucket, air inlet, access door, ash exhauster (which is composed of rotary dust valve or spiral conveyer)
It could be made of carbon steel or stainless steel upon request. Dust collector is generally used with a temperature less than 120°C. Customized dust collector for usage at high temperatures (less 230°C) is also available.
Bag Filter structure
Bag filter is composed of supporting structure, dust bucket, middle box, upper box, filter bag, frame, injection and clean device, PLC control system. Middle box has many compartment, when working, the air content dust will injected to each dust hopper, The big size dust will drop in the bottom of the bucket due to lower air speed and impact by bucket. The fine size dust will float to each bags, and separate at outside of the bags, then drop to the bottom hopper, the cleaned air will release air through the exhaust pipe.
Technical specifications
| Model | ZL600 | ZL800 | ZL1000 | ZL1600 | ZL2400 | ZL2800 |
|
Dispose air volume (m3/h) |
28800-43200 | 38400-57600 | 48000-72000 | 76800-115200 | 115200-172800 | 134400-201600 |
| Filtrate wind speed(m/min) | 0.8-1.2 | 0.8-1.2 | 0.8-1.2 | 0.8-1.2 | 0.8-1.2 | 0.8-1.2 |
|
Filtratearea (m2) |
600 | 800 | 1000 | 1600 | 2400 | 2800 |
| Room number | 3 | 4 | 5 | 8 | 12 | 14 |
|
Equipment- Resistance (Pa) |
1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Filter pocket specification(mm) | φ130×5150 | φ130×5150 | φ130×5150 | φ130×5150 | φ130×5150 | φ130×5150 |
| Bag number | 288 | 384 | 480 | 768 | 1152 | 1342 |
| Temerature(℃) | <230℃ | |||||
| Cleaning stype | Off-line pulse cleaning | |||||
| Systemins-talvolum(kw) | 100 | 140 | 185 | 260 | 380 | 430 |
