FMS Air Dust Filter Socks Cement Industry Bag Filters For Dust Collector
Product Details:
Place of Origin: | Zhengzhou,Henan |
Brand Name: | ZK CORP |
Certification: | ISO,CE |
Model Number: | bag filters |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | 8 pcs/ CTN, paper carton , carton size: 43*38*38cm |
Delivery Time: | 30days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 Per Week |
Detail Information |
|||
Product Name: | FMS Air Dust Filter Socks Cement Industry Bag Filters For Dust Collector | Type: | Pocket Filter, Pulse Jet |
---|---|---|---|
Model: | Thickness (mm):1.8±10%-3.5±10% | Usage: | Dust Filter |
Material Of Bag: | FMS | Condition: | New |
After-sales Service Provided: | We Offer | Solution: | Customized |
High Light: | bag dust collection system,industrial cyclone dust collector |
Product Description

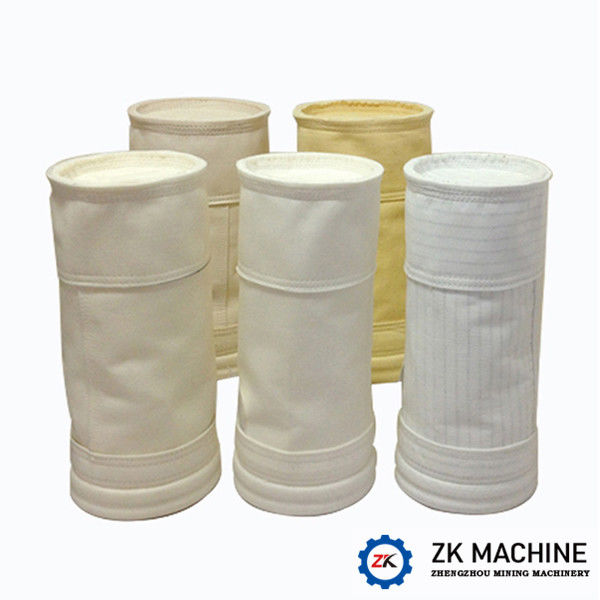

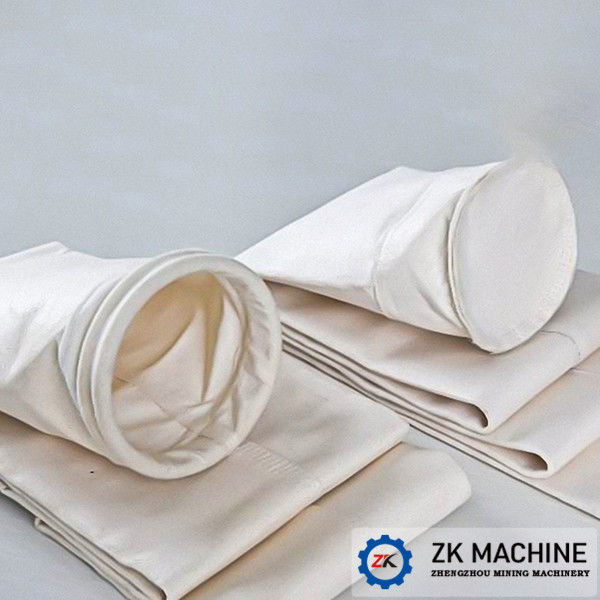

Filter bag is the key part for bag filter operation process, normally the cylinder shaped bags are vertically hanging inside of bag filter. For impulse bag filter, dust is attached to outside surface of bag, when the dusty gas go through bag filter, dust is collected and gathered on the outer surface of bag, and clean air goes through bag and exhaust open air. The bag cage is inside bag for supporting. It can preventing bag fall down. And it also can use to clean dust cake and re-distribution.
Dust Filter Bags Structure:
Filter material use fiber, which has cotton fiber, wool fiber, synthetic fiber and glass fiber etc.
Fluorine Gomez by mixing two or more high-temperature fiber combed through acupuncture layered composite made with three holes into a highly efficient filter material temperature, high temperature, corrosion resistance, easy cleaning and long life. After chemical treatment with different surface finishing technology, also has a water repellent and oil, high speed, high concentrations of dust trapping characteristics, wear bending resistance than glass fiber needle felt filter bag.
1. Normal filter material is 208 and 901 dacron, its operation temperature does not exceed 120℃, however, operation temperature of glass fiber bag is not more than 250℃.
2. Cotton fabric normally used for dusty gas without corrosivity and temperature below 80-90℃.
Filter Bags Main Features:
1) Free sample is available for quality test before order.
2) The lifetime of qualified bag can last from two years to six years under the condition of reasonable usage.
3) Has the special advantages of low price,high temperature resistant.
4) Functional treatment: PTFE impregnation, coating, laminating and so on.
5) Suitable for pulse dust cleaning and high speed wind counter blowing and other kinds of bag type dust collector
Specifications:
Name | Material | Gram Weight (g/㎡) |
Thickness (mm) |
Property m³/㎡·min |
Breaking Strength (N/5×20cm) |
Breaking Elongation(10%) | Operate Temperature (℃) |
||
Warp | Weft | Warp | Weft | ||||||
Polyester needle-felt filer bag | Polyester/polyester filament fabric | 500±5% | 1.8±10% | 12 | >1200 | >1600 | <30 | <45 | ≤130 |
Polyester anti-static needle felt filter bag | Polyester/polyester antistatic fabric | 500±5% | 1.8±10% | 12 | >1000 | >1600 | <30 | <45 | ≤130 |
Medium temperature needled felt filter bag | Dacron, PPS/glass fiber woven fabric | 700±5% | 2.2±10% | 8-12 | >1000 | >1500 | <10 | <10 | ≤170 |
Polypropylene filber needled felt filter bag | PP, PP Yarn | 500±5% | 2.1±10% | 12 | >960 | >1060 | <35 | <55 | ≤90 |
FMS filter bag | Aramid fiber, glass fiber/glass fiber cloth | 800±5% | 2.4-3.0 | 8-15 | >1800 | >1800 | <10 | <10 | ≤260 |
Nomex needle-felt filter bag | Nomex/ nomex fabric | 500±5% | 2.2±10% | 17 | >800 | >1200 | <35 | <55 | ≤200 |
PPS needle-felt filter bag | PPS/PPS filament fabric | 500±5% | 1.8±10% | 15 | >1200 | >1300 | <30 | <30 | ≤190 |
P84 needle-felt filter bag | P84/P84 fabric | 850±5% | 3.5±10% | 8-15 | >1800 | >1800 | <10 | <10 | ≤220 |
Glass fiber needle-felt filter bag | Glass fiber | 900±5% | 2.0±10% | 8-15 | >1800 | >1800 | <10 | <10 | ≤300 |
